What Is a Pier and Beam Foundation?

What is a pier and beam foundation? It is a foundation that holds the house above the ground instead of on it: concrete or masonry piers rise from footings in the soil, wood beams run across the piers, floor joists run across the beams, and the floor you walk on sits on top of all that, with an open crawl space underneath. Most houses built in Central Texas before about 1960 stand on some version of it, and most houses built after stand on a concrete slab. The short version of the trade: a pier and beam house is the most inspectable and most repairable structure in this business, in exchange for a dark, damp-prone space under the floor that has to be kept dry. The cutaway above shows every part; the rest of this page explains what each one does, how to tell whether you have one, and what the answer means for your wallet.

The parts, from the soil up

Start at the bottom of the drawing. Each pier stands on a footing pad, a wide base that spreads the house's weight into the soil the way a snowshoe spreads yours into snow. The pier itself is the vertical post, historically brick, cedar, or stacked concrete block, in newer work a poured or pressed concrete column. On top of each pier sit shims, thin steel or hardwood wedges that fine-tune the height; they are the adjustment mechanism for the whole house, and re-leveling a pier and beam home is largely the art of resetting them. The sill beams, heavy timbers running pier to pier, are the first wood in the stack and carry the load-bearing walls. Floor joists cross the beams on closer spacing and carry the floor itself; subfloor decking goes over the joists, finished floor over that. Around the outside edge, a proper pier and beam house adds one more member: a continuous concrete grade beam at the perimeter, a low wall in the soil that carries the exterior walls and closes the crawl space off from the weather. The crawl space in the middle of all this is not wasted volume. It is the access corridor for every pipe, duct, and wire under the house, and it is the reason repairs on these homes so often cost a fraction of slab work.

Pier and beam vs block and base

You will hear an older cousin mentioned around here: block and base. The distinction is the perimeter. A block and base house has no continuous grade beam; the outside walls stand on the same free-standing pads and blocks as the middle of the house, so the entire structure rests on points. It is the simplest foundation ever put under a Texas house, common under smaller and older homes across the corridor, and it has one genuine virtue: everything is adjustable, so a careful crew can re-level one almost indefinitely. The trade is that a perimeter on points moves a little more freely than a perimeter on a continuous beam, and skirting on a block and base home is purely cosmetic rather than structural. If you peer under your house and see daylight between separate blocks along the outside edge, you have block and base; if you see a continuous concrete wall at the perimeter with piers only in the middle, you have true pier and beam. The repair trade treats them nearly identically, which is why both land on our pier and beam repair page.

How to tell if your house has one

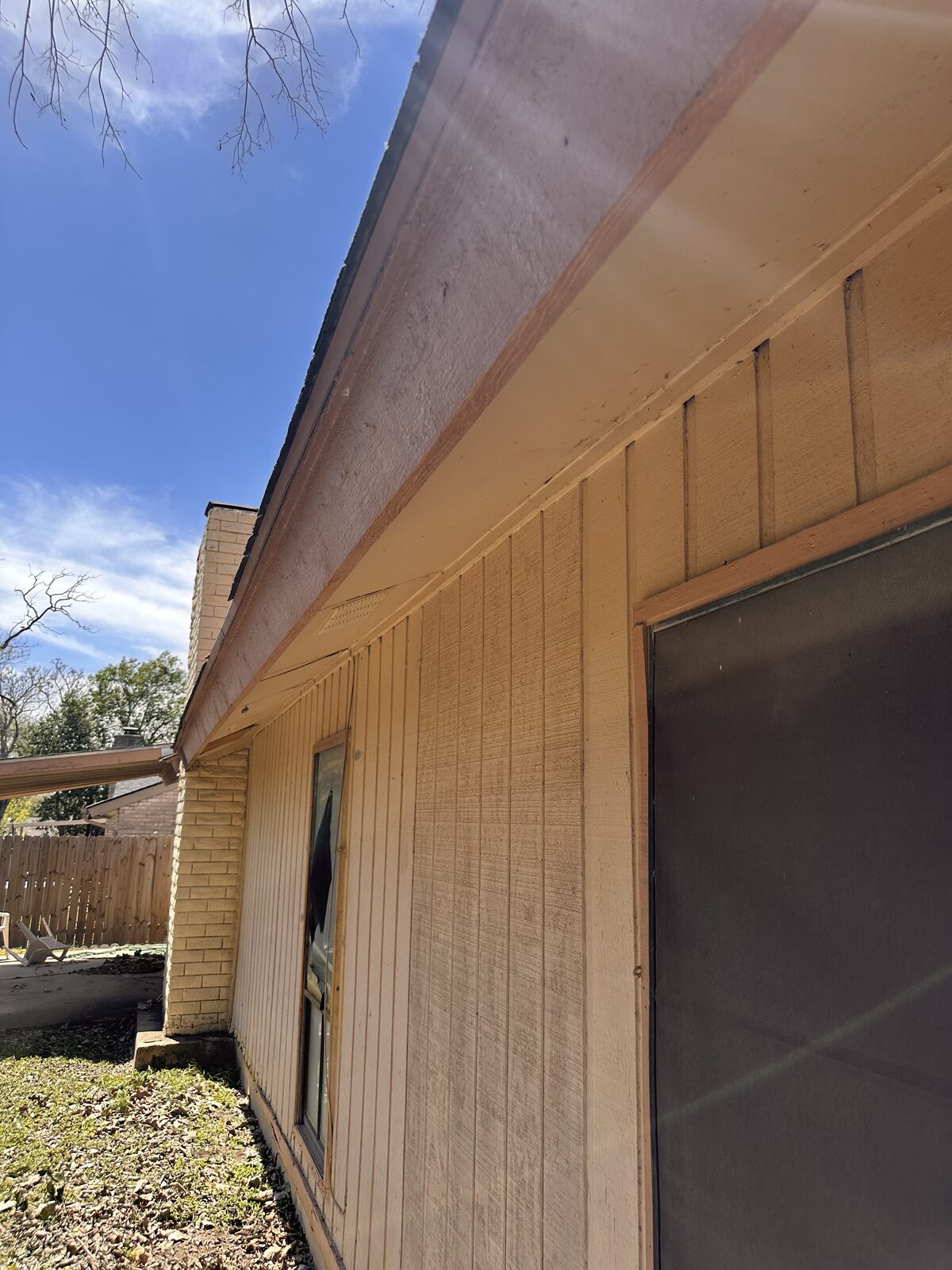

Three checks settle it in five minutes. First, the step test: pier and beam houses sit a step or more above the yard, because the floor is built above a crawl space; slab houses sit nearly flush with the grade. Second, the base of the walls outside: look for vents, lattice, skirting boards, or a small access door low on the house. Those openings exist to let the crawl space breathe, and a slab has no crawl space to ventilate. Third, the floor itself: walk a room and feel for the slight give of wood framing, or knock and listen for the hollow carry of a joist bay; concrete under the finish feels dead and sounds solid. Houses that have been remodeled can disguise the clues, and additions sometimes put a slab room on a pier and beam house, so when the evidence conflicts the crawl space access door is the tiebreaker. The full comparison, including how each type fails on clay and what each costs to fix, is in pier and beam vs slab foundations; this article's job is the anatomy, and that one's job is the choice.

Which Central Texas houses stand on piers

The dividing line in this corridor is roughly 1960, when production builders switched to slabs for cost and speed. That makes pier and beam the signature of the historic cores. In San Antonio: Monte Vista, Beacon Hill, King William, Lavaca, and Mahncke Park, where the pre-1960 stock is largely on piers. In Austin: Hyde Park, Crestview, Travis Heights, and Bouldin, the bungalow belts built between the 1920s and the 1950s. In the smaller towns the pattern is the same wherever the old grid is: the Victorian and early-1900s blocks around Seguin's courthouse square and Texas Lutheran University, the older streets of San Marcos and New Braunfels near their centers. All of it stands on the same soil story, deep Blackland clays like the Houston Black series across the blackland stretches and thinner soils over limestone toward the Hill Country edge, and the clay is exactly why these houses have needed periodic attention underneath for as long as they have existed. A pier standing in the top few feet of expansive clay rides the wet-dry swing of that clay, which is why the crawl-space walkthrough in our maintenance guide is a twice-a-year habit worth having.

Pros and cons against a slab, honestly

Neither column wins outright, and anyone who tells you one type is simply better is selling something. On expansive clay each fails in its own dialect: slabs settle at edges and corners as the perimeter soil swings, and pier and beam homes sag where moisture or time has gotten to the wood. The difference that matters to your wallet is repairability, and there pier and beam has the honest edge. When something goes wrong under a crawl-space house, a person can crawl to it, see it, and fix it with carpentry and jacks; the same complaint on a slab starts with excavation.

What goes wrong, and what fixing it looks like

The failure list for pier and beam homes is short and consistent: crawl space moisture rotting sills and beam ends, shims working loose or crushing, individual piers settling in drought-shrunk clay, and floors sagging over spans where decades of load have taken the camber out of a beam. Every one of those has a crawl-space-level fix, from re-shimming to sistered beams to replacement piers, and the ranges are published in our pier and beam repair cost guide. The symptom-by-symptom read lives in signs a pier and beam foundation needs repair, and the prevention program, which is mostly about water, is the crawl space moisture story. If you have just learned your house stands on piers and want a baseline, a free inspection with a floor elevation survey maps exactly where the floor sits today, and about a third of our inspections end with no repair needed. On these houses especially, a dated map and a dry crawl space are most of what ownership requires.
