Steel and concrete in one pier

Hybrid piers: built for the soil Central Texas actually has.

A driven steel starter reaches firm material and proves it under pressure. Concrete sections with rebar complete the column. Middle-ground cost, measured-not-guessed depth, when the inspection says it fits.

Is Hybrid Right for My Soil?(210) 816-0034

Financing available through Acorn Finance. Check your rate in minutes, no credit-score impact →

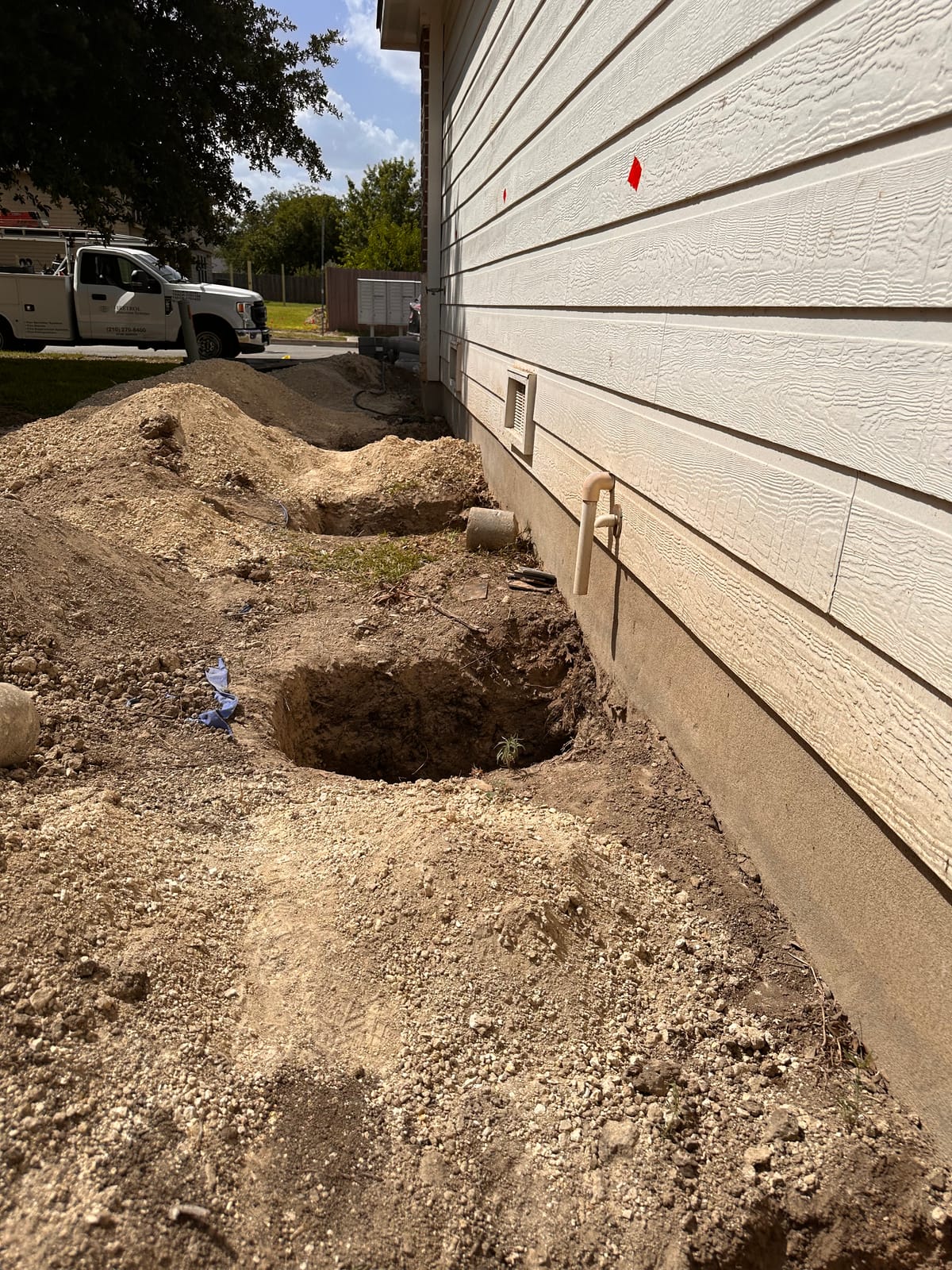

Excavation pits opened along a home's foundation perimeter in preparation for hybrid pier installation — Perimeter pits opened along the foundation. Hybrid piers start with a steel starter section, then build with concrete where the soil allows.

Best-fit scenarios

Three situations where hybrid wins.

FIT 1

Clay too deep for concrete alone

The steel starter punches through the soft upper profile to firm material; the concrete stack rides on that proof instead of floating in active clay.

FIT 2

Budget can't reach full steel

You get steel where steel matters, at the bearing end, and economical concrete through the depth that just needs column, not penetration.

FIT 3

Mixed soil along one foundation

Where refusal depth varies wall to wall, hybrids adapt pier by pier: deeper starters where the clay demands, shorter where it doesn't.

Limitations, read these too

Not a substitute for full steel under heavy two-story masonry loads, and we'll measure, not assume.
Needs verifiable firm resistance for the starter; in very deep soft profiles, full steel is the right call.
Like every method here, it's chosen from the elevation map, never from the brochure.

Side by side

Where hybrid sits between the two.

Full detail on the rest of the family: steel piers, the write-up on why we no longer install concrete piers, plus the homeowner's comparison guide and the pier-count math behind every quote. Wondering how a hybrid stacks up against the screw-in kind? See push piers vs helical piers.

COMPARE	Steel piers	Concrete + rebar	Hybrid piers
Depth	Deepest, driven to verified refusal	Pressed to practical refusal in suitable soils	Steel starter depth + concrete stack
Proof of bearing	Hydraulic pressure readings at every pier	Press resistance during install	Pressure readings on the steel starter
Relative cost	$$$	$	$$
Best suited for	Heavy structures, deep active clay, prior failed repairs	Lighter slabs in stable soil; in active clay it often stops short of bearing strata	Middle ground, depth where soil demands it
Install speed	Fast, no curing	Fast, no curing	Fast, no curing
Warranty	Lifetime, transferable	No longer installed by Motmot	Lifetime, transferable

Hybrid and steel are the two pier systems Motmot installs today. Standalone concrete pilings came off the lineup in 2026 because they usually cannot be pressed through the full depth of active clay to load-bearing strata. The concrete sections in a hybrid are a different story, since they ride on a driven steel starter that has already proven firm resistance on the gauge. Once a repair is complete, we return for a yearly performance follow-up inspection, re-checking elevations against the job baseline.

Acorn Finance, easy payment options. Check your rate.

Financing through Acorn Finance, an independent third party. Checking your rate won’t affect your credit score.

Straight answers

Hybrid pier questions, answered straight.

What exactly is a hybrid pier?

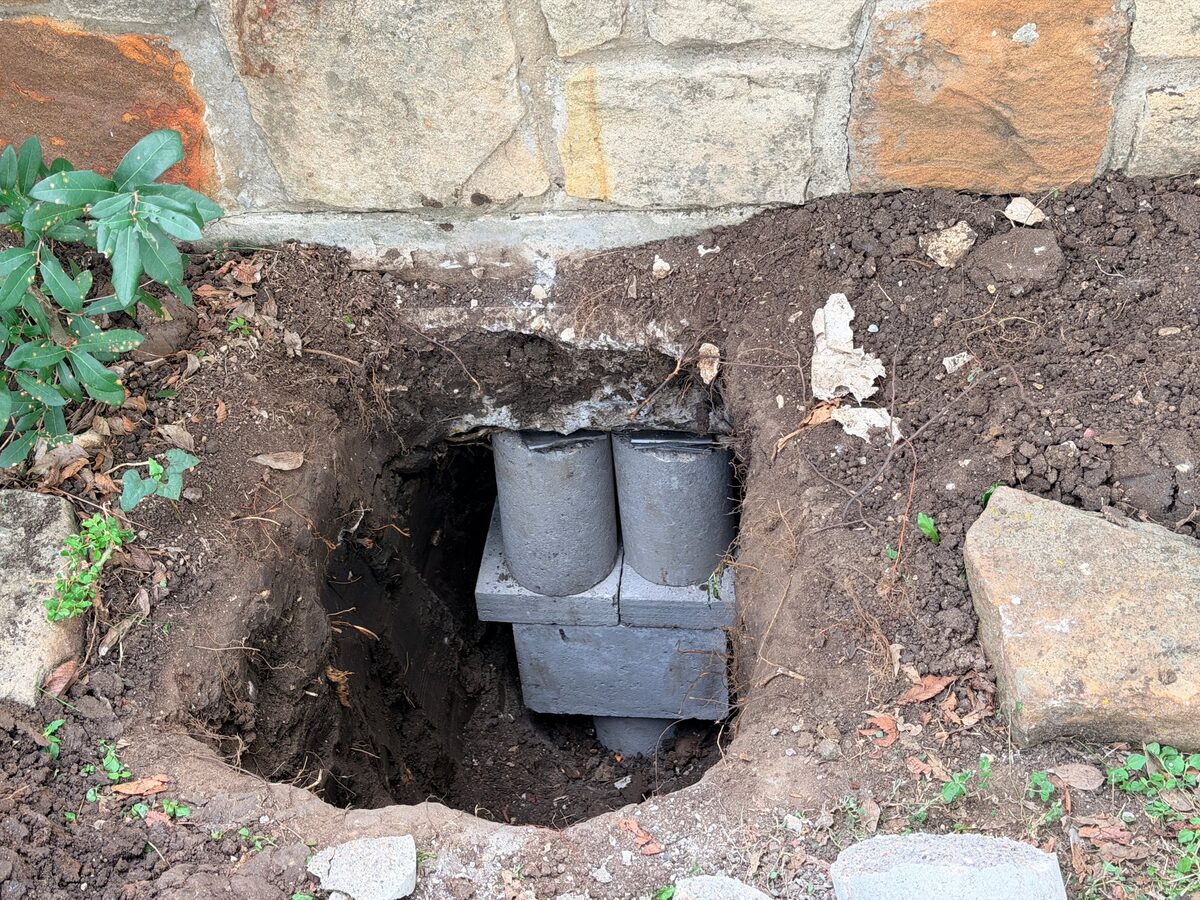

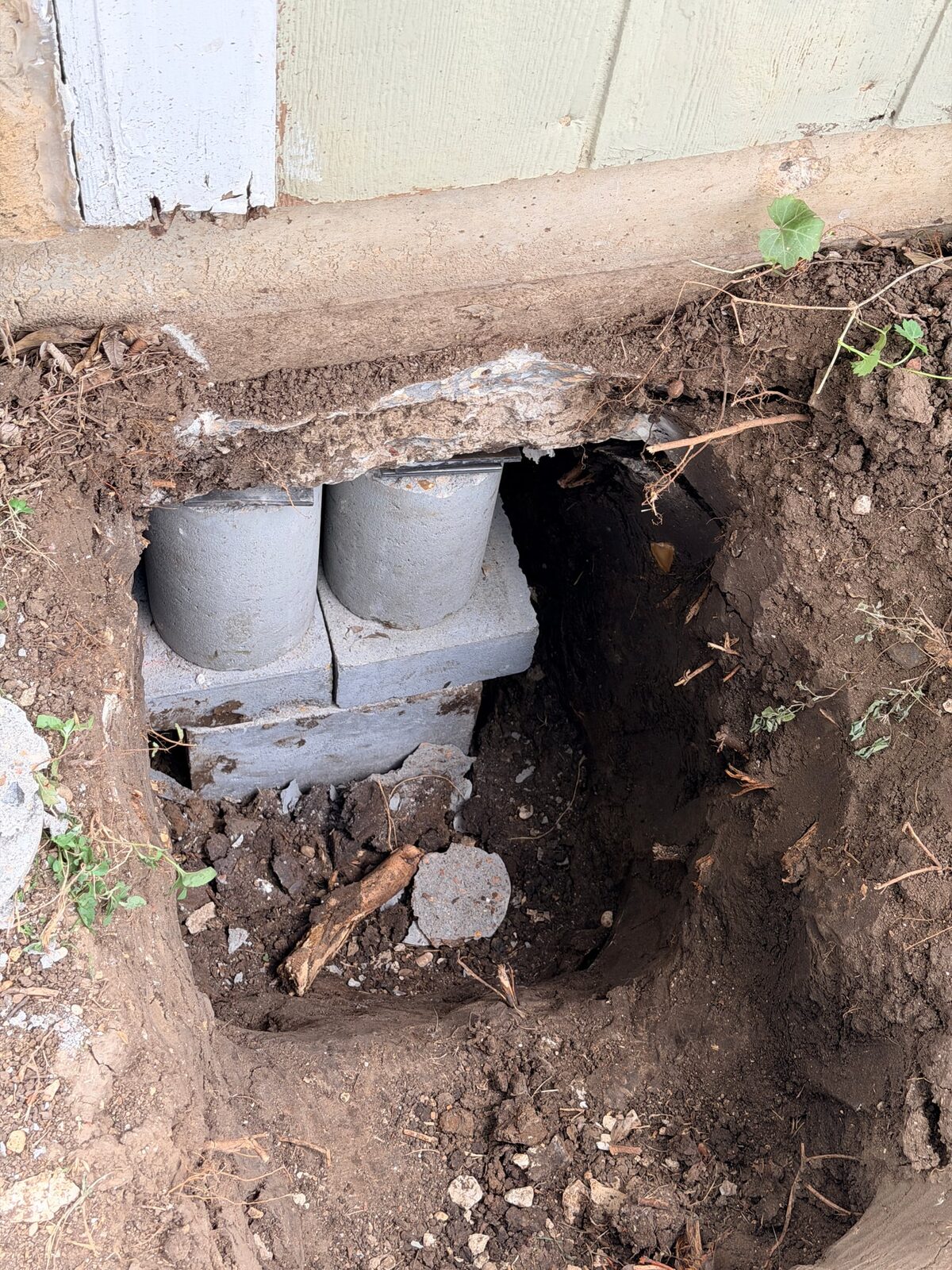

A driven steel starter section at the bottom, installed first and pushed to firm resistance with pressure readings, topped by pressed concrete cylinders with centered rebar up to the bracket. Steel does the penetrating; concrete does the affordable column work.

Is a hybrid just a compromise?

It's a targeted tool, not a hedge. In the common Central Texas case (soft clay over firm material at moderate depth) it delivers most of steel's bearing certainty at a meaningfully lower price. When conditions don't fit that profile, we say so and propose differently.

How much do hybrids cost compared to steel and concrete?

Per pier, hybrids typically land between the two, roughly 25–35% below full steel at the same count. The free inspection turns that into a firm number for your actual footage.

Do hybrids carry the same warranty?

Yes. Lifetime, transferable, identical to our steel pier installs. The warranty follows the workmanship, not the price tier.

Who decides which pier my house gets?

The measurements do. Elevation map, soil behavior at driving, structure weight, and your budget constraints in that order. You'll see every reading that shaped the recommendation.

The local soil

Heiden clay: when one pier type isn’t enough.

On the rolling ground east of the corridor the clay is frequently Heiden, which has high shrink–swell like its neighbors, but the USDA rates it “well drained” and it sheds across slopes, so the depth to firm material shifts from one corner of a house to the next.

Why that matters: when solid bearing is shallow under one corner and deep under another, a hybrid pier (a steel starter that hunts for resistance, finished with concrete) adapts hole by hole instead of forcing a single method across the whole footprint.

Look up the Heiden series at USDA →

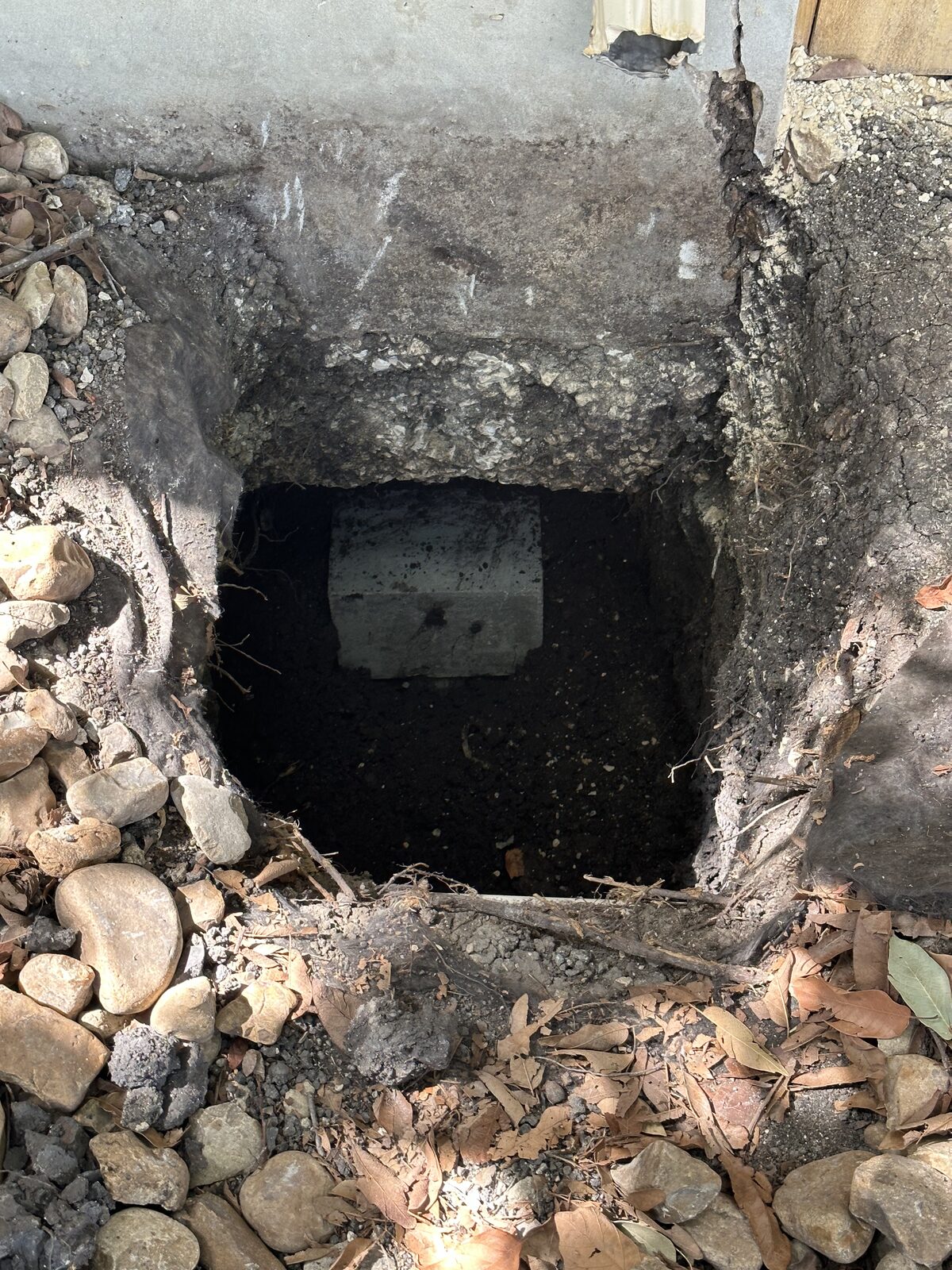

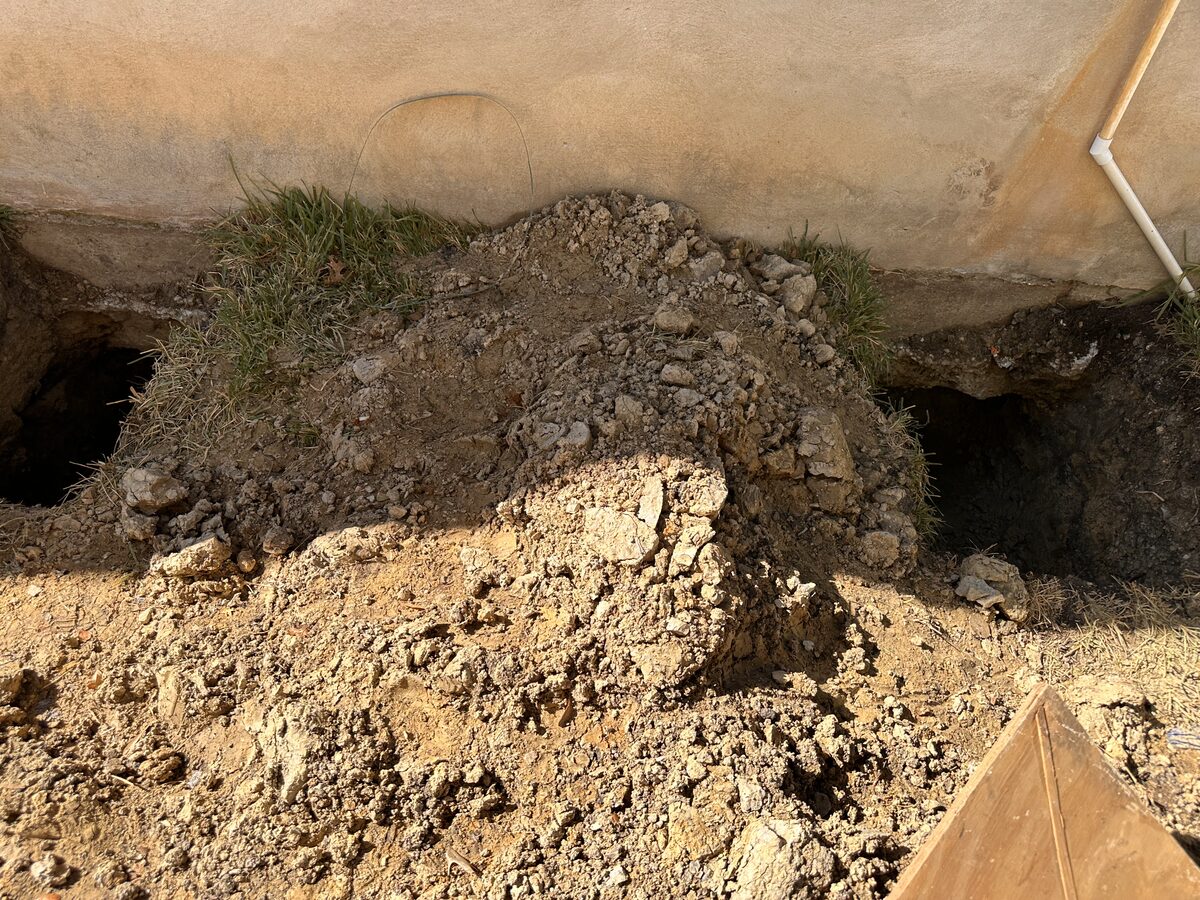

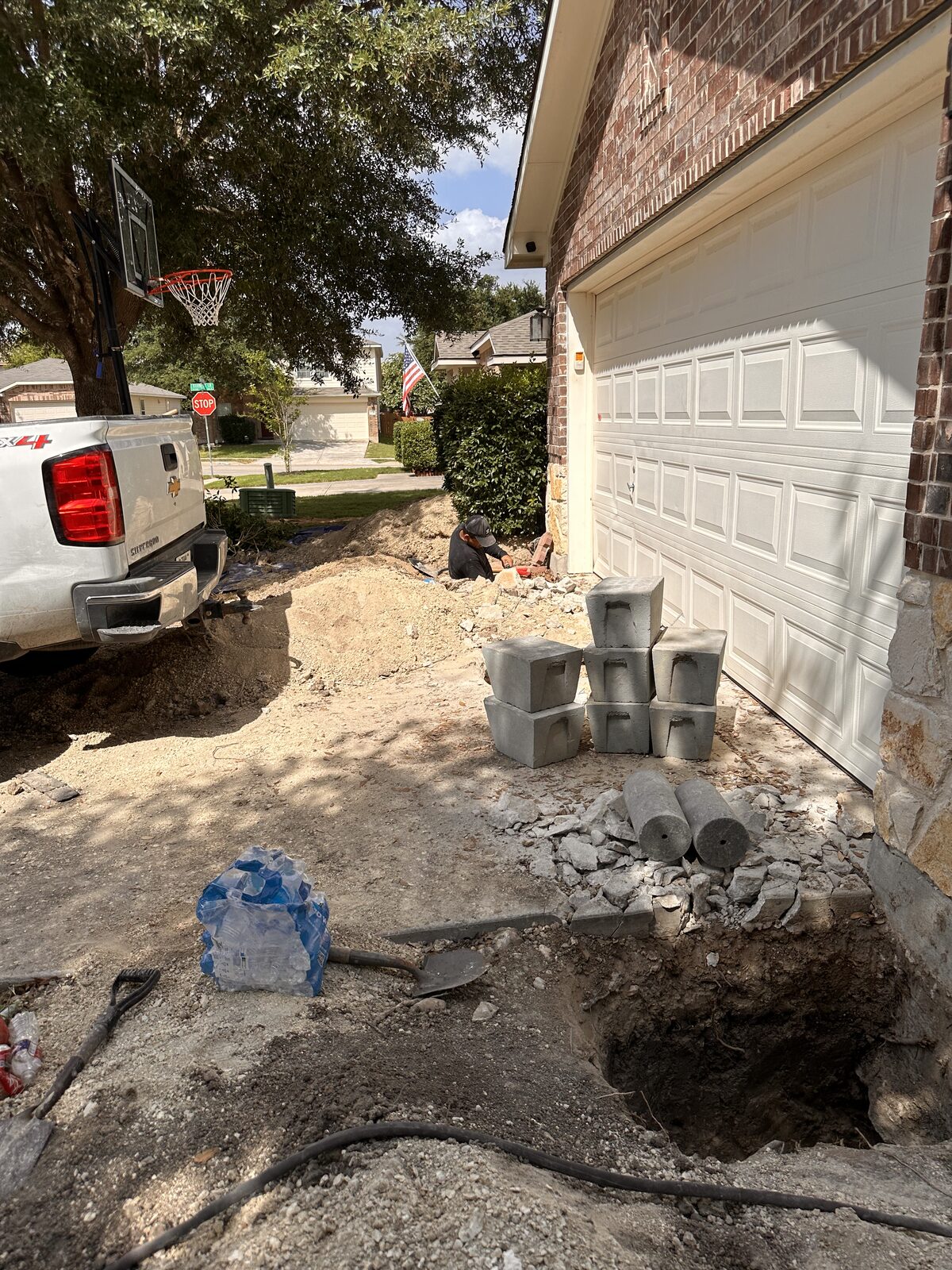

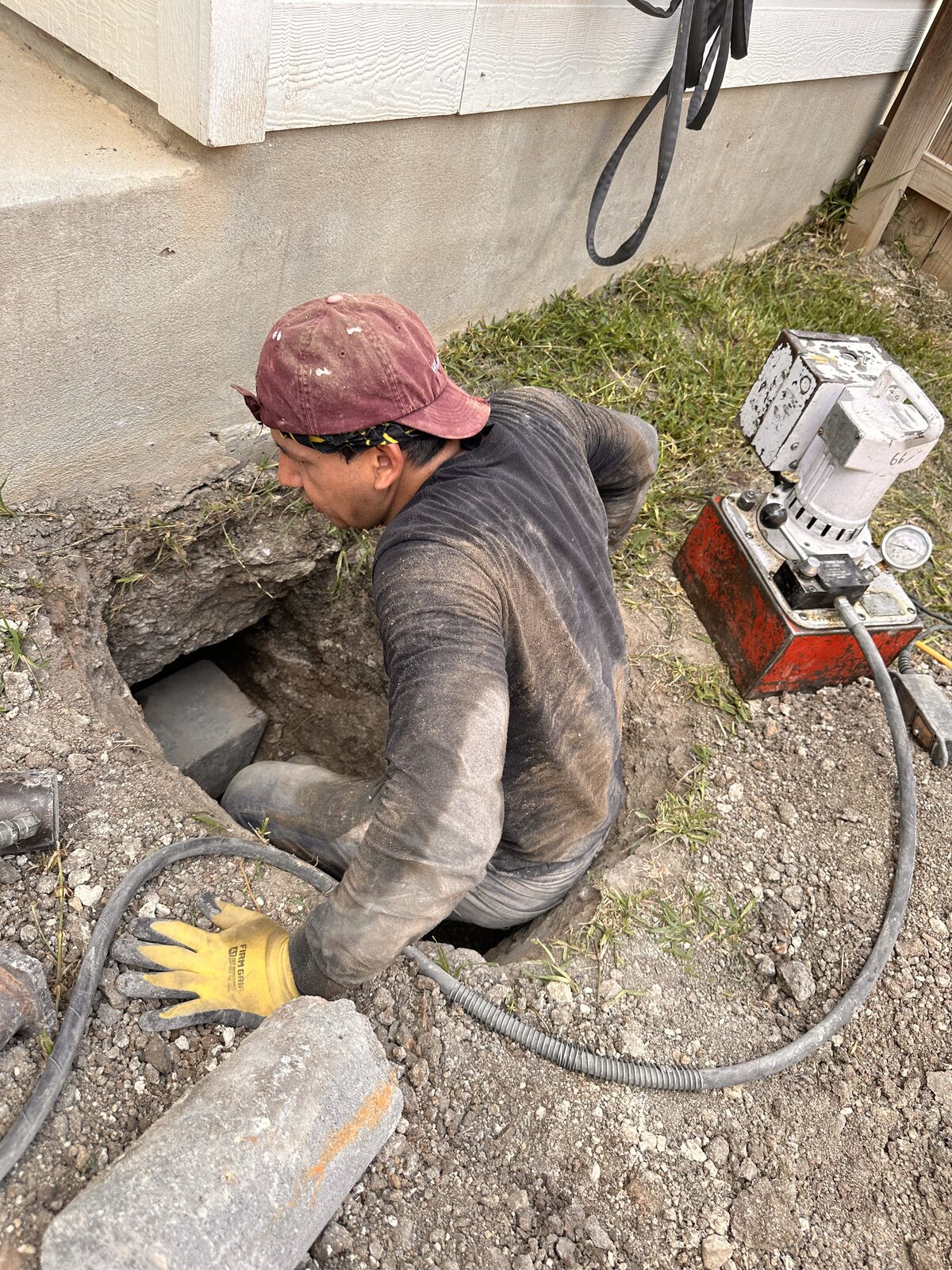

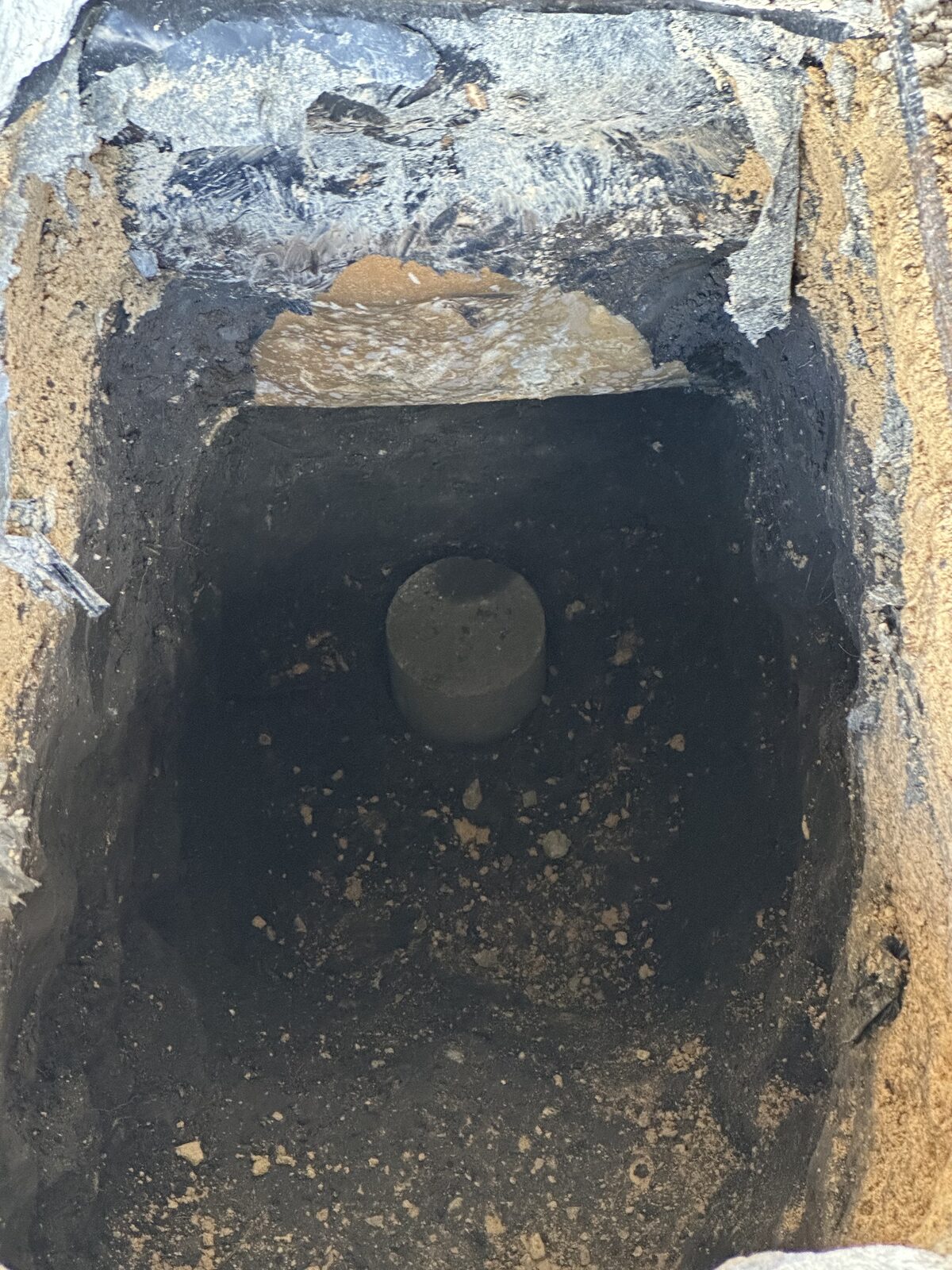

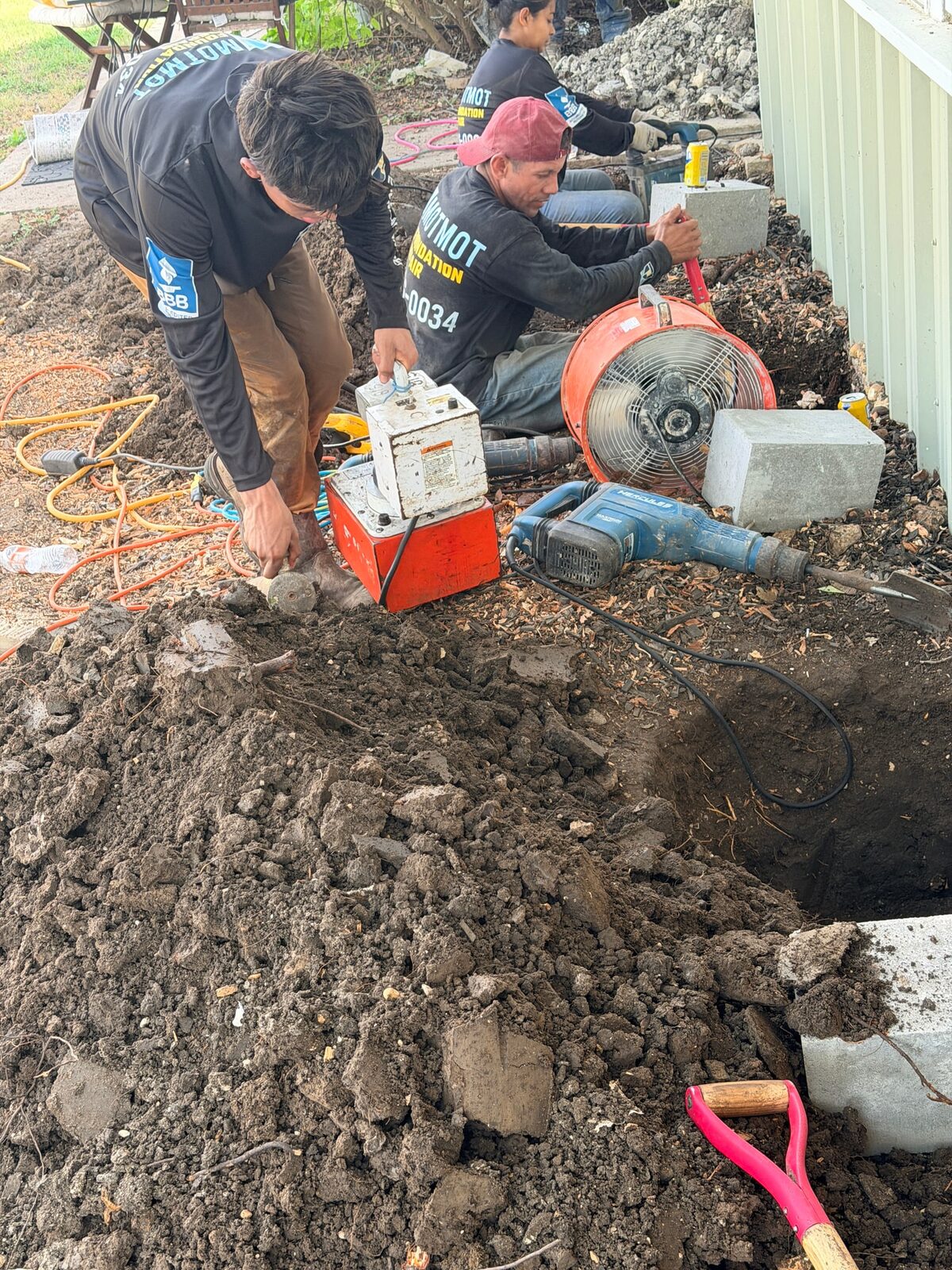

From real jobs and inspections
