Ask two foundation companies which pier is better and you'll often get two confident, opposite answers — each matching whatever that company happens to sell. So let's start with the honest version: "which is better" is the wrong question. The right one is "which does my soil, my structure, and my budget actually justify?" That has a measurable answer. If you are a step earlier, weighing every method at once, start with what is the best foundation repair method.

How each one works

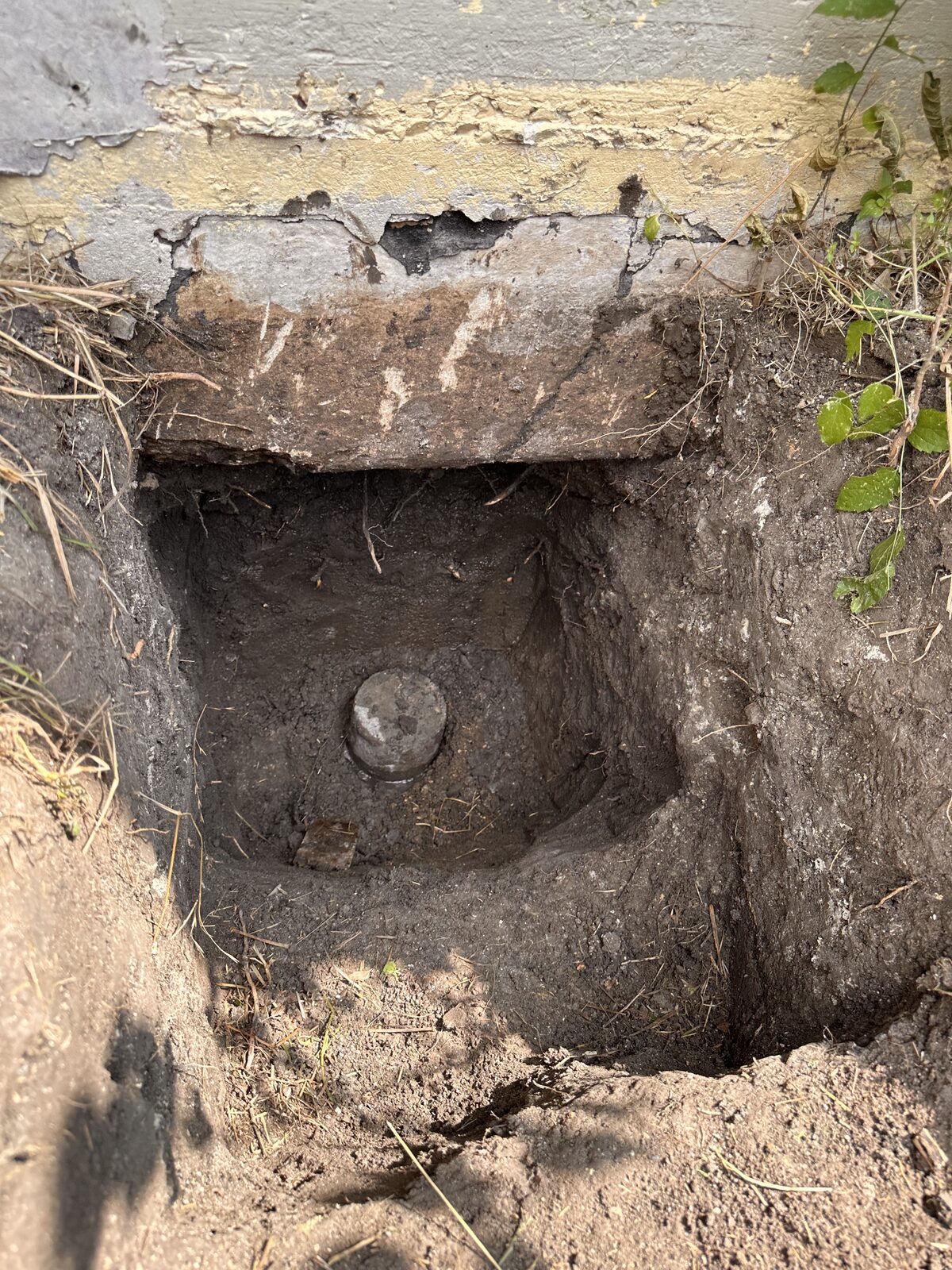

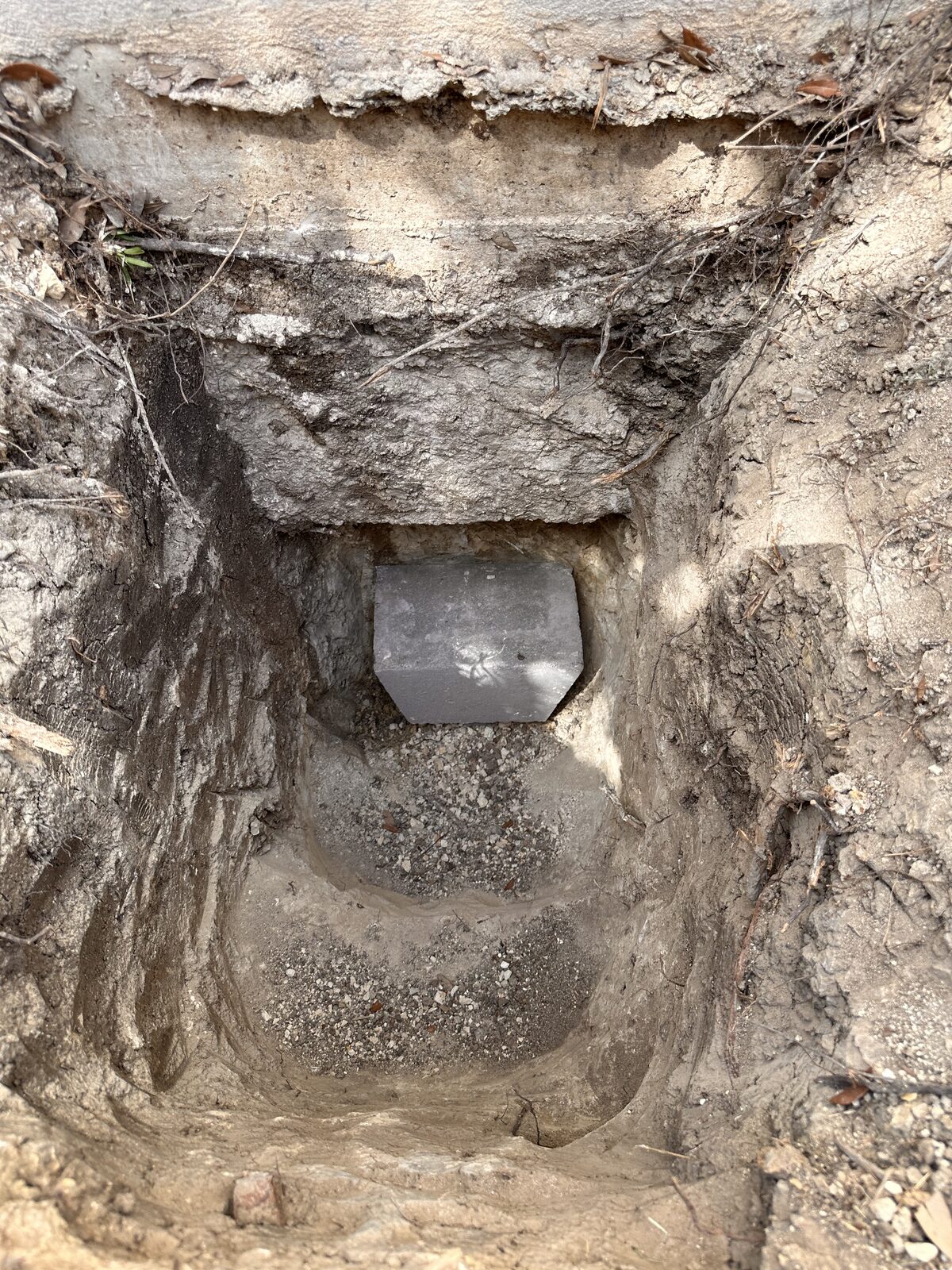

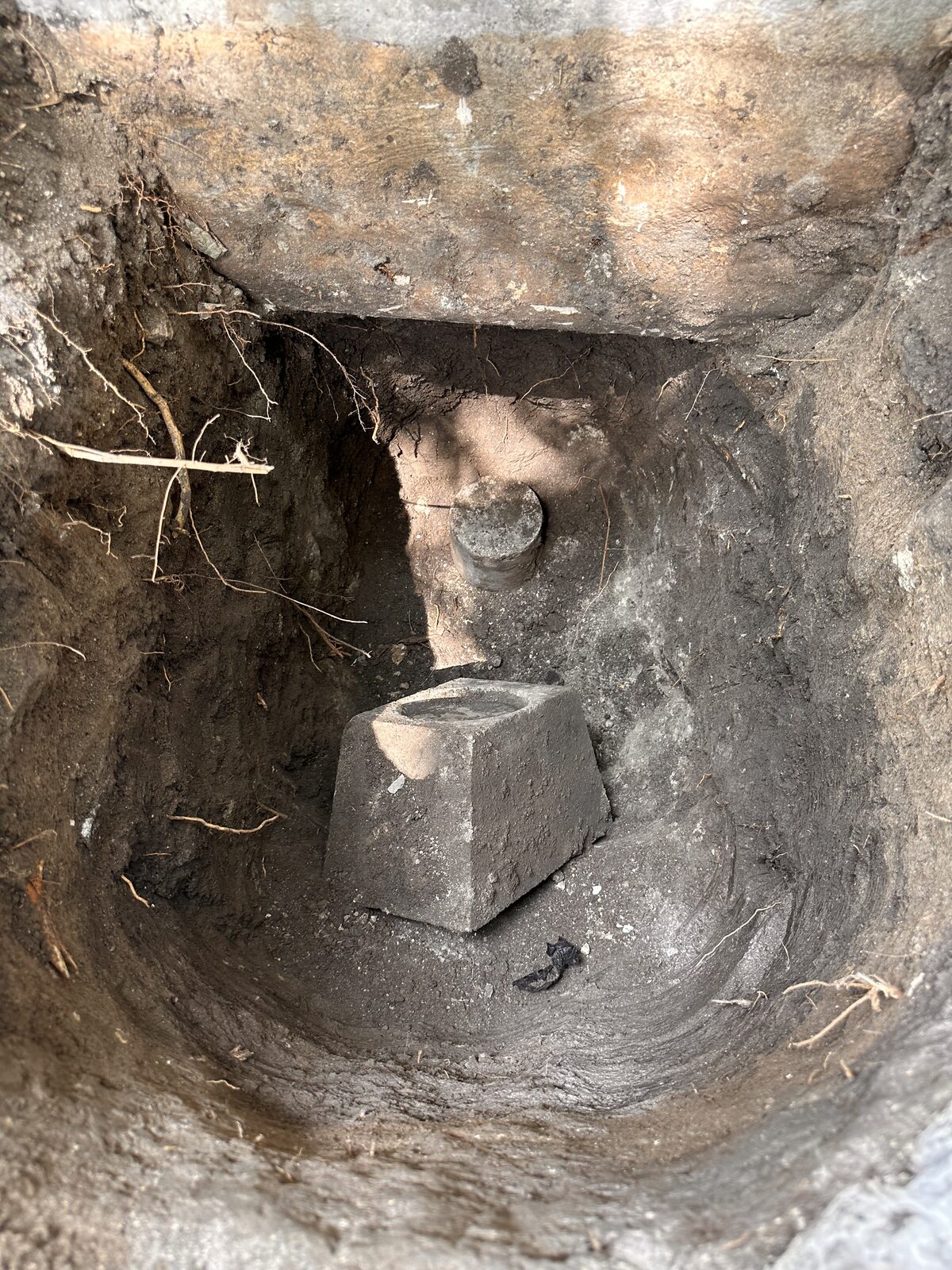

Pressed concrete piers are precast cylinders (ours run 12″ with a centered #3 rebar tying the stack) pressed into the soil one at a time using the house's weight as the hydraulic press. They advance until the soil resists further pressing — practical refusal — typically in the firmer material below the surface clay.

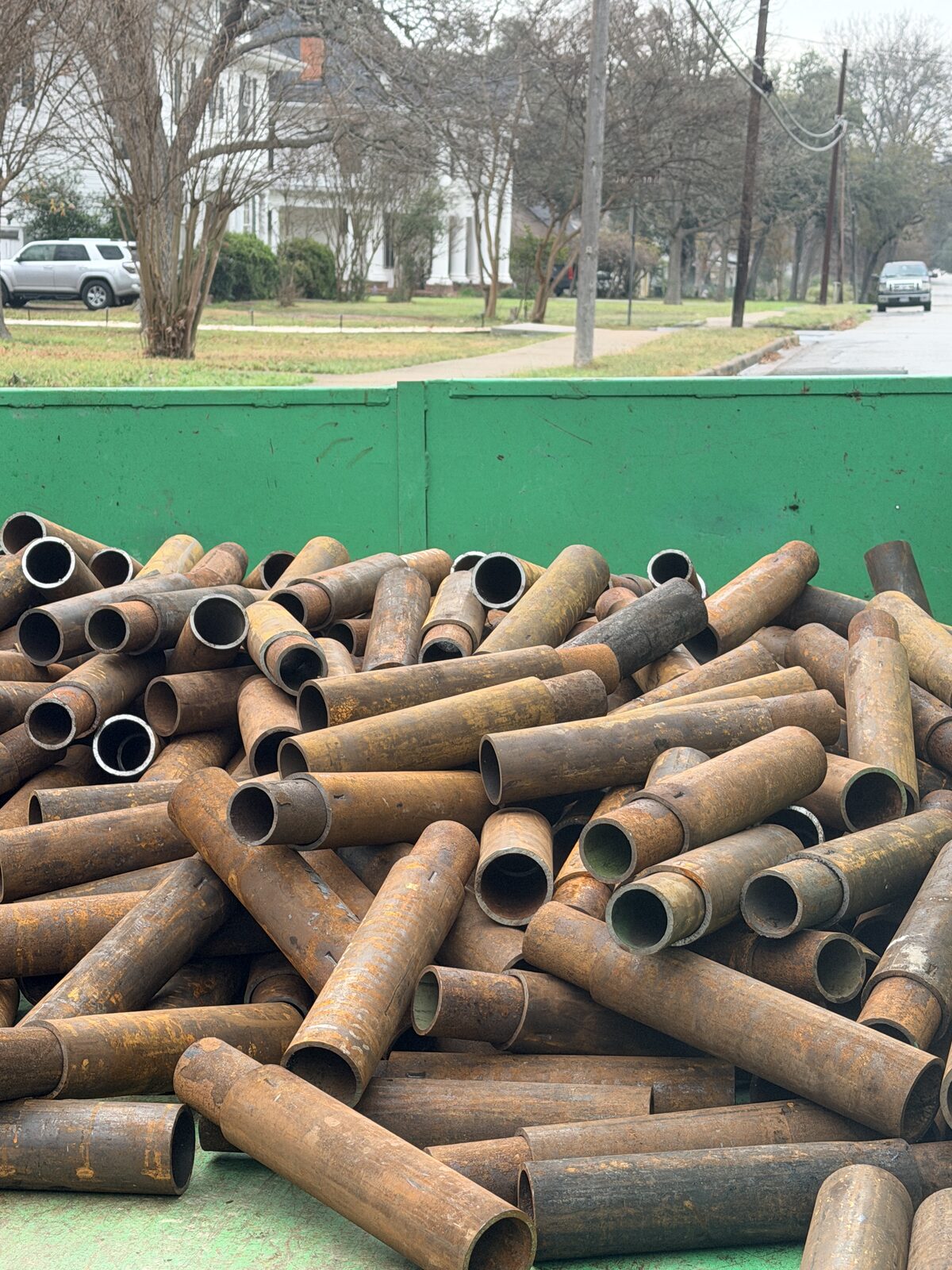

Steel piers are slender pipe sections driven the same hydraulic way, but their narrow profile penetrates much deeper — through the entire active clay zone — until they hit material that refuses them at pressures well above the house's working load. That's verified refusal: every pier comes with a pressure reading proving what it's standing on. (Steel piers are driven, not screwed in — if a bidder is pushing screw-in anchors, our push piers vs helical piers guide explains the difference.)

The differences that actually matter

• Depth: steel goes deeper, period. In deep active clay (common east of I-35 along our corridor), that depth is the difference between bearing below the movement and bearing within it.
• Proof: steel's per-pier pressure log is the strongest documentation in the industry. Concrete's press resistance is good evidence, but less granular.
• Cost: both fall in our $600–1,000 per pier band in Central Texas — concrete near the low end, steel near the top — a far smaller gap than the old industry split. Method should be an engineering decision for your soil, not a big price swing.
• What doesn't differ: install speed (neither cures on site), yard disruption (same pits), and — at least with us — the lifetime transferable warranty.

So when is each one right?

Concrete earns the job when the structure is a typical single-story slab, firm bearing sits within pressed reach, and the movement is straightforward perimeter settlement. That describes a lot of corridor homes — which is why the cheaper option being "right" is more common than the industry's steel-heavy marketing suggests.

Steel earns the job when the structure is heavy (two stories, full masonry), the active clay is deep, a previous repair has already failed, or the documentation needs to be bulletproof — pre-sale, post-litigation, or engineer-supervised work. What the install involves locally, from the first pit to the pressure log, is on our steel piers installation in San Antonio page.
