Steel piers in San Antonio: depth you don’t guess. Depth you prove.

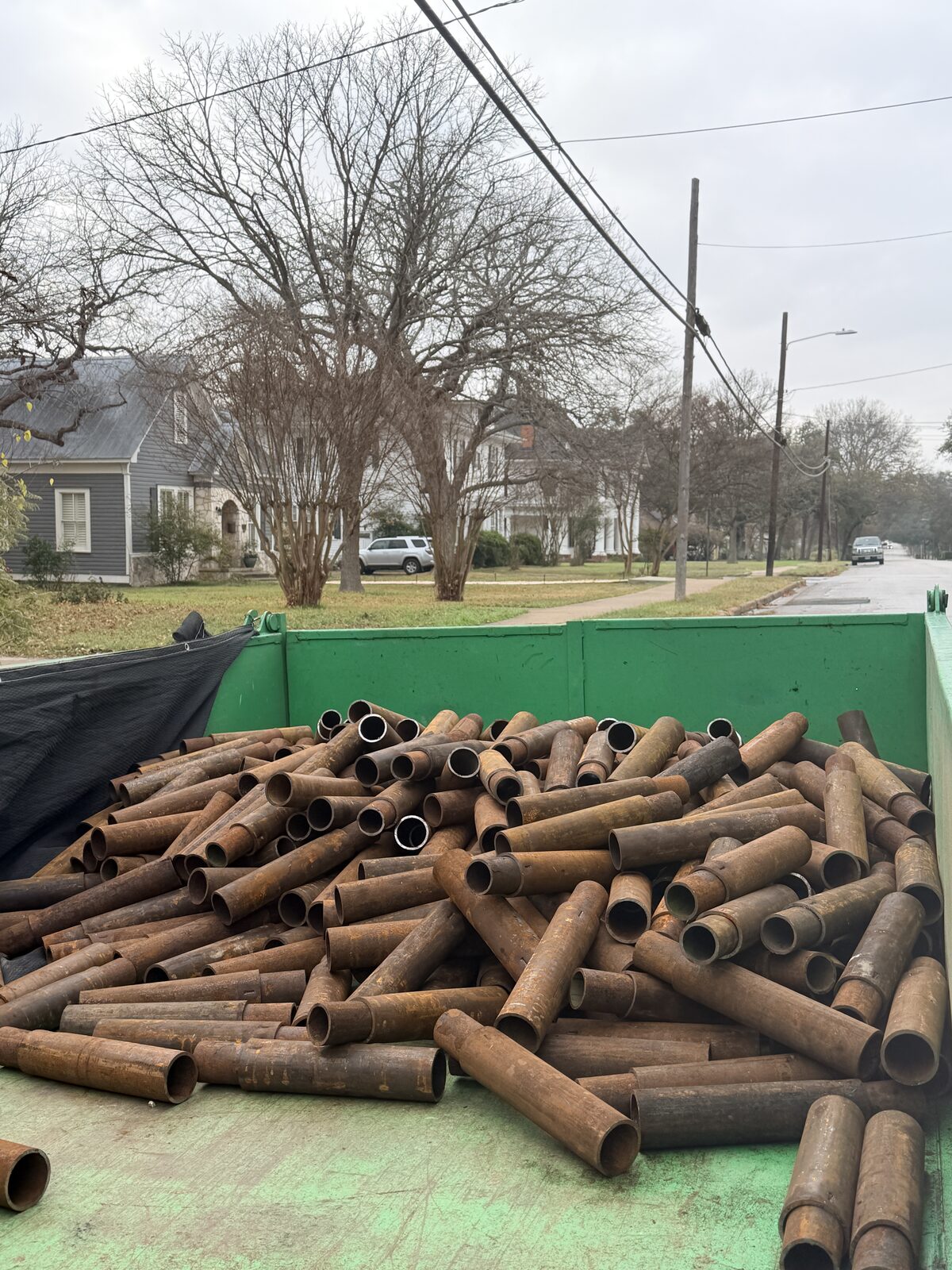

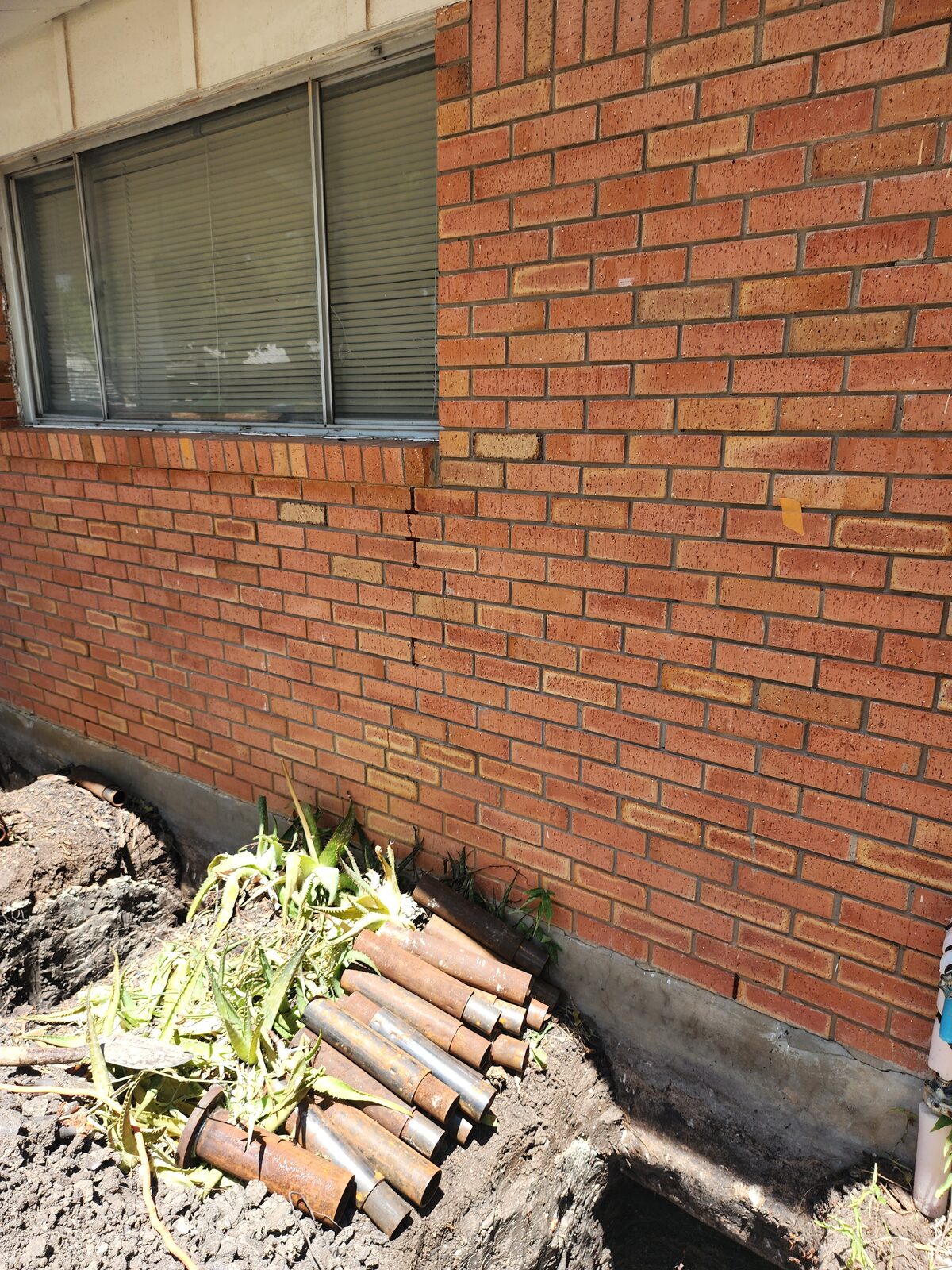

Hydraulically driven pipe sections that pass through unstable clay until the soil itself refuses — with a pressure reading at every section as the receipt. The most load-certain repair we install, from San Antonio to Austin. Not sure it's the right method for your soil? Book a free foundation inspection and the elevation survey will tell you.

See If Steel Fits My House (210) 816-0034

Financing available through Acorn Finance — check your rate in minutes, no credit-score impact →

From pit to proof

Step through the installation.

The same interactive from our homepage, because it's exactly how your job would run — excavate, bracket, drive, refusal, lift, document. (New to the jargon? Here's what “driven to refusal” actually means — measurement, not slogan.)

INTERACTIVE · HOW A STEEL PIER IS INSTALLED

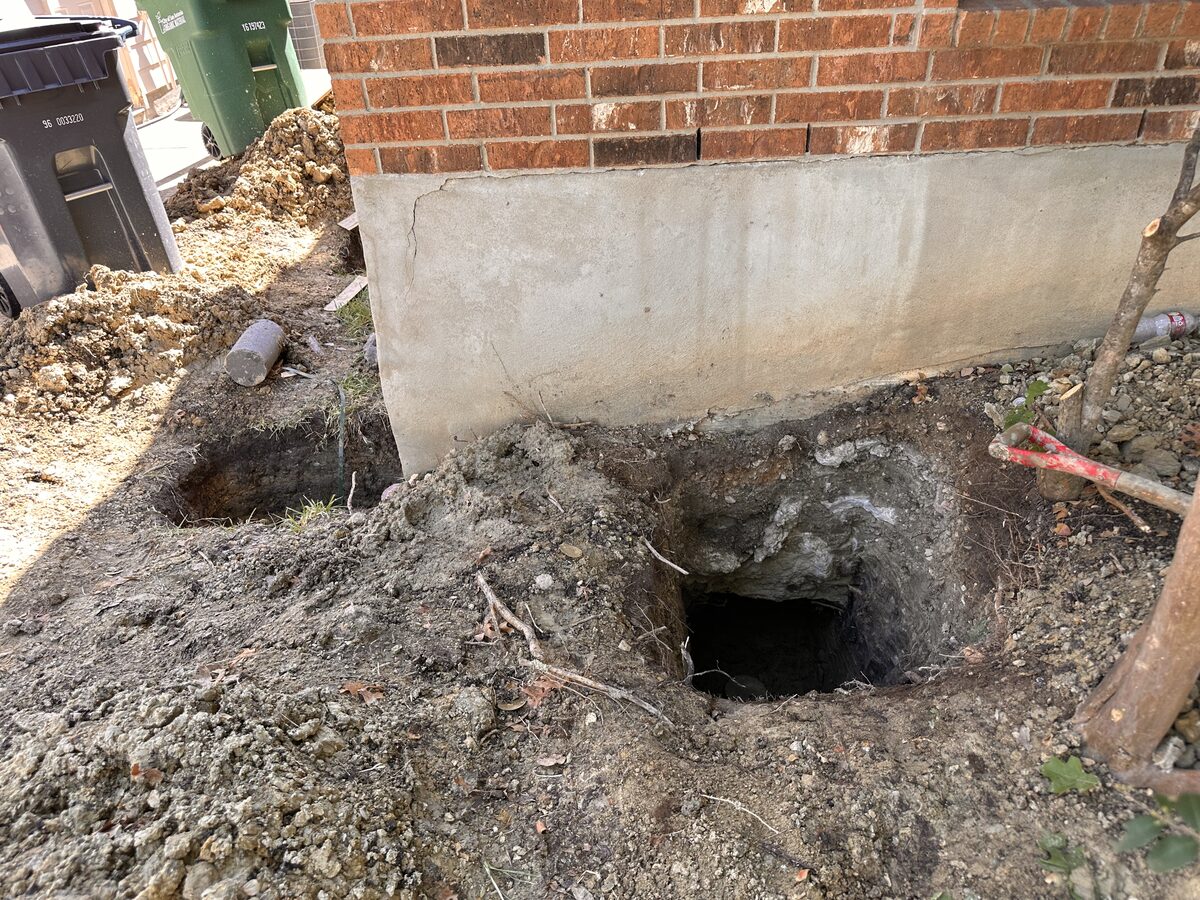

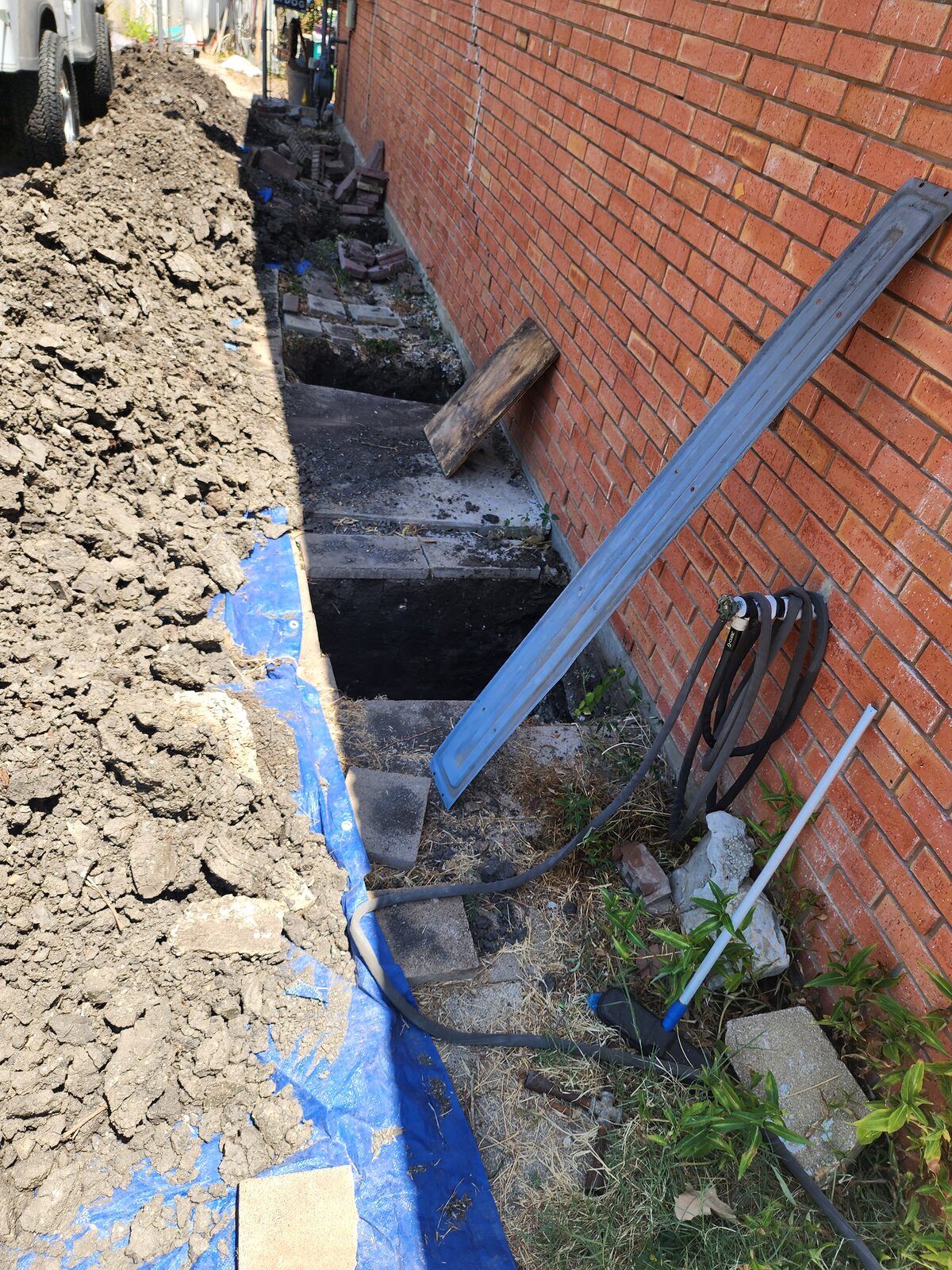

Step 1 — Excavate at the affected section. A compact pit (~3 ft) is dug beside the grade beam where the elevation survey showed movement. Landscaping is set aside carefully — it goes back when we're done.

Excavation exposing the foundation of a brick home in Central Texas where steel piers are driven beneath the grade beam — A real steel-pier dig — a compact pit at the grade beam is all it takes to drive piers to refusal, and the landscaping goes back when we're done.

When steel makes sense

Three questions decide it.

Is the structure heavy? (two-story, masonry, large footprint)

YES →Steel carries high loads with certainty — strong fit.

NO →Lighter homes may not need steel's capacity.

Is the active clay deep, or has a previous repair failed?

YES →Steel passes through unstable depth to verified refusal.

NO →Shallower stable strata may suit concrete or hybrid.

Does the budget favor certainty over cost?

YES →Steel is the premium, most load-certain option.

NO →Hybrid offers much of the depth at lower cost.

Honest caveat: no method is “always right.” The elevation map and soil behavior decide — that's what the free inspection is for.

Side by side

Steel against the alternatives.

Same warranty on all three. Different depths, proofs, and price points — compare honestly: concrete with rebar piers and hybrid piers each have their place. Our homeowner's guide to steel vs concrete walks the tradeoffs at full depth, and if you keep hearing about screw-in piers, our push piers vs helical piers guide explains why we drive to refusal instead.

COMPARE	Steel piers	Concrete + rebar	Hybrid piers
Depth	Driven to verified refusal — deepest	Pressed to practical refusal in suitable soils	Steel starter depth + concrete stack
Proof of bearing	Hydraulic pressure readings at every pier	Press resistance during install	Pressure readings on the steel starter
Relative cost	$$	$	$
Best suited for	Heavy structures, deep active clay, prior failed repairs	Lighter slabs, favorable soil, budget-conscious repairs	Middle ground — depth where soil demands it
Install speed	Fast — no curing	Fast — no curing	Fast — no curing
Warranty	Lifetime, transferable	Lifetime, transferable	Lifetime, transferable

Acorn Finance — easy payment options. Check your rate.

Financing through Acorn Finance, an independent third party. Checking your rate won’t affect your credit score.

Straight answers

Steel pier questions, answered straight.

What does “driven to refusal” actually mean?

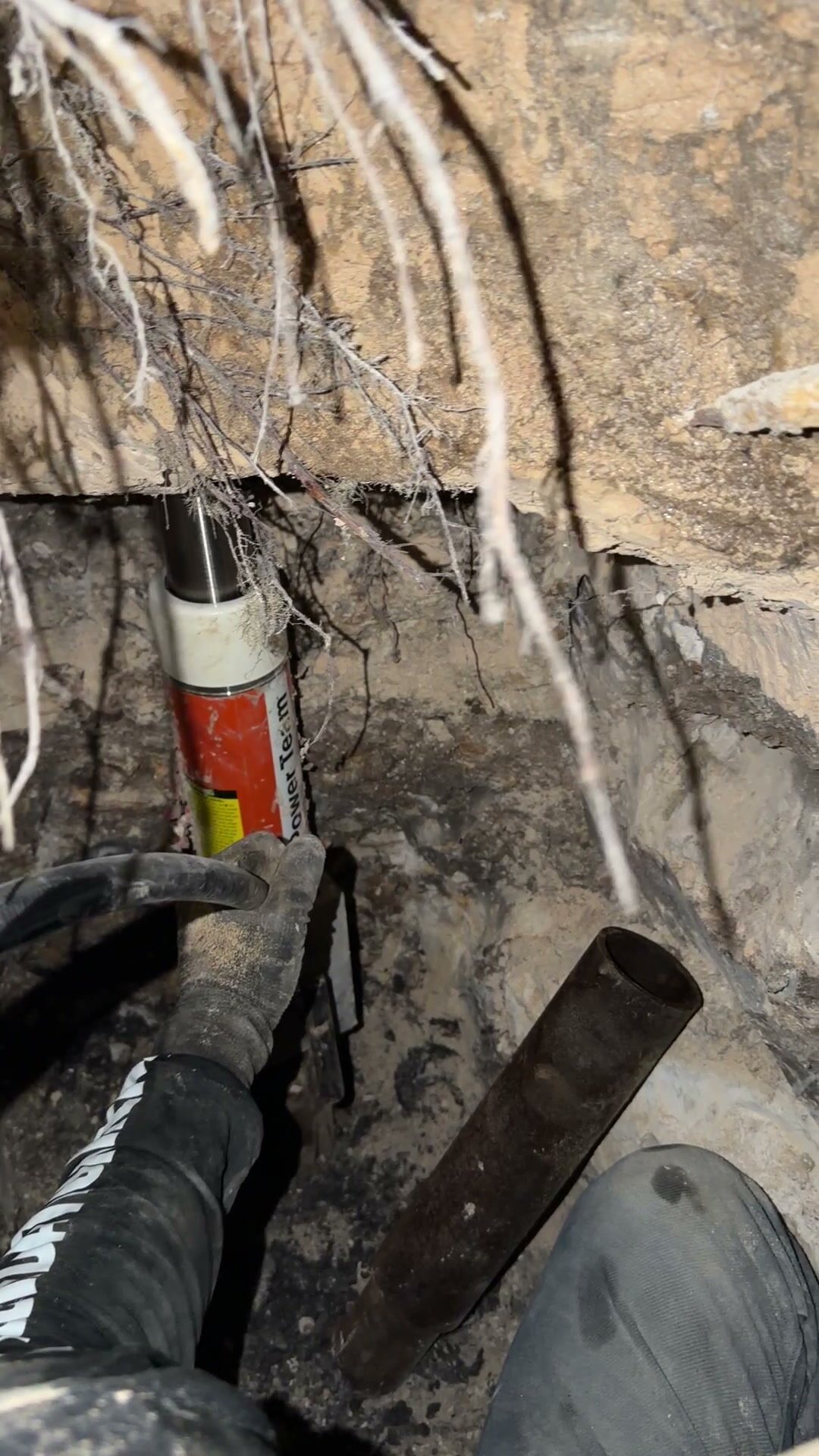

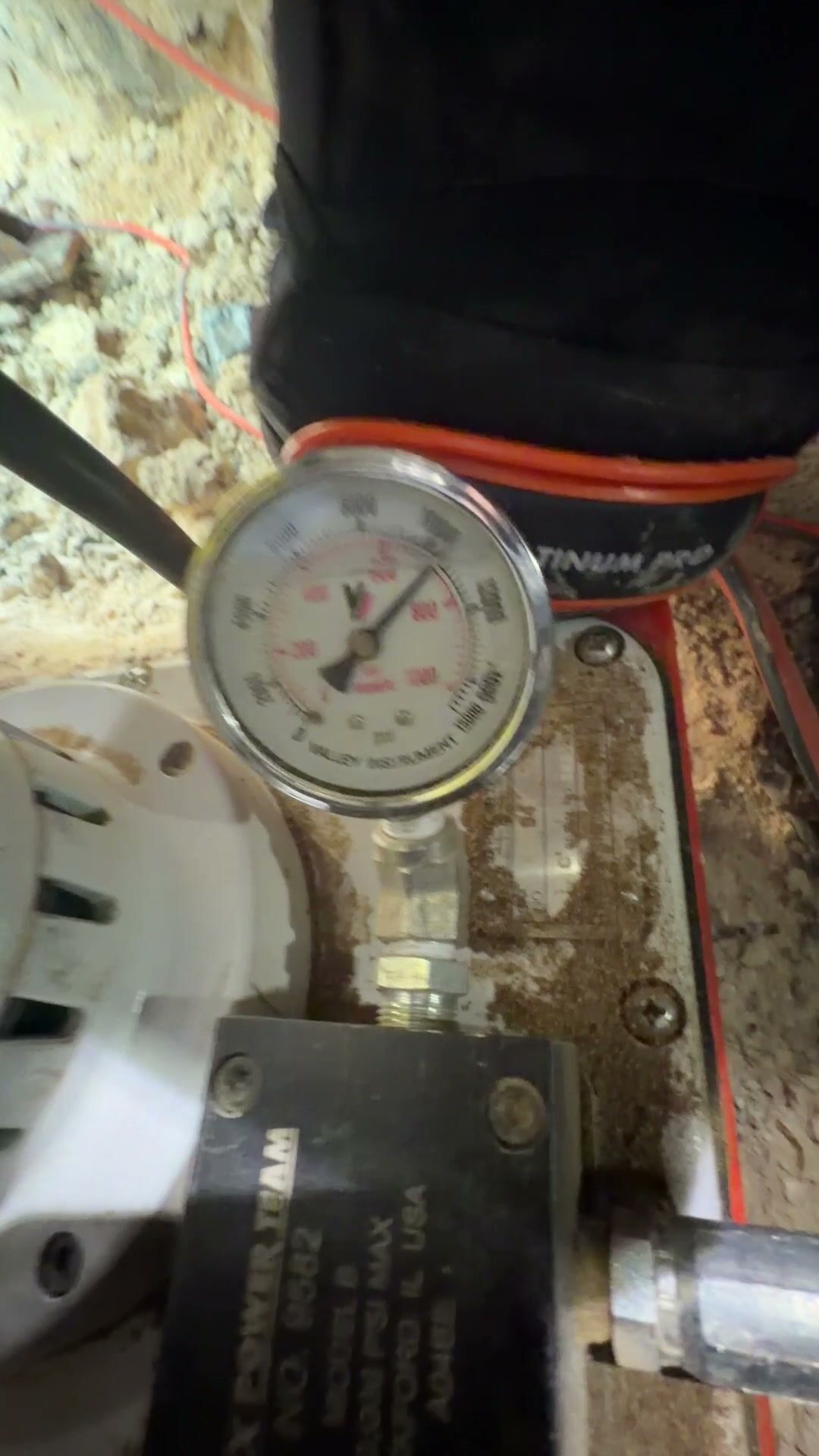

Each pipe section is pushed down hydraulically using the house's own weight as the press. We watch the pressure gauge on every section. “Refusal” is the point where the pier won't advance at pressures well above the house's working load — meaning it's bearing on strata that doesn't care about the weather. The depth isn't guessed; it's proven at every single pier.

Do you install steel piers in San Antonio?

Yes, every week. Motmot is based in San Antonio, at 4402 Vance Jackson Rd, and steel pier installation is one of our core services across the city and its suburbs. The local wrinkle is depth: refusal comes quickly on the north side's shallow limestone and much deeper in the clay belts south and east of downtown, so per-pier depth, not pier count alone, is what an honest San Antonio bid has to get right. The free inspection includes the elevation survey that decides whether steel is even the right method for your soil.

How deep do steel piers go?

Whatever depth refusal demands — commonly 15–30 feet in our corridor, occasionally deeper in thick clay. That's the point of steel: it doesn't stop at a convenient depth, it stops at a load-proven one.

Will the installation wreck my yard?

Each pier needs a pit roughly 3×3 feet beside the grade beam. We cut and set aside sod, pile soil on tarps, and put everything back. Two weeks later, most owners can't point to where the pits were.

Are steel piers overkill for my house?

Sometimes, honestly, yes. A light single-story slab over shallow stable strata may do equally well on concrete or hybrid piers for less money. We propose steel when the load, depth, or history justifies it — and we'll show you the measurements that say so.

Can you lift the house back to level?

The ground under your slab

Why steel goes deep: Houston Black clay.

Most of the San Antonio–Austin corridor sits on Houston Black — the clay the USDA classifies as a smectitic “Vertisol.” Its survey lists high shrink–swell potential, with dry-season cracks ½–4 inches wide reaching a foot deep and staying open 90–150 days a year.

What that does to a house: that surface layer swells and shrinks with every wet–dry swing, so anything resting in it rides the movement. Steel piers are driven past the active clay to firm bearing — so the foundation stops following the soil.

See Houston Black on the USDA soil survey →

The local answer

Steel pier installation in San Antonio.

Yes, we install steel piers across San Antonio, and the city is a genuinely good match for them, because depth to refusal varies here more than almost anywhere in Texas. San Antonio sits on a patchwork: shallow limestone under much of the north side, deep expansive clay through the central, south, and east sides, and transition seams between them where two houses on one street can need very different pier depths. Steel absorbs that uncertainty by design, since each pier is driven until the soil itself proves the load, whether that happens at twelve feet or past thirty. Our shop is on Vance Jackson, most residential installs run one to three days, and the same crews cover the whole corridor. You can see how your neighborhood's soil behaves on the Central Texas foundation risk map, and what the work runs in foundation repair cost in San Antonio.
