Foundation repair · New Braunfels, TX
Foundation repair in New Braunfels, where the Hill Country meets the Blackland clay.
Foundation repair in New Braunfels, TX starts at the Balcones Escarpment. Limestone hills sit on the west side of I-35 and deep expansive clay lies to the east, so the same week we can measure a stable slab in the hills and a 1.5-inch corner drop ten minutes east. Geology, not workmanship, is usually the difference.
The growth boom matters too. Subdivisions like Veramendi and the corridors off FM 306 went up fast on engineered pads; most perform well, but where cut-and-fill met native clay, the seams show up a few summers later as stair-step cracks and sticking doors.
GRUENE TO VERAMENDI, DOWNTOWN'S OLDER STREETS TO THE FM 306 CORRIDOR, ABOUT 35 MINUTES UP I-35 FROM OUR SAN ANTONIO SHOP.
What the USDA maps here
The USDA maps the dominant soil under New Braunfels as Krum, high shrink–swell (linear extensibility ≈ 8.4%). Krum is deep valley-fill clay that collected at the foot of the slopes. Expect real seasonal movement here. It is the kind of ground where small problems caught early stay small.
See the Krum soil series at USDA →What we see in New Braunfels
The local patterns, specifically.
New-build cracks after the second summer

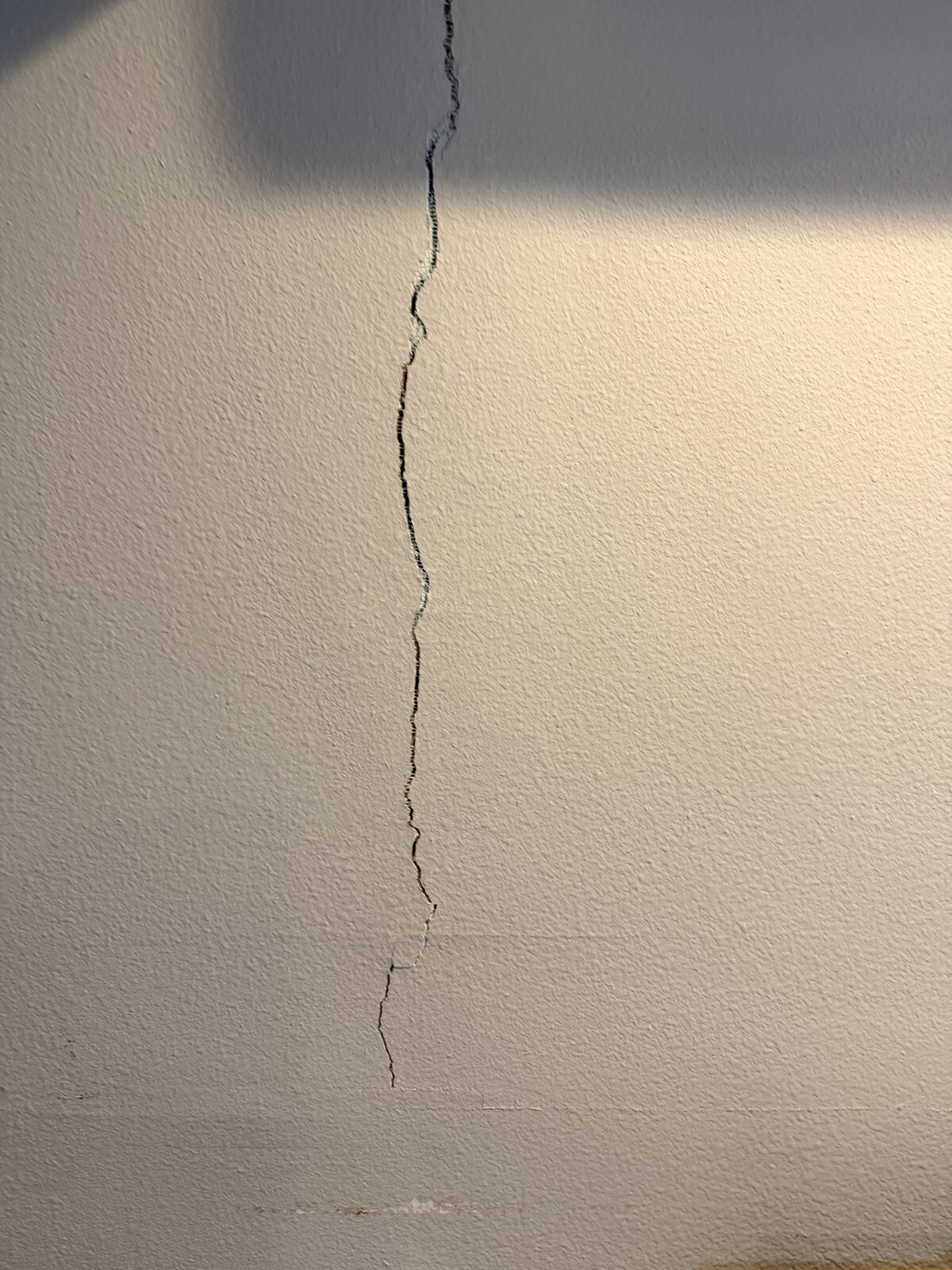

Fill soil consolidates and the first real drought finds the soft spots. Hairlines are normal; widening diagonal cracks above doors are worth measuring.
River-area moisture swings
Homes near the Comal and Guadalupe live with high water tables and flood-cycle moisture. Slab edges there respond to wet/dry swings faster than the city average.
Escarpment transition movement
Streets that sit across the limestone-to-clay line can have one corner on rock and another on clay. Differential movement concentrated at one corner is the signature.
Garage step-down confusion
Fast-built garages often slope by design. We separate intentional slope from real movement with the elevation survey rather than guessing. Where an approach slab has cracked apart, we pour fresh concrete flatwork to match.
The geology under two rivers
Foundation repair in New Braunfels sits on the escarpment line, between the springs and the clay.
New Braunfels was founded at the confluence of the Comal and the Guadalupe. The Comal springs rise straight out of the Balcones Fault Zone, the same fractured limestone edge that feeds the springs at San Marcos and San Pedro. That fault line runs right through town, and it's the reason two houses ten minutes apart can sit on completely different ground. West of I-35 and up toward the hills, the soil is thin over Edwards limestone and holds relatively steady. East of the highway, the ground turns to deep Blackland-belt clay that swells in a wet spring and shrinks hard by September.
The rivers add a second variable the clay maps don't show. Homes near the Comal and the Guadalupe (the older streets around downtown, the acreage tracts along the water in communities like River Chase) live with a high, moving water table. A slab edge there responds to wet-and-dry swings faster than the city average, because the moisture under the house is never quite still. Under-slab plumbing leaks read the same way, which is why we measure the pattern before anyone talks about piers.
None of this is guesswork from a soil chart: the elevation survey reads which side of the fault your house actually lives on. A drought-settled corner east of I-35 and a drainage-driven drop on a cut hillside lot west of it look similar on the drywall and call for very different repairs. The free measured inspection is what tells the two apart.
The growth boom
Historic bones downtown, engineered pads on the ridges, and the seams in between.
New Braunfels is one of the fastest-growing cities in the country, and its foundations span a century and a half because of it. Around downtown and the Sophienburg-era streets, the historic stock runs to pier-and-beam and early slab: beams, sills, blocks, and crawlspace moisture instead of excavated piers, usually a friendlier scope than people fear. The Gruene historic district on the Guadalupe carries the same old-bones rules: the goal is stable and functional, measured against the house's own long history, not against a laser's idea of dead level.

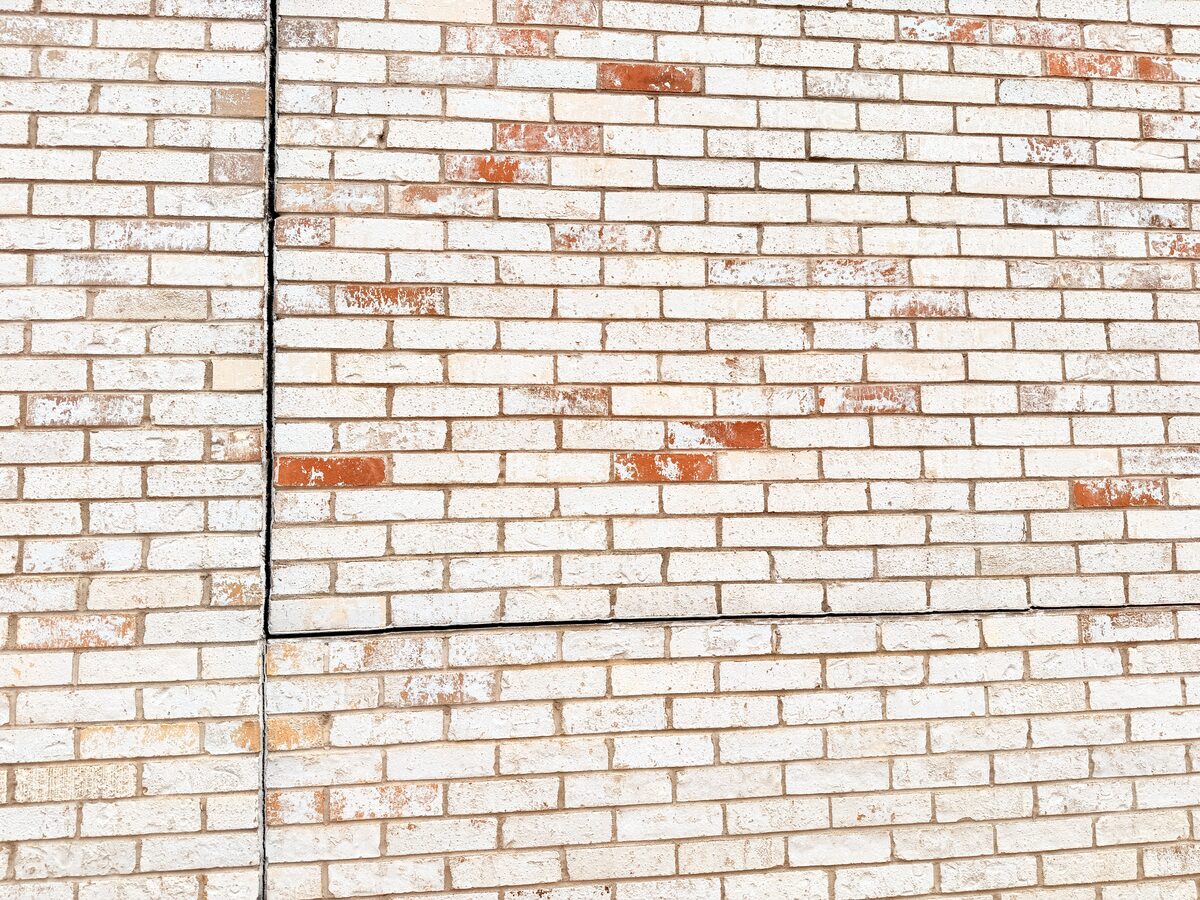

The new growth tells the opposite story. Master-planned communities like Veramendi off Loop 337, the Hill Country acreage at Vintage Oaks and Copper Ridge, and the fast subdivisions along FM 306 went up quickly on engineered pads, and most perform well. Where cut-and-fill met native clay at a lot edge, the seam shows up a few summers later as stair-step brick cracks and doors that stop latching, right about when the builder's structural warranty runs out. Measure the floor while that warranty is still open. The dated map is what a claim runs on.
Neighborhood by neighborhood
New Braunfels foundation repair, street level.
Downtown & the Sophienburg streets
The historic core: pier-and-beam and early slab homes with decades of incremental additions. Joints between eras crack first, and the fix is usually crawlspace work (beams, blocks, moisture), not perimeter piers.
Gruene historic district
Century-old homes on the Guadalupe where preservation matters as much as structure. We adjust gently, measure against the house's own history, and never chase a level that would crack original plaster.
Veramendi & the Loop 337 side
Newer engineered pads on the northwest growth edge, hitting their first real droughts. Years 3–7 are the reveal window: pad consolidation plus a dry summer, right as builder coverage ends.
Vintage Oaks & Copper Ridge
Hill Country acreage west toward the 46 corridor: thinner soils over limestone, cut-and-fill homesites on slopes. The problem here is usually drainage and fill settlement, not deep clay heave.
FM 306 & the Canyon Lake corridor
Fast subdivision growth on mixed ground. Lot-edge seams where placed fill meets native clay telegraph as cracks near garage returns and porch corners a few years in.
River Chase & the Guadalupe acreage
Large lots along the water with a high, moving water table. Slab and pier-and-beam edges here respond to wet-dry swings faster than the city average. Moisture management earns its keep.
By subdivision
Foundation repair in New Braunfels subdivisions.
Gruene, Veramendi and Vintage Oaks are covered above. Three more named communities come up often on the phone, and they sit on three different grounds.
Voss Farms
A Lennar community off FM 1044 near County Line Road, with homes from about 2021. Fresh slabs on the clay side of town, on the front end of their first drought cycles. Hairlines are normal at this age, and a dated baseline survey is the smart move while builder coverage is still open.
Westpointe Village
The gated Enclave at Westpointe Village sits off Loop 337 near Highway 46 and dates to about 2011. Old enough now to be past the years 3–7 window, so what we usually measure here is drainage and a settled cut-and-fill lot edge rather than a young pad still consolidating.
Mystic Shores
Up the Canyon Lake corridor northwest of town, between the Guadalupe and the lake's north shore, with home sites from an acre to more than twenty. Hill Country ground out here, thin soils over limestone and long slopes, so concentrated drainage and fill settlement drive more of what we find than deep clay heave does.
