Foundation repair in Bulverde and Spring Branch's Hill Country ground.

Bulverde and Spring Branch occupy the Hill Country's edge north of the city — limestone ridges, thin caliche soils, and the wave of ranch-style subdivisions that followed 281 and 46 north. Like Boerne, the dominant foundation story up here is water on slopes, not deep clay.

SEEN IN BULVERDE THIS SEASON
  • Downhill-wall settlement on slope lots
  • Gutterless rooflines on grade
  • Caliche pocket variability
  • Septic-and-well water routing

The newer subdivisions add the mass-grading factor: engineered pads cut into hillsides put placed fill under one side of many homes. Fill that stays dry behaves; fill that catches the roofline's water consolidates, and the downhill wall follows it.

AREAS WE SERVE IN BULVERDE AND SPRING BRANCH: THE MASTER-PLANNED JOHNSON RANCH OFF 281, THE ACREAGE TRACTS ALONG 46 AND FM 1863, AND THE RANCH-STYLE SECTIONS NORTH TOWARD THE RIVER CROSSINGS — THE HILL COUNTRY LEG OF OUR WEEKLY ROTATION, FREE INSPECTIONS INCLUDED.

What we see in Bulverde

The local patterns, specifically.

LOCAL PATTERN 01

Downhill-wall settlement on slope lots

Roof and surface water concentrating at the fill side consolidates it. Cracks cluster on the downhill wall while the uphill side stays bolted to rock.

LOCAL PATTERN 02

Gutterless rooflines on grade

Hill Country builds love clean eaves — and dump entire roof loads at the foundation line. On a slope lot, gutters and extensions are half the repair.

LOCAL PATTERN 03

Caliche pocket variability

Caliche bears beautifully until water softens it. Localized movement after a wet winter, at a spot that was stable for years, is the caliche-pocket signature.

LOCAL PATTERN 04

Septic-and-well water routing

Acreage lots route a lot of water deliberately — drain fields, well overflow, rain capture. When routing changes near the house, foundations notice within a season or two.

The local soil story: Limestone and caliche with shallow soil cover: minimal shrink-swell, high sensitivity to drainage. Cut-and-fill pads on grade are the main movement source — native rock under the uphill half, placed fill under the downhill half, and the difference shows when water finds the fill.

What the USDA maps here

The USDA maps the dominant soil under Bulverde as Lewisville — high shrink–swell (linear extensibility ≈ 7.5%). Expect real seasonal movement here — it’s the kind of ground where small problems caught early stay small.

See the Lewisville soil series at USDA

The ground under Comal County's edge

Bulverde sits on Glen Rose limestone — thin soil over rock, not deep clay.

Bulverde stands at about 1,096 feet where U.S. 281, State Highway 46, and FM 1863 cross, roughly twenty-six miles north of downtown San Antonio on the Edwards Plateau. The bedrock is Cretaceous limestone — the Glen Rose formation — and it gives the area its karst topography, its springs, and its thin, rocky soil. This is grazing land by nature: fertile but shallow mollisol over rock, the kind of ground that carried cattle and goats long before it carried subdivisions. What it is not is the deep, expansive Blackland clay that drives seasonal foundation movement down on the flats. On limestone, a slab has almost nothing beneath it that swells and shrinks with the rain.

So the movement source shifts from the soil to the sitework. Bulverde's growth came as ranch-style subdivisions cut into the hillsides along 281 and 46, and mass grading on rock leaves native limestone under the uphill half of a pad and placed fill under the downhill half. Fill that stays dry behaves; fill that catches a gutterless roofline's runoff consolidates, and the downhill wall settles with it. Add the caliche pockets that bear beautifully until water softens them, and you have the two things that actually move Bulverde houses — both of which the elevation survey maps with surprising clarity, right down to where the fill line runs.

The housing stock

Acreage homesteads and a 767-acre master-planned newcomer on the same rock.

Older Bulverde and Spring Branch is acreage country — ranch-style homes on large lots served by wells and septic, where a lot of water gets routed deliberately across the property. Drain fields, well overflow, and rain capture all move water on purpose, and when that routing changes near the house, foundations notice within a season or two. These are lower-density lots where drainage, not clay, writes the whole foundation story.

The newer face of Bulverde is master-planned: Johnson Ranch, a 767-acre community off 281 about nine miles north of Loop 1604, is building toward roughly a thousand homes across five neighborhoods — Corriente Estates, The Homestead, La Creciente, Oaks, and Vistas — on engineered pads notched into the slopes. Those pads mostly perform well, but they follow the corridor's timing: builder coverage lapses around year two, and the first real test comes when a hard drought meets a few years of pad consolidation. A dated elevation baseline, taken while the structural warranty is still open, is the objective record that turns a later worry into either a valid claim or documented peace of mind.

Neighborhood by neighborhood

Bulverde foundation repair, street level.

Johnson Ranch

A 767-acre master-planned community off 281 building toward ~1,000 homes across Corriente Estates, The Homestead, La Creciente, Oaks, and Vistas. Young engineered pads on the slopes: hairlines are normal, a dated baseline is worth taking while builder coverage is open.

Spring Branch acreage

Larger ranch-style lots on wells and septic north toward the river. Deliberately routed water — drain fields, well overflow, rain capture — is the variable here; movement usually tracks a change in that routing, not the seasons.

The 46 & FM 1863 corridors

Established homes on cut-and-fill pads along the highways. Native limestone under the uphill half, placed fill under the downhill — the fill side settles where a gutterless roofline concentrates water on it.

The 281-north slope lots

Newer hillside sections where mass grading did the heavy lifting. Caliche pockets that bore beautifully for years can move after a wet winter softens them — localized, and clearly read on the elevation map.

Our work near Bulverde

Real foundation repair across Bulverde and the corridor.

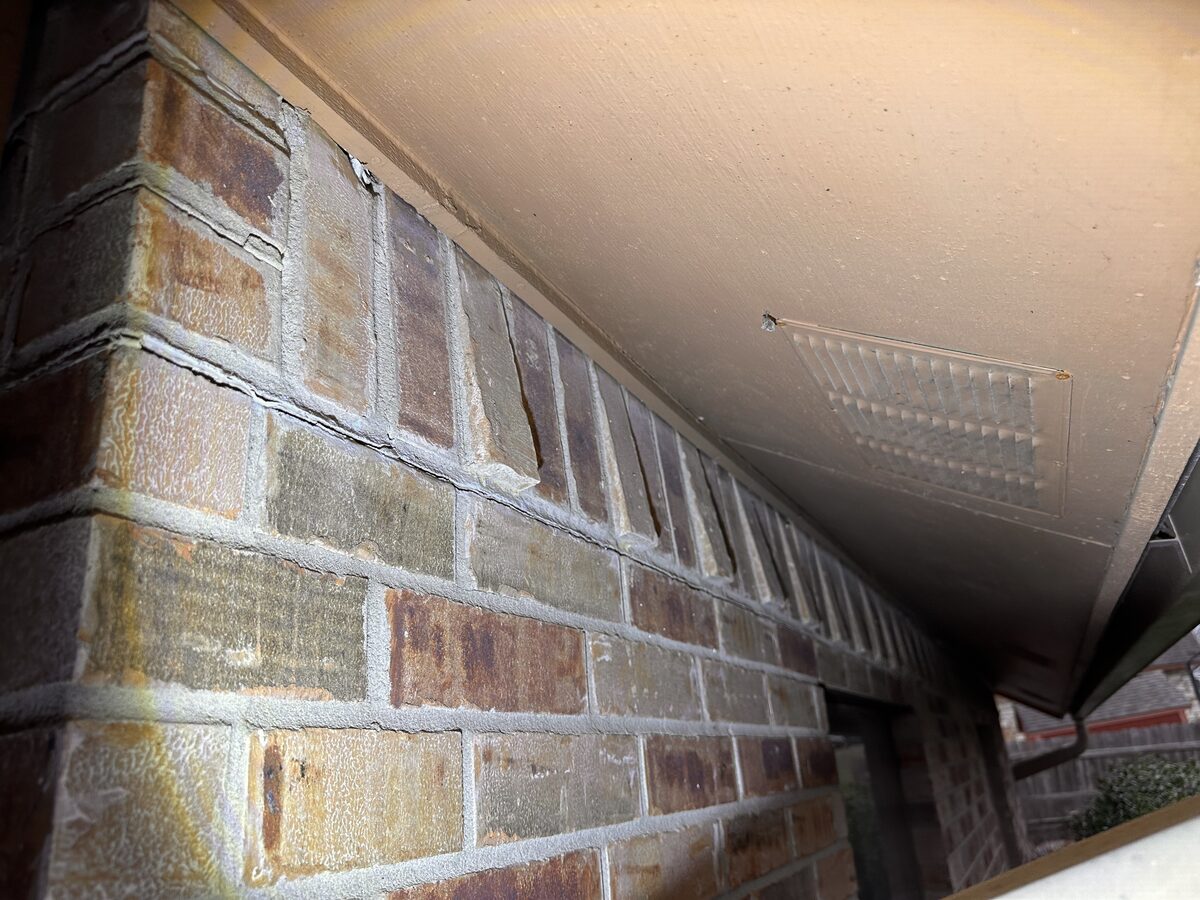

Widening gap between the top course of brick veneer and the porch soffit, a sign the foundation has settled
Separation gap between top brick course and porch soffit — exterior damage of the kind Motmot repairs on homes like those across Bulverde.

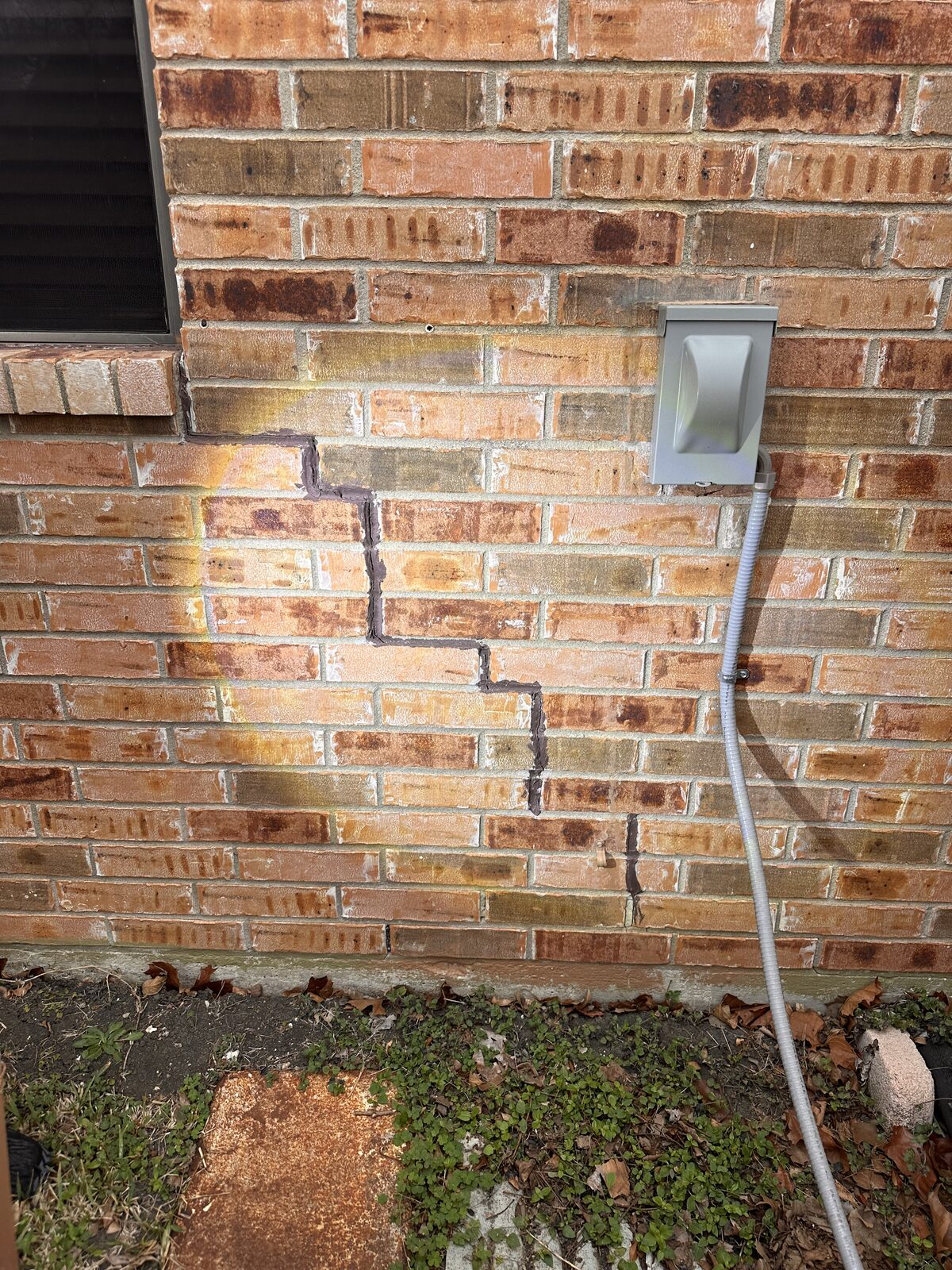

Stair-step crack in brick veneer below a window beside electrical conduit, a classic indicator of foundation settlement
Stair-step crack in brick veneer below window beside electrical conduit, typical of the exterior foundation damage Motmot repairs near Bulverde.

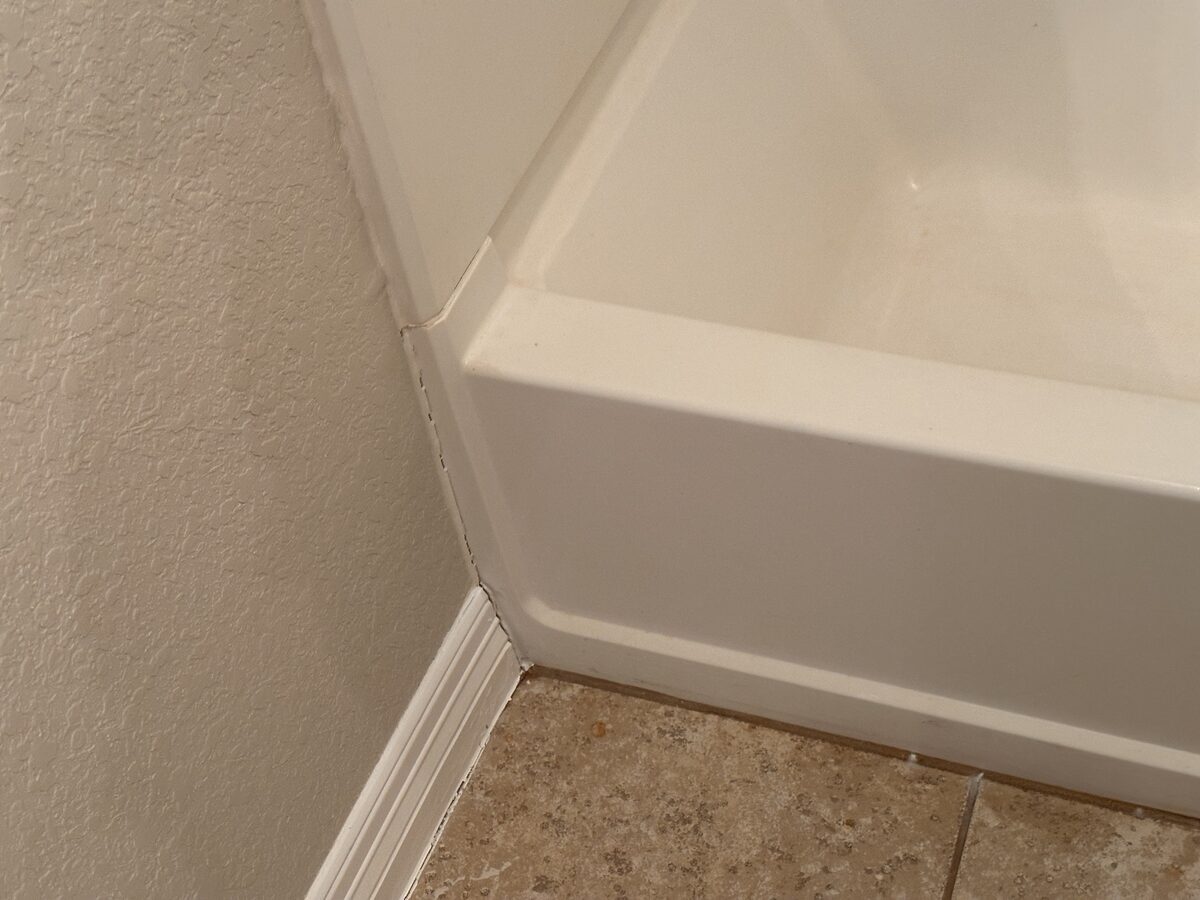

Baseboard separating at a wall corner beside a shower base, caused by foundation movement
Baseboard separation at wall corner beside shower base — interior settlement evidence like Motmot finds on homes near Bulverde.

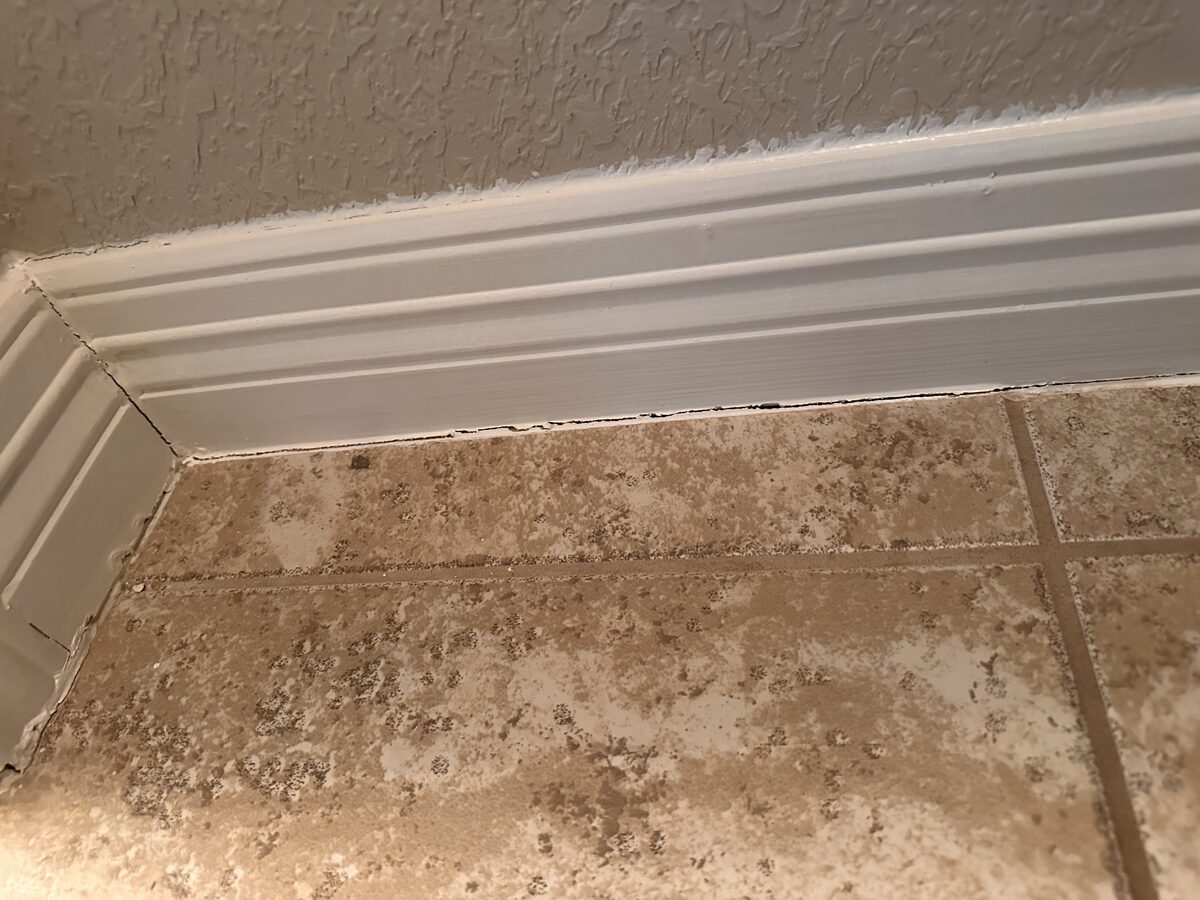

Baseboard pulling away from a travertine tile floor as the slab settles beneath the home
Baseboard pulling away from travertine tile floor, angled close view — an interior warning sign of the kind Motmot documents on homes like those across Bulverde.

Your nearest Motmot office

San Antonio (Main Office)

4402 Vance Jackson Rd Ste 206, San Antonio, TX 78230. Call or text (210) 816-0034.

Open 24 hours

Our main shop at Vance Jackson and Loop 410 runs the San Antonio metro daily — and a second office in San Marcos covers the upper corridor.

Bulverde specifics

Asked by Bulverde homeowners.

Because that wall probably isn't on rock. Cut-and-fill pads put placed fill under the downhill portion of most slope homes, and fill settles where water reaches it. The elevation map shows the fill line with surprising clarity.
Yes — and often shallower than clay-country installs, since stable bearing is close. Where rock is at the surface, the fix shifts toward fill-side support and drainage correction rather than deep piers. The ground decides; we just read it.
Through Bulverde and Spring Branch to the Comal-Blanco county line — the whole 281/46 wedge is in our normal rotation. No trip fees.
