Chimney Pulling Away From the House, What It Means

A chimney pulls away from the house because it usually stands on its own footing, poured separately from the house foundation and often shallower, and because its height works against it. A tall, heavy, stiff column of masonry behaves like a lever. A small tilt where the footing meets the soil becomes a visible gap where the chimney meets the roofline, which is why the separation almost always shows first at the flashing while the base still looks tight. The house can be sitting perfectly still while this happens. Sorting out which footing moved, and how fast, is the job, and you can start it from your own yard.

Why the chimney moves before the house does

Three things work against a masonry chimney, and none of them apply to the rest of the structure the same way.

It stands on its own concrete. On most homes the chimney footing was poured as a separate pad, sometimes to a different depth than the perimeter beams, sometimes on soil that was backfilled rather than cut. The house and the chimney are attached where you can see them, but below grade they are two structures that can move independently.

The pad is small and the load is not. A masonry chimney concentrates several tons on a few square feet of soil, more pressure per square foot than most of the house puts on its own footing. Small pads on expansive clay settle sooner than long continuous beams, because a beam bridges a soft spot and a pad simply sinks into it.

The lever arm multiplies everything. Run the numbers on a footing about thirty inches across. If one edge drops a quarter inch, the tilt carried up a twenty foot chimney swings the cap roughly two inches. Nobody notices a quarter inch of settlement. Everybody notices a two inch gap at the roofline.

Add the location, right at the drip edge of the roof where clay swings hardest between soaked and baked, and the chimney becomes the first mover on many houses. After many years of measuring these, my working expectation walking up a driveway is that the chimney moved and the house mostly did not.

Start with the gap at the flashing

You can learn most of what matters with your feet on the ground. Stand back far enough to see the whole chimney and sight its edge against a corner of the house. A lean reads clearly against a straight reference. Then look where the chimney passes the roof. The flashing and counterflashing were installed tight to the brick, so they work as a built-in gauge. Metal pulled away from the masonry, a sealant joint that has been redone more than once and torn again, or daylight between the counterflashing and the brick all say the chimney has moved since the roof was done.

Then run the one comparison that tells you the mechanism. Check the width of the gap between chimney and wall up high, near the roofline, and again down low, near the ground. Wider at the top means the chimney is rotating, which points straight at the footing. Roughly even from top to bottom means the whole column is shifting as a unit, less common and worth professional eyes sooner. Inside, the same movement shows as a gap opening around the fireplace surround or a cracked hearth.

Photograph both spots with something in frame for scale, write the date on the photos, and check again in a month. A gap that holds its width is history. A gap that grows is a project.

Chimney footing or house foundation

Most of the time the answer is the chimney footing, alone. The wall beside the chimney has no stair-step cracks, the doors and windows on that side of the house work, the floors inside read level, and the only thing moving is the column of brick outside. That is the cleaner problem, because stabilizing one small pad is about as contained as foundation work gets.

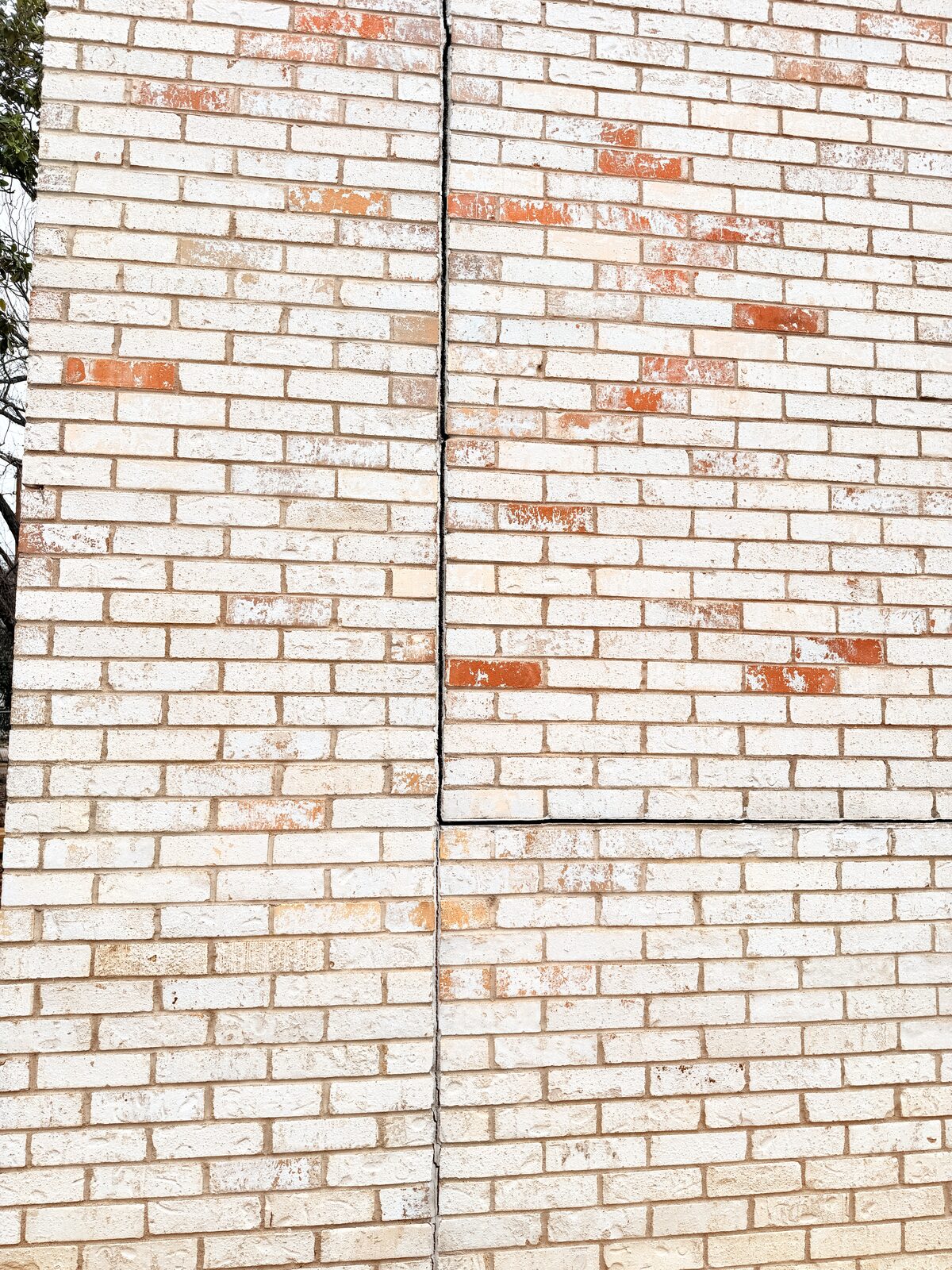

The picture changes when the wall joins in. Stair-step cracks working through the brick near the chimney, openings that rack out of square on that end of the house, a floor that slopes toward the same corner, those say the house foundation is part of the story and the chimney is only the loudest part of it. Run the rest of the house against the full checklist of foundation warning signs and see how much company the chimney has.

A floor elevation survey settles it either way, because it puts numbers on the house side instead of impressions. And the finding is not always repair. About a third of our inspections end with no repair needed, and old chimney gaps that quit moving years ago account for some of those.

When a leaning chimney turns urgent

A masonry chimney weighs several tons, and once its tie to the house opens up it is close to a freestanding column standing over your roof, your driveway, or the wall of a bedroom. Here is the line we use, without drama.

An old, narrow, stable gap is a monitoring job. Houses carry separations like that for decades, and the dated pencil marks from last month are how you prove yours is one of them.

An active one moves up the list. A gap visibly wider than your photos from a few weeks back, bricks that have shifted or loosened, fresh mortar debris in the gap or on the roof, or a lean you can see from the street, that chimney should be measured within days, not seasons. Keep the play area and the parked cars off that side of the house until it has been. Wind and soaked soil after a long drought are exactly the conditions that turn slow movement into fast movement, so the week after a big storm is a good week to look at those photos again.

How the repair works

Underpinning a chimney is regular pier work at small scale. The crew excavates at the footing, drives steel or hybrid piers beneath the pad until each one reaches refusal, then lifts the footing back toward level. Because the pad is small, the pier count is small, often just a few, and piers run $600 to $1,000 each installed. Most chimney stabilizations land in the low thousands as a result. The piers carry a lifetime transferable warranty, and the yearly performance follow-up inspection afterward is how we confirm the lift held.

The lift usually closes most of the gap, since rotating the footing back rotates the column back with it. Whatever stays open gets repointed, and the cracks the movement left in the surrounding wall are handled with foundation crack repair once the footing is stable, not before. Sealing a gap that is still moving buys one tidy season of caulk.

If the masonry itself has deteriorated, loose bricks through the stack, a failed flue, a chimney that has been taking on water for years, that part is a mason's call and occasionally rebuilding wins. Stabilizing first is still the right order, because nobody should rebuild a chimney on a footing that is still moving.

What to do about it this week

Mark the gap with a dated pencil line, photograph it high and low, and sight the lean from the street. If the gap is new, growing, or wide enough to slide your fingers into, book a free foundation inspection and mention the chimney when you do. Our ICC-certified inspectors measure the lean, shoot the floor elevations inside, and tell you which footing moved, how much, and whether it needs piers, monitoring, or nothing at all. The answer comes with numbers instead of a guess.
