How Deep Do Foundation Piers Go in Central Texas

Most foundation piers in Central Texas stop somewhere between 15 and 30 feet down. On the north side of San Antonio, where limestone sits close to the surface, refusal can arrive near twelve feet. In the clay belts south and east of downtown, some drives run past thirty. That spread is the whole answer, and the reason it is a spread rather than one tidy figure is that pier depth is not chosen. The ground decides where a pier stops, and the pressure gauge on the driving ram proves it, one pier at a time.

Why there is no single number

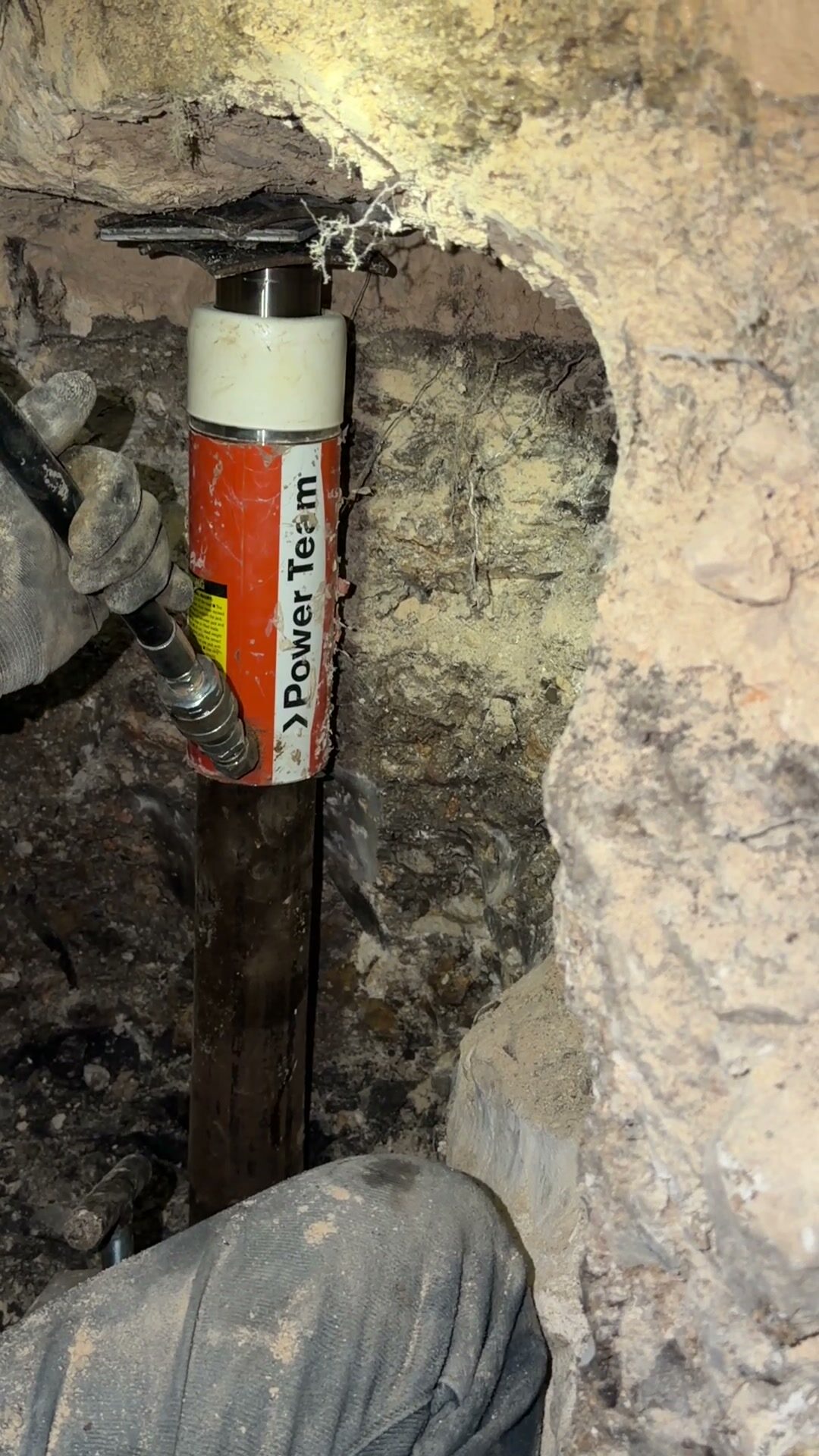

A steel pier is not cut to length in advance. It goes into the ground as short pipe sections, each one pressed down hydraulically with the weight of the house acting as the press, and a gauge reads the pressure it takes to advance every section. Through the seasonal clay the pressure climbs slowly. Then, at some depth, the tip meets material that will not yield at pressures well above the load that part of the house will ever place on the pier. The gauge spikes, the drive is over, and that point is refusal. It is a measurement, not a decision. The mechanics behind the gauge, the driving log, and the questions that separate a recorded refusal from a sales slogan are walked through in what driven to refusal actually means. The jobsite side, pit sizes, section by section driving, and cleanup, lives on the steel pier installation page.

The consequence for depth is simple. Nobody picks 18 feet or 27 feet off a chart. The crew keeps adding sections until the ground quits yielding, and where that happens depends entirely on what is down there.

How depth runs across the corridor

Which is why the answer changes with your address. The I-35 corridor sits on a geological seam, Hill Country limestone to the west and north, deep Blackland and Taylor clays to the east and south. Which side of that seam your house sits on shapes almost everything about how it behaves, and the full picture is in Texas clay soil and limestone foundations. For pier depth, the seam splits the map into three broad zones.

On the north side and out toward the Hill Country, rock comes up close to the surface. A pier there can reach refusal near twelve feet, and the crew usually knows it is coming before the gauge says so, because the spoil coming out of the hole turns pale and chalky within a few feet of grade and the digging slows right down.

Across most of the corridor, refusal commonly lands between 15 and 30 feet. And south and east of downtown, where the clay formations run deep, some drives push past thirty before the tip finds strata that will not move. Same pier, same ram, same crew. Different ground.

Two houses a few miles apart can record very different depths and both be exactly right. For that matter, two piers on the same house usually differ, because the firm strata under a lot is not flat. Rock shelves dip, clay seams thicken, and an installation that follows the ground faithfully will show that variation in its numbers.

Where the moisture active zone fits

The footage that matters most is not the total. It is the footage past the soil that moves. The upper band of clay, roughly six to twelve feet down in our corridor, swings wet and dry with the seasons, swelling when it rains and shrinking through drought. Engineers call it the moisture active zone, and a pier only does its job once it bears below that band, on ground the weather cannot reach. Everything above the line is soil the pier has to pass through, not soil it can rest in. That is the plain language version. The engineering version, uplift gripping the shaft, anchor zones, and why drilled piers carry steel reinforcement, is in the write-up on drilled piers and the moisture active zone.

Why depth is not a quality contest

Homeowners trade pier depths over the fence the way anglers trade fish stories, and the bigger number usually wins the conversation. It should not. Depth reflects the ground, not the workmanship. A pier proven onto firm strata at 15 feet is fully seated, while a deeper pier standing in soft material is not, whatever the tape measure says. When two bids quote different typical depths, that tells you what soil each contractor expects to find, not which crew does better work.

The number worth asking about is not footage. It is proof. Ask whether the pressure readings are recorded for every section of every pier, and whether those readings come to you in the final paperwork. A contractor who drives to a verified refusal hands that record over gladly, because it is the best evidence in the file. It is also the reason our steel and hybrid piers carry a lifetime transferable warranty. A pier that stopped on ground that refused to move has no mechanism left for settling, however many feet of pipe it took to get there.

How to judge depth in a bid

Depth belongs in the conversation about effort, not the conversation about quality. Piers run $600 to $1,000 each, and a deep clay belt drive spends more sections and more crew time earning its seat than a pier that finds shallow rock. What no bid can do is promise a depth in advance, because refusal is found, not scheduled. Treat a proposal that guarantees the same fixed depth for every pier with suspicion, in either direction. The ground under your slab has not read the proposal.

Before any of that, get the floor measured. Our ICC-certified inspectors run a free elevation survey first, and about a third of our inspections end with no repair needed, which means the depth question never comes up at all. When piers do go in, the depths get recorded pier by pier, the warranty transfers with the house, and a yearly performance follow-up inspection confirms the elevations are holding.
