The ground truth

Texas clay soil and limestone foundations, explained

The I-35 corridor runs along one of the great geological seams in North America: the Balcones Escarpment, where Hill Country limestone meets the Blackland Prairie's deep expansive clays. Your foundation's behavior is mostly a question of which side of that seam it sits on, and how the weather treats it.

The Blackland and Taylor clay formations east of the highway are classified very high shrink-swell: they absorb water and expand, dry out and contract, changing volume enough to lift or drop a slab edge by an inch or more in a single hard season. West of the seam, thin soils over limestone move far less, but punish bad drainage instead. Every page on this site ultimately traces back to this paragraph. We scored 331 ZIP codes across the corridor from the same USDA soil measurements, so the numbers behind Central Texas foundation movement are free to read and download.

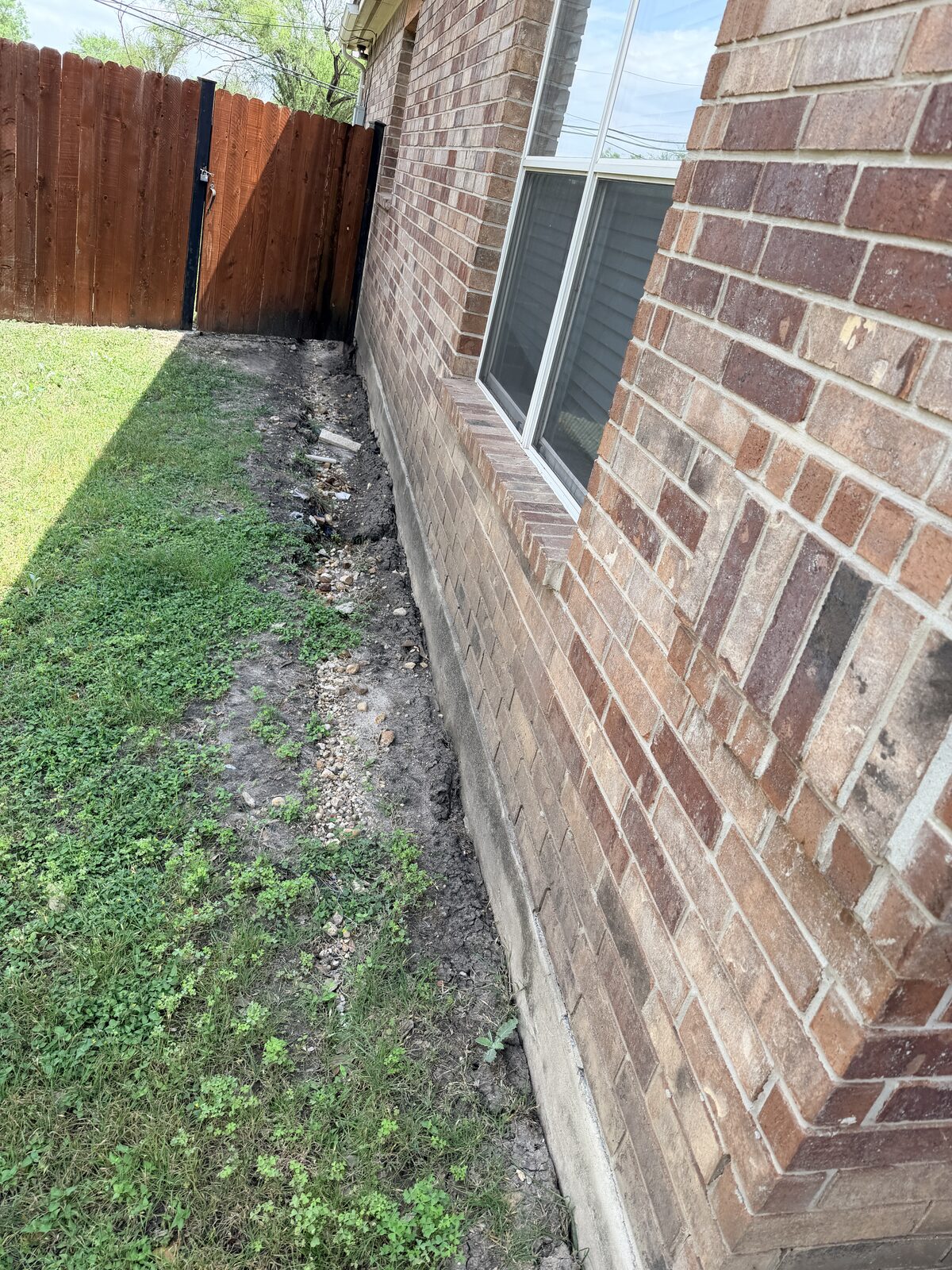

Exposed slab edge where soil has pulled away from a brick home's foundation during dry conditions
Expansive clay shrinks in dry weather and pulls away from the slab edge.

Play with the physics

Two interactives that explain 90% of foundation repair.

INTERACTIVE · WHY TEXAS CLAY MOVES YOUR SLABEDGE MOVEMENT: −1.1″
levelactive clay zone · 6–12 ft deepstable strata
Drought: clay loses moisture from the perimeter inward and shrinks. The slab edges lose support and settle, about 1.1″ here. This is why most Central Texas foundation symptoms first show up in late summer: stair-step brick cracks, doors rubbing near corners.
INTERACTIVE · SETTLEMENT VS. DIFFERENTIAL MOVEMENTDIFFERENTIAL
−2.1″0.0″0.0″0.0″0.0″FLOOR ELEVATION SURVEY · WHAT OUR ZIPLEVEL MAPS ON EVERY INSPECTION
Differential movement: one part of the foundation is 2.1″ lower than another. The structure bends across the difference. That’s where brick cracks stair-step, drywall tears, and doors rack. Piers go where the differential is, not everywhere.

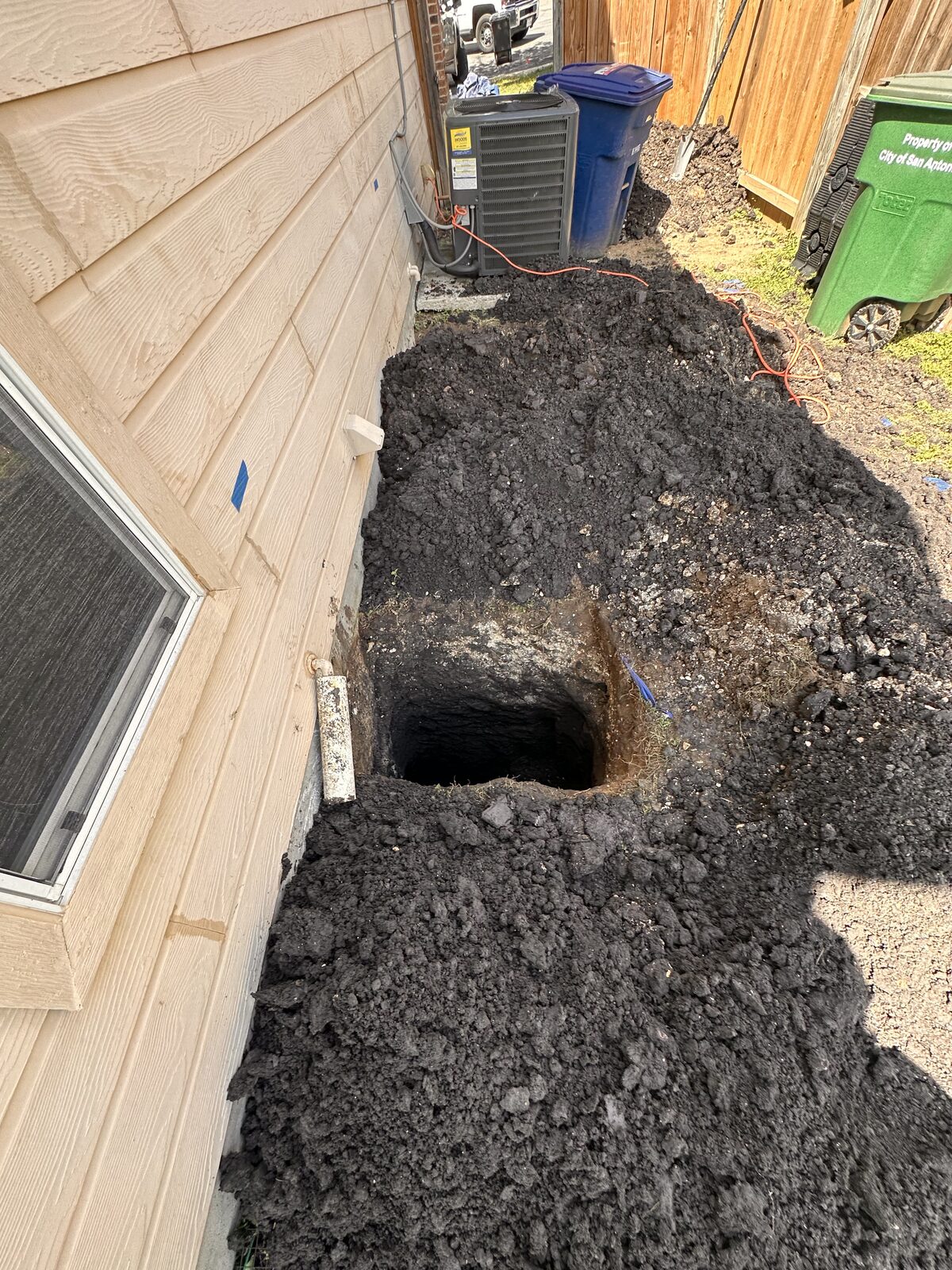

Pier hole dug through dark clay beside a home's slab edge during foundation repair, near the AC unit
Dark expansive clay beside the slab, the soil behind most Central Texas foundation movement.

Live with it well

The Central Texas foundation maintenance calendar.

Clay rewards consistency. An hour a season of unglamorous moisture management prevents more damage than any repair fixes. On a raised home, those seasonal habits are the whole of pier and beam foundation maintenance.

SPRING

  • ✓Clean gutters before storm season
  • ✓Walk the perimeter after big rains, note pooling
  • ✓Photograph existing cracks (your annual baseline)

SUMMER

  • ✓Start soaker hoses when soil pulls from the slab
  • ✓Water evenly, all sides, not just the brown grass side
  • ✓Watch doors near corners; note new rubbing

FALL

  • ✓Compare cracks against spring photos
  • ✓Extend downspouts before winter rains
  • ✓Book inspections now if summer opened anything

WINTER

  • ✓Check grading: soil should fall away from the slab
  • ✓Trim irrigation near the foundation
  • ✓Plan tree work, root barriers install best now

Deeper dives: why drought does the damage · signs worth watching · your city's specific soil profile on the service areas pages, and the statewide overview of how Texas soil moves foundations.

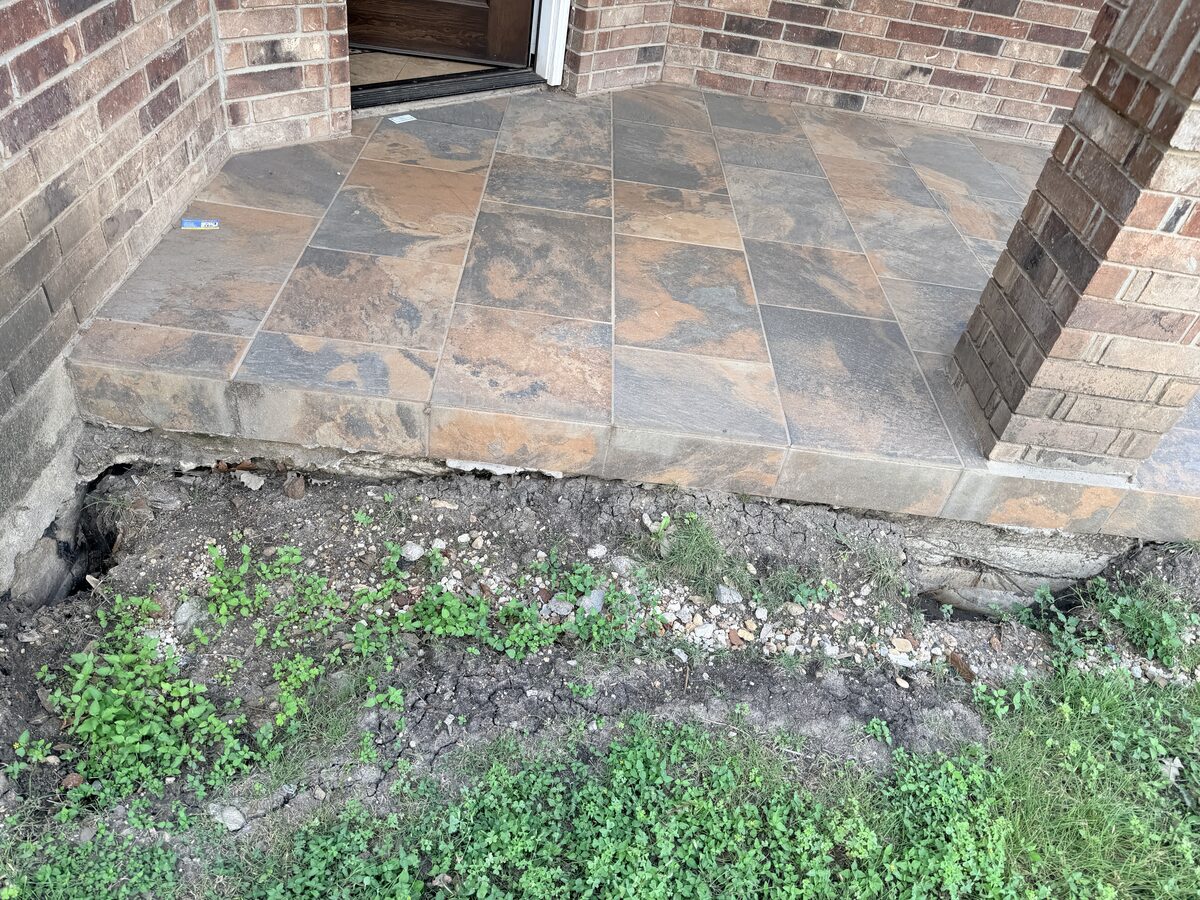

Erosion along a flagstone patio edge exposing the slab foundation beneath a brick wall
Eroded clay at a patio edge leaves the slab footing exposed to seasonal moisture swings.

The engineering underneath

What the geotechnical engineers actually design for.

The interactives above explain the behavior. The engineering profession has spent decades turning that behavior into design rules, and the Foundation Performance Association publishes the consensus versions. A few of its core ideas explain why repairs here are built the way they are.

The moisture active zone sets pier depth. Engineers define the moisture active zone as the depth of clay, measured down from the surface, where moisture actually rises and falls with the seasons. Below it, the soil stays at a steady moisture and doesn't swell or shrink. That depth is what governs how deep a drilled pier has to reach, because a pier only gets stable support once it passes below the zone that moves. It's the reason piers are engineered to a depth rather than driven to a fixed number, and the reason repair crews rely on steel piers driven to refusal when the active zone here runs deeper than a short pier can clear.

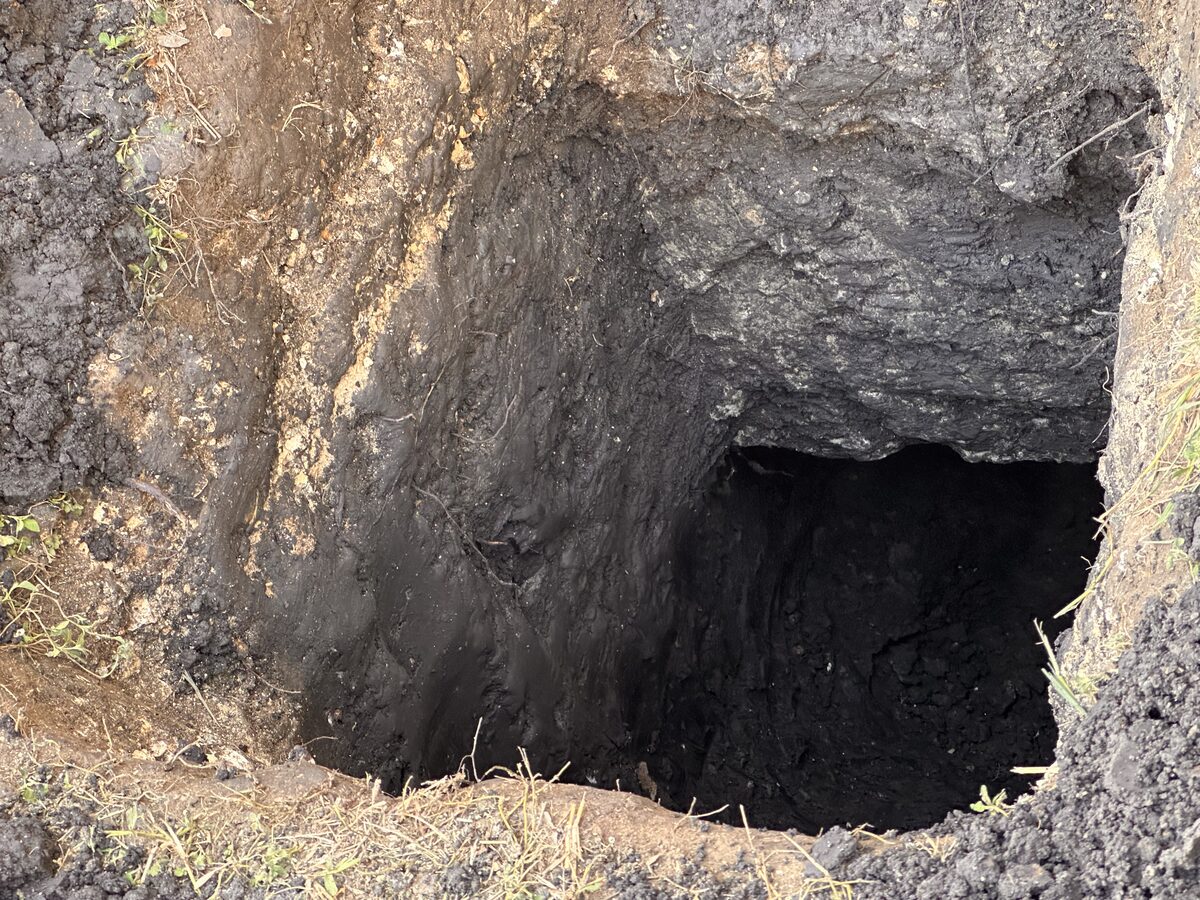

Hand-dug access pit opening into a tunnel beneath a slab foundation in dark clay soil
A tunnel through dark clay beneath the slab shows how deep the active soil zone runs.

Expansive clay lifts, it doesn't only settle. As the clay in the active zone takes on water and swells, it grips the sides of a pier shaft and pushes it upward, a force the Foundation Performance Association's drilled-pier design procedure treats as uplift. A pier has to be long enough to anchor below the active zone and reinforced with steel so the shaft can resist that upward pull in tension without cracking. Heave (swelling from added moisture) and settlement (shrinking as moisture leaves) are separate mechanisms moving in opposite directions, which is why a diagnosis has to name which one is happening before anyone talks about a fix.

There's more than one right design. The Foundation Performance Association's catalog of foundation design options shows several valid approaches on expansive soil. Some slabs are stiffened so heavily that they resist the soil by sheer rigidity; other systems suspend the structure on deep foundations and simply avoid transmitting the soil's movement into the house at all. One tool from that second approach is the void space: a gap built beneath the grade beams so the clay can swell up into the void instead of lifting the foundation.

Under all of it sits the same principle behind the maintenance calendar above. The Foundation Performance Association's maintenance guidance stresses that uniform soil moisture produces uniform movement and the least distress, while uneven moisture is what actually damages a house. Piers handle the elevation the clay has already changed; keeping the moisture even is how you keep it from changing again.

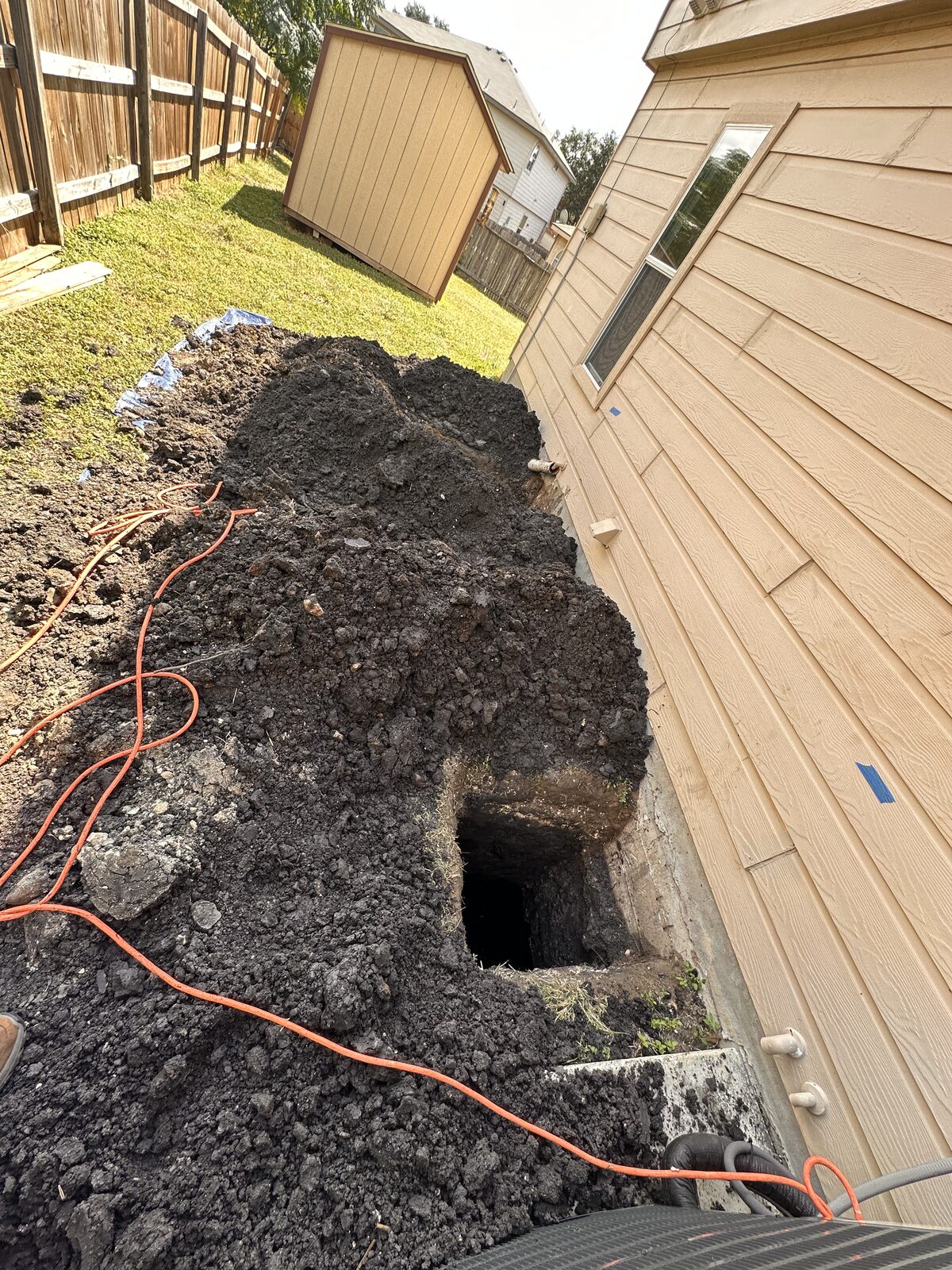

Side-yard excavation with clay spoil piled beside a home's foundation during repair, shed and fence beyond
Clay spoil from a foundation dig shows the dense, moisture-reactive soil under area homes.

The limestone side of the corridor

Is limestone a good foundation for a house?

Yes. Sound limestone is the steadiest bearing ground in this corridor, and a foundation resting on it has nothing underneath that wants to swell and shrink with the rain gauge. The catch is that limestone country is almost never uniform. Thin soil pockets, clay-filled seams and placed fill sit on top of the rock, and those are the parts that move. So the rock is rarely the problem, and what sits between it and your foundation usually is.

That is the real challenge for limestone as building ground. West and north of the Balcones Escarpment the rock comes up close to the surface, so a builder cuts into the hill on the uphill side and places fill on the downhill side to get a flat pad. The house then sits with compacted native rock under one half and placed fill under the other. Rock does not settle. Fill does, as soon as water finds it, and on a slope water always tries. That is why so many Hill Country inspections end in drainage correction and fill-side support instead of the long perimeter pier runs a clay-belt town needs. Boerne sits squarely in that pattern, and so does the west side of New Braunfels.

The other limestone failure is the pocket. Shallow rock is uneven, and where its surface dips, clay collects in the low spot. A house can cross that boundary with two corners bearing on rock and one sitting over a few feet of clay. Through a dry August the rock corners hold their elevation exactly while the clay corner shrinks and drops, and the difference between them turns up as doors that quit latching on one end of the house. Those transition streets, where clay pockets sit over rock, produce some of the sharpest differential movement we measure anywhere in the corridor. It is also why an address on the limestone side is not an all-clear, and why Helotes and the north side of San Antonio still get measured the same way the clay belt does.

Pale caliche and rock spoil piled beside a pier hole at the base of a brick wall
Pale, chalky spoil from a pier hole. Where the rock is shallow the crew is through the soil and into it within a few feet of grade, and the digging slows right down.

Water behaves differently on rock, too. Limestone does not absorb water the way clay does. It carries water along joints and fractures, which is what makes this karst country and what feeds the springs at New Braunfels and San Marcos out of the fractured limestone edge. That has a practical consequence for a homeowner. Surface water that would sit and soak into clay disappears into a joint on rock and travels, so a downspout dumping at one corner does not always show its damage at that corner. The fix is the same either way, and it is unglamorous. Discharge the gutters well past the foundation and keep the soil falling away from the wall.

Houses built on stone

How long does a limestone foundation last?

Longer than most of the house on top of it. Limestone laid up as a stem wall or a pier carries compression more or less indefinitely, and the stone has no service life the way a wood sill or a coat of paint does. What ages is the mortar between the stones, and what moves is the ground underneath them. When somebody says a limestone foundation is worn out, what they usually mean is that the mortar has failed or a section has settled, and the stone itself is still perfectly good.

A stone foundation in this part of Texas is almost always a raised one. Most houses built in Central Texas before about 1960 stand on some version of pier and beam, and in the older Hill Country towns and the near-downtown neighborhoods that often means a perimeter stem wall and interior piers laid up in local limestone, with wood beams and joists carried on top. It behaves nothing like a slab. A slab is one rigid plate, so when the soil under an edge drops, the whole plate tries to bend and the strain telegraphs into the walls as diagonal cracks off door and window corners. A stone stem wall is dozens of stones held in a line by mortar, not one piece, so when the ground under a section drops, the wall does not bend. It opens. The movement reads as a crack stepping through the mortar joints, and above it as a floor that slopes and a door that racks.

Closeup of a limestone wall where a crack runs through the mortar joints between the stones
The crack runs through the mortar and around the stones. Mortar is the softest material in a limestone wall, so it gives before a stone does.

The damage almost never starts in the stone. Mortar is the softest material in the wall, so a joint moves before a stone breaks, and old lime mortar erodes wherever water runs across it. At grade, splash-back and standing water wash the fines out from under the footing course, and that length of wall settles into the gap. Wood is the other weak link, because a stem wall exists to hold the sill plate up out of the dirt. Once grade rises against the wall or the crawlspace stays damp, the sill rots while the stone below it is untouched. That is a wood repair sitting on a sound foundation, and it gets misdiagnosed as a failing one often enough to be worth saying plainly.

So the maintenance calendar above matters as much on rock as it does on clay, just with a different enemy. On a stone foundation the enemy is concentrated water at grade, and gutters, downspout extensions and soil that falls away from the wall do more for it than any product sold for the purpose. Under the floor the rules are the same as any raised house, where crawl space moisture control is what keeps the wood on top of the stone sound.

How to fix a limestone foundation?

Fix the ground first, then the wall. On a limestone or rubble stem wall the sequence is stabilize, then reset or repoint, and running it the other way around spends the money twice. Stabilizing means supporting the settled length from below so it stops moving. Resetting means putting displaced stones back in plane and repacking the joints once it has. A stone foundation usually needs that treatment along a section rather than a replacement, and the measurements are what draw the line between the two.

That line is not the size of the crack. It is whether the wall is still carrying its load in a straight line. A stem wall with a stepped crack through the mortar joints, stones still in plane and no bulge, is a repair. Support the settled length, then repoint. A wall whose courses have pushed out of plane, where stones have dropped or rotated or you can see daylight through the thickness, has stopped acting as a wall in that stretch, and that stretch gets rebuilt on a proper footing. The rest of it normally stays exactly where it is.

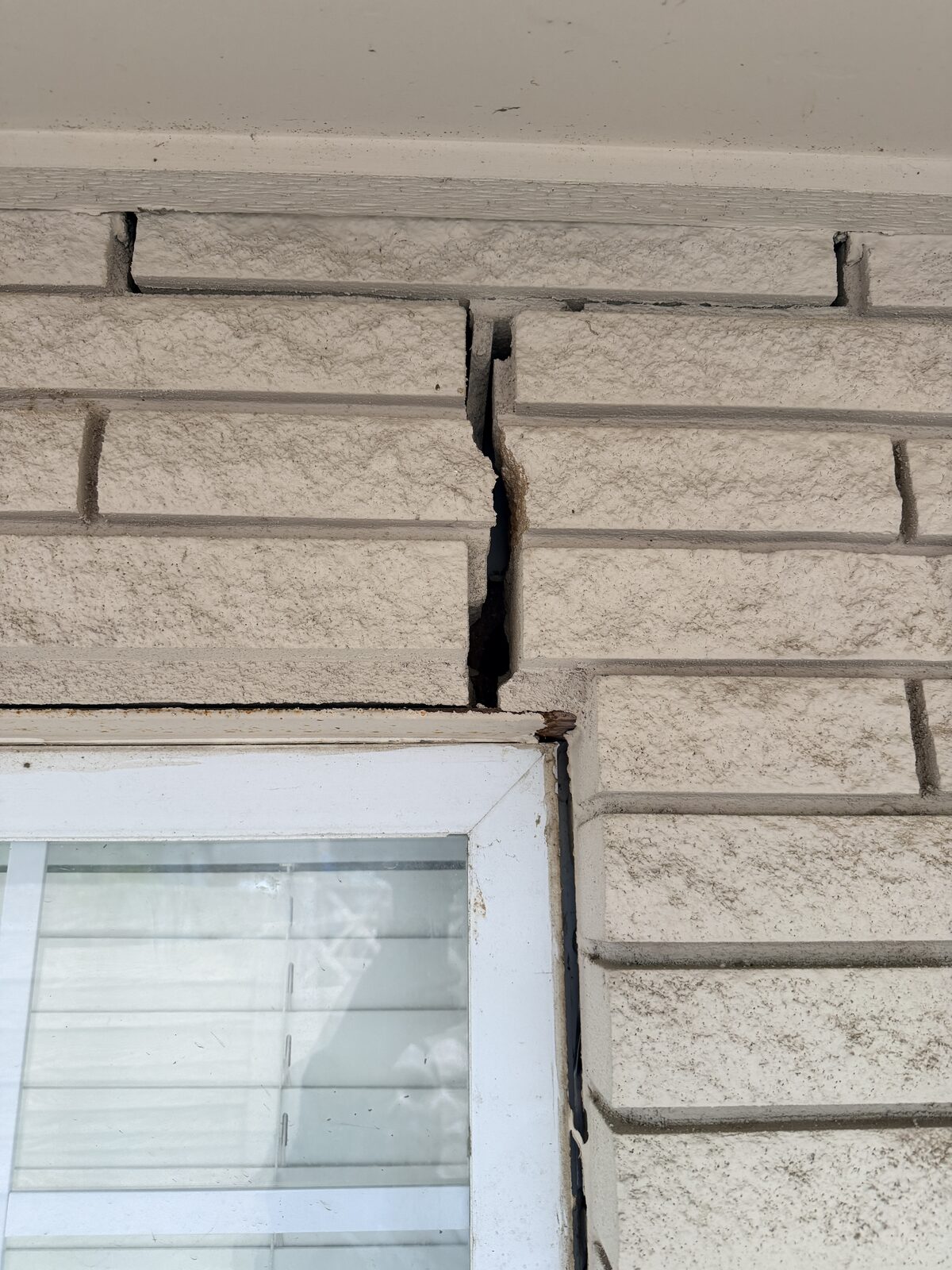

Stone courses separated and shifted out of line above a window opening
Courses separated and shifted out of line. Once stones have moved relative to each other, filling the joint alone does not put that length of wall back to work.

None of that gets decided from a photograph. A free elevation survey reads the floor above in tenths of an inch and tells you which length of wall has dropped and how far, and going under the house tells you what the beams, sills and piers are doing on top of it. San Antonio puts structural foundation repair under a permit and a licensed engineer, so the scope on a stone foundation is written against measurements and reviewed by an independent engineer rather than eyeballed off the driveway.

Repointing is the last step, not the first. Fresh mortar packed into a joint that is still moving cracks again on the next cycle, the same way stair-step brick cracks get tuckpointed and then crack again along the fresh mortar. Stabilize, let it sit through a season, then close the joints. If a bidder wants to repoint a stone foundation without measuring the floor above it first, that is cosmetic work being sold as a repair.

Crumbling stone is a separate question from a moving wall. Weathered limestone that has spalled at the face has usually been kept wet for years by splash-back, an overflowing gutter or a sprinkler head aimed at the wall, and it gets cut back to sound stone and repacked, or the stone gets reset. One cracked stone on its own is not structural news. A line of cracks stepping across several stones and their joints is, because that line is the shape of the ground moving underneath.

The service side of all this is ordinary raised-house work. Re-leveling with shims and new blocks, beam and sill repair where the wood over the stone has gone, drainage correction at grade, and pier support underneath only where the wall itself has dropped. That list is the same on a stone foundation as on a concrete one, and pier and beam repair walks each scope, with the crawlspace half covered under crawl space repair. Motmot is inspector-led and ICC-certified, and works alongside independent Texas-licensed engineers on the scopes that call for one.

Straight answers

Clay and limestone questions, answered straight.

East of I-35, almost certainly. The Blackland and Taylor formations run the corridor's length. West of the highway, soils thin toward limestone, but clay pockets and fill soil keep the question local. The practical answer comes from how your specific lot behaves, which is what the elevation survey reads.
Modern post-tension slabs are engineered for clay, and they help enormously. They bridge and stiffen. But no slab makes soil stop changing volume; it just spreads the movement. Moisture management and, where needed, piers below the active zone are the complements, not the alternatives.
In our corridor, the clay that responds to surface moisture typically extends roughly 6–12 feet down, deeper in severe droughts and near big trees. That's exactly why piers are driven below it, since support that bears beneath the active zone doesn't care what the weather does above.
Both, and they're different mechanisms. Drying clay shrinks and lets a slab settle; wetting clay swells and can heave a slab upward. The Foundation Performance Association describes heave as movement from adding moisture to expansive soil and settlement as movement from drawing it out. That's why a good diagnosis names which one is happening, because a corner that dropped in a drought and one that lifted after a wet winter don't get read the same way.
Because expansive clay doesn't only push down. As the soil in the active zone swells, it grips and pushes up on the sides of a pier, a force engineers call uplift. The Foundation Performance Association's drilled-pier design procedure has piers extend below the active zone into stable soil and carry steel reinforcement so the shaft resists that upward pull without cracking. A pier is designed for tension from swelling soil, not just the weight of the house.
The rock itself is not the challenge. Sound limestone is excellent bearing ground and does not swell or shrink with the weather. The challenge is that it is shallow and uneven, so what sits on top of it changes from one corner of a house to the next: a clay-filled pocket here, a few feet of placed fill there, native rock in between. Rock holds its elevation and the pocket does not, and that difference is what cracks a house. Cutting and filling a hillside pad creates the same split on purpose, with compacted native rock under one half of the house and placed fill under the other.
Yes, and it is the steadiest ground in this corridor to build on. A foundation bearing on sound limestone has nothing under it that changes volume with the rain gauge, which is why slabs on the shallow-rock side of the Balcones Escarpment stay quiet while slabs on Blackland clay ride the seasons. The question worth asking is whether the whole footprint reaches rock or only part of it, and how the pad was built where it did not.
Hard enough to carry a house without measurable settlement, and hard enough that a crew feels it the moment a shovel goes in. Digging a pier hole into shallow rock is slower than digging the same hole in clay, and the spoil comes out pale and chalky instead of dark and sticky. Hardness varies by layer, because the Edwards limestone is not one uniform slab of rock, and a soft weathered seam can sit right above a dense one.
It does not swell, which is the whole reason limestone ground is calmer than clay ground. Water moves through limestone along joints and fractures instead of soaking into the rock, which is what makes this karst country and what feeds the springs at New Braunfels and San Marcos. Wet limestone causes trouble at a wall rather than in the ground. Water running over a mortar joint year after year erodes it, and water at grade washes the fines out from under a stone footing, so the stone settles into the gap it made.
Yes, and most of them are joint repairs rather than stone repairs. A crack that steps through the mortar between stones gets repacked once the movement behind it has stopped. A cracked stone can be reset or replaced. The order matters more than the technique, because mortar packed into a joint that is still moving cracks again on the next seasonal cycle. Measure the floor above first, support whatever has dropped, then close the joints.
Find the water first. Limestone that is spalling or crumbling at the face has almost always been kept wet, usually by splash-back at grade, a gutter overflowing onto it, or sprinkler heads aimed at the wall. Correcting the water is the repair. Cutting the failed face back to sound stone and repacking or resetting the stone is the finish. Doing the masonry without moving the water only resets the clock.
The stone outlasts everything built on it. Limestone in compression has no service life the way a wood sill, a mortar joint or a roof does, so the lifespan of a limestone house is really the lifespan of its maintenance. Water kept off the walls and away from the footing, mortar joints packed as they open, and a dry crawlspace so the sill plate resting on the stone stays sound. The stone is not the part that runs out.
