Soil Pulling Away From the Foundation, What It Means
WHAT A GAP BESIDE THE SLAB USUALLY MEANS
| What you see | Usually means | Next step |
|---|---|---|
| Thin seam on every side in late summer | Normal shrink and swell of the clay | Steady watering, then watch it close |
| Wide gap on one side only | That edge is drying faster, often from a tree or a downspout | Water that side, fix the drainage, measure the floors |
| Gap still open after a wet month | The soil there stays dry, or some of it left | Check for a void and for cracks inside |
| Open space under the concrete | Water carried soil out from under the slab | Trace the water before filling anything |
| Gap plus sticking doors or new drywall cracks | The slab edge may have followed the soil down | Free floor elevation survey |
Soil pulling away from the foundation is, in most Central Texas yards, clay shrinking as it dries. Our clay swells when it is wet and shrinks when it is dry, and in a hot, dry stretch it pulls back from the slab edge and leaves an open seam along the concrete. A thin gap that opens in August and closes after the fall rains is normal clay behavior. The gap is worth a closer look when it is wide on one side only, when it stays open after a wet month, when there is open space under the concrete rather than beside it, or when doors and drywall inside start acting up on the same side. Until you know which one you have, don't fill it with sand and don't pour water into it.
Why soil pulls away from a slab in Texas
The ground between San Antonio and Austin holds a lot of expansive clay. Water slips between the flat clay particles and pushes them apart, so wet clay takes up more room than dry clay, and the swing between the two is large. The USDA's description of Houston Black clay, the textbook Blackland soil east of I-35, says that when it dries it opens cracks from half an inch to 4 inches wide that reach a foot deep or more, and that those cracks stay open for 90 to 150 days in most years. A slab sitting in that soil sees the same thing at its edge.

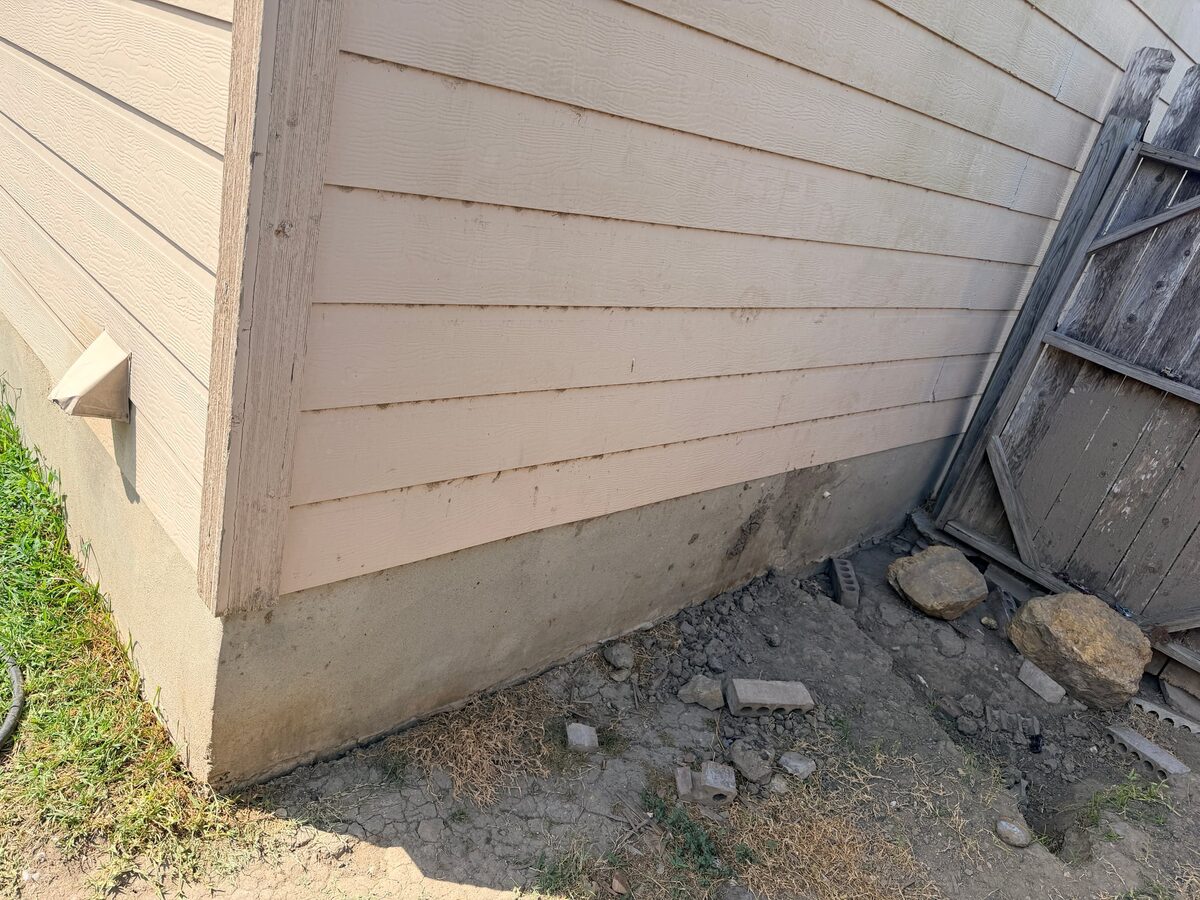

The edge goes first because it is the part of the ground the weather reaches. The soil under the middle of the house is shaded and covered, and it holds a fairly steady moisture all year. The strip along the perimeter bakes in the sun, loses water to the air, and gives it up to any tree or shrub with roots nearby. Corners dry fastest because they lose moisture on two sides. South and west walls run drier than the north side. A big live oak or pecan within reach of the slab pulls that strip drier still, which is why the gap is often widest on the side with the tree.
The same USDA description adds a detail that matters for what you do next. Water enters this soil quickly when it is dry and cracked, and very slowly once it is moist. An open gap is a fast lane straight down the side of your slab.
How wide a gap is normal
There is no code number for it, so read it the way we do in the field. A seam you can slide a finger into during late summer, roughly even along a wall and closing after a couple of good rains, is ordinary clay behavior. On Blackland clay in a hard drought a gap of an inch or two is not unusual, and it still tells you more about the weather than about the foundation.
Three things matter more than the width. The first is whether it closes. A gap still open after a wet month means the soil there is staying dry, or some of it left. The second is whether it is even. The same small gap on every side of the house means the whole perimeter is drying together, and a slab can ride that. A wide gap on one side and nothing on the others means one edge is losing moisture faster than the rest, and uneven moisture is what moves foundations here. The third is whether it comes back wider each year. Clay rarely packs back exactly the way it was, and a gap that grows from one August to the next is worth a dated photo and a measurement.
A gap beside the slab or a void under it

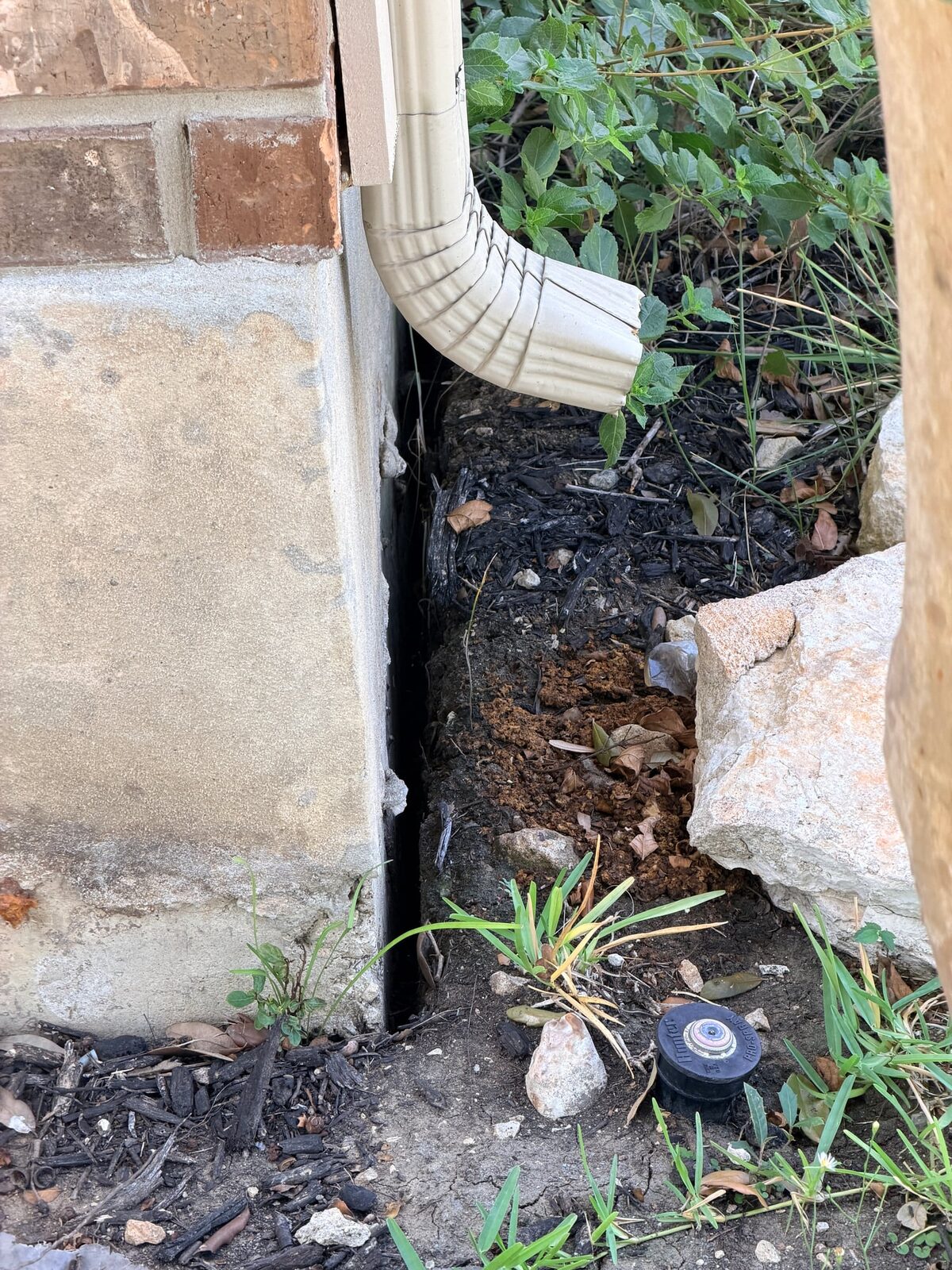

Look closely at the shape of the opening, because two different things get called a gap. The shrinkage gap is a vertical seam along the face of the beam. Push a rod or a long screwdriver into it and it runs straight down, with soil still under the concrete. A void runs sideways under the slab. The rod slides in horizontally, the concrete above it sounds hollow when you tap it with a hammer, and sometimes you can see daylight under the edge.

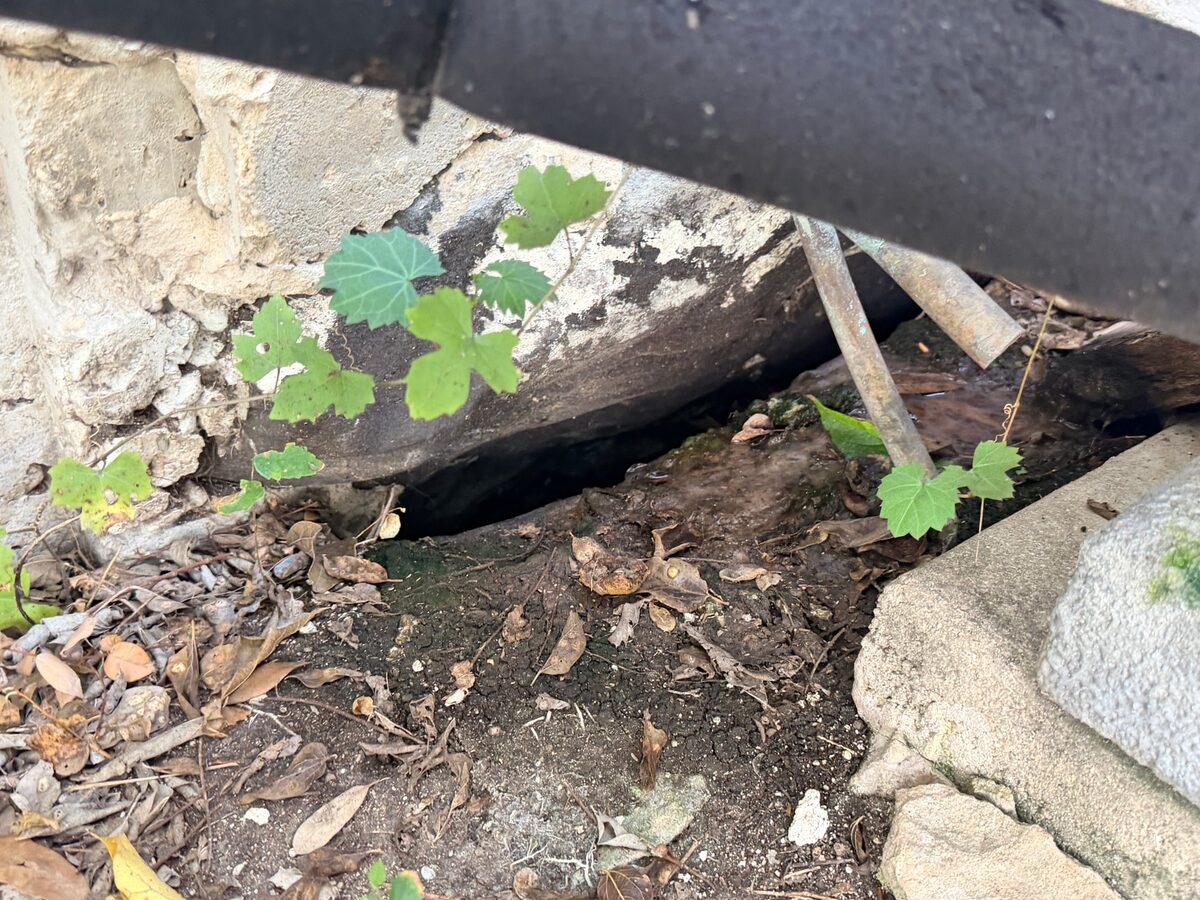

A void is not the weather. Soil does not leave from under a slab by drying. Moving water carries it out, either rain running under the edge from a downspout or a bad grade, or a plumbing leak washing it out from inside. That one needs the water traced before anything goes back in the hole, and our guide on how to fill holes around a house foundation covers the rod test and the fill that lasts.
When the gap means the house moved
A gap in the dirt cannot tell you whether the slab moved. The house can. When the clay under an edge shrinks far enough, the slab follows it down and the frame above it racks. Look inside on the same side as the gap. Diagonal cracks leaving the top corners of doors and windows, doors that started sticking at the top corner, a floor that runs downhill toward that wall, and stair-step cracks in the brick outside are the company that makes a soil gap worth measuring.
The Foundation Performance Association, a Houston group of engineers and foundation professionals, sorts these signs the same way in its guidelines for evaluating foundation movement. Cracks and separations in finishes are the mildest category of distress. Doors that stick or will not latch and floor slopes you can notice walking across a room are the next one up, because they change how the house works. One hairline crack with a gap outside is a monitoring job. Two or three of those signs clustered at the corner with the gap is a measurement job.
Two patterns get our attention fastest. A gap that is wide on one side only, usually under a big tree or along the sunny west wall, means one edge is drying faster than the rest of the slab. And a gap beside a corner that is also cracking inside points at a single corner sinking. The full mechanism is in why drought causes foundation damage.
What to do about soil pulling away from the foundation
Start with water, applied the right way. The goal is steady moisture in the strip of soil along the slab, not wet soil. A soaker hose laid on the ground about 12 to 18 inches out from the slab, on a timer and running on every side of the house, keeps that strip from swinging between soaked and bone dry. Start early in the dry season, before the ground cracks open, and shut it off after a real rain. Run times and how to check your soil are in should I put a soaker hose around my foundation.
Do not pour water into the gap. The Foundation Performance Association's maintenance and inspection guide is direct about it. In long dry spells, if the soil cracks and pulls away from the foundation, do not water directly into the gap. Water poured into the seam runs straight to the bottom of the beam, soaks the clay under the edge, and can lift the very corner you were trying to protect. Water the ground beside the gap and let the clay close it from the outside in.
Do not fill it yet either. Sand, gravel and potting soil hold the gap open when the clay swells back, and they give the next storm a channel down the side of the slab. Concrete and spray foam are worse, because they leave a rigid plug the clay pulls away from again. Wait until the rains have closed the seam as far as it will go. Then top up any low strip with clay fill, packed firm, and finish with a slope away from the house.

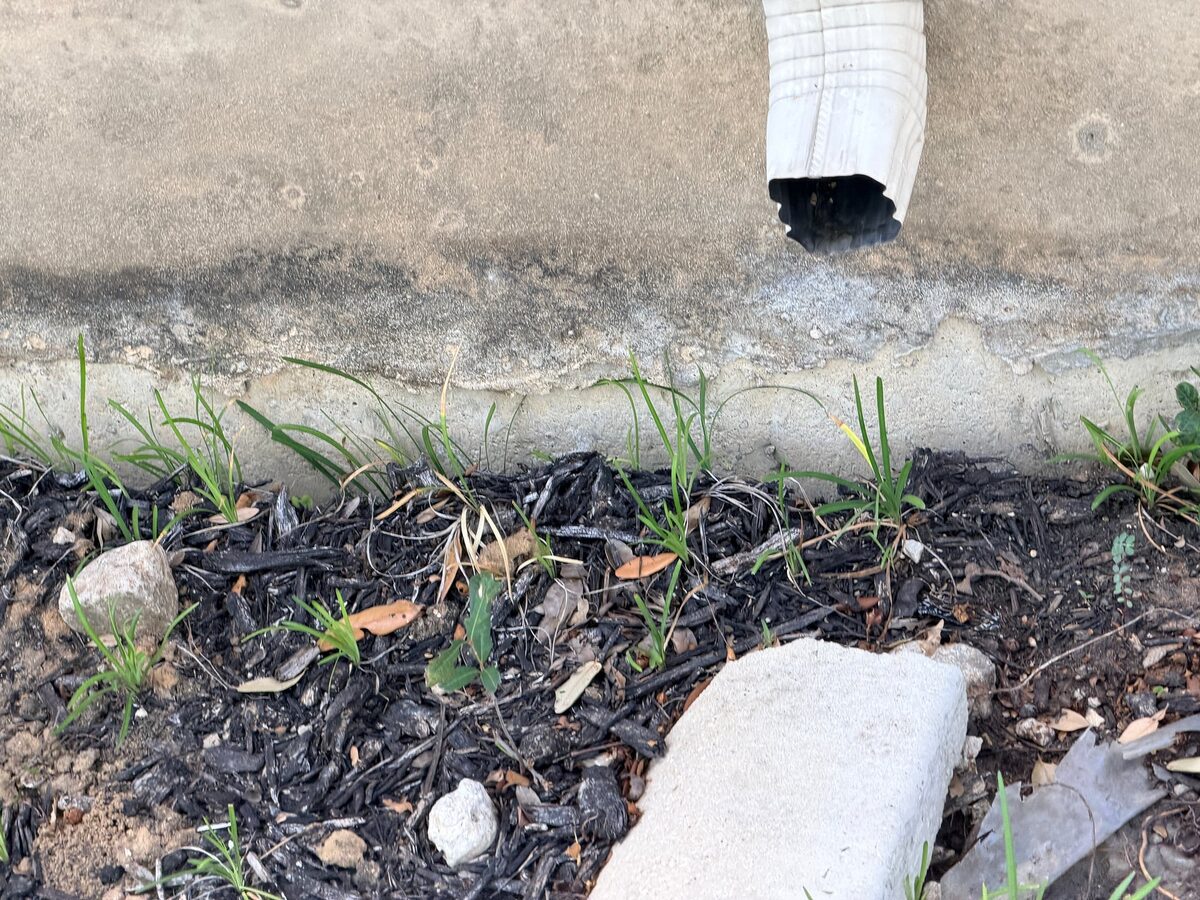

Get the roof water out of that strip. A downspout that empties at the wall soaks one corner every storm and leaves it to dry harder than the rest in August, which is how one side ends up with the widest gap. Run the extensions at least six feet out. The same guide asks for five to ten feet and for ground that falls about an inch per foot over the first five feet, and the code San Antonio adopted, section R401.3 of the residential code, asks for at least 6 inches of fall within the first 10 feet. A mulch bed or ground cover reaching about five feet out also evens out how fast the soil dries, as long as it stays below the top of the slab edge.
Big trees make the gap on their side. A mature shade tree can drink more water on a hot day than a hose puts back, and in a drought it takes it from under your slab edge. Give the tree side more watering time rather than less, and check the tree distance guide before planting anything new near the house.
On a pier and beam house the same shrinking shows up as a gap along the perimeter beam or at the base of the skirting. It matters less there, because the floor rides on piers rather than on the soil at the edge, but the interior piers still sit in that clay. Keep the watering and drainage the same.
What we check when the soil has pulled away
The free inspection starts outside. We walk the perimeter, measure the gap where it is widest, note where every downspout lets go, check the grade, and look for voids under the slab edge. Inside, we read the floor with a ZipLevel altimeter at 40 or more points to a tenth of an inch, which turns a feeling about a sloping floor into a map of where the slab sits. That map decides the answer. About a third of our inspections end with no repair needed, and a summer gap with level floors behind it usually lands there, with a watering and drainage plan instead of a quote.
When the map does show an edge that has dropped and keeps dropping, the fix is support below the clay that moves. We install steel and hybrid piers, pressed down to load-bearing ground, with a lifetime transferable warranty on the piers and a performance follow-up inspection every year after. Drainage correction often goes with it, priced as its own line, because piers hold the edge where it is while steady moisture keeps the rest of the slab calm. To see how much your own ground swings, our foundation risk map scores any US ZIP code from USDA shrink-swell data.
The inspection is free in Bexar, Travis, Williamson, Hays, Comal, Guadalupe, Kendall, Medina, Bastrop and Caldwell counties. Book it below or call (210) 816-0034.
