What Causes Cracks Other Than Foundation Movement

A new crack over a doorway is one of the most common reasons homeowners call us, and it is worth saying plainly: a crack by itself does not prove your foundation is moving. The Foundation Performance Association maintains an entire technical paper on distress that gets mistakenly attributed to foundation movement, because so much of the cracking a house develops has nothing to do with the slab underneath it. Houses are built from materials that shrink, swell, and move with heat and humidity on their own. Some cracking is just a building being a building.

This page is about those other causes. If you have already decided the foundation is the suspect and you want the severity checks, the width thresholds, and the monitoring routine, those live in how to tell if foundation cracks are serious. Below are the everyday causes that are frequently not the foundation, then the way the call actually gets made, and finally the cracks that do earn a closer look.

Cracks that often are not the foundation

The Foundation Performance Association's list of misattributed distress lines up closely with what we see on inspections. A few patterns come up again and again.

Thermal movement in masonry. Brick and mortar expand in heat and contract in cold, and a long masonry wall with too few expansion joints will crack from that cycle alone. These cracks tend to run fairly straight and hold a uniform width up the wall, and they open and close a little with the seasons. The foundation can be perfectly level while this happens.

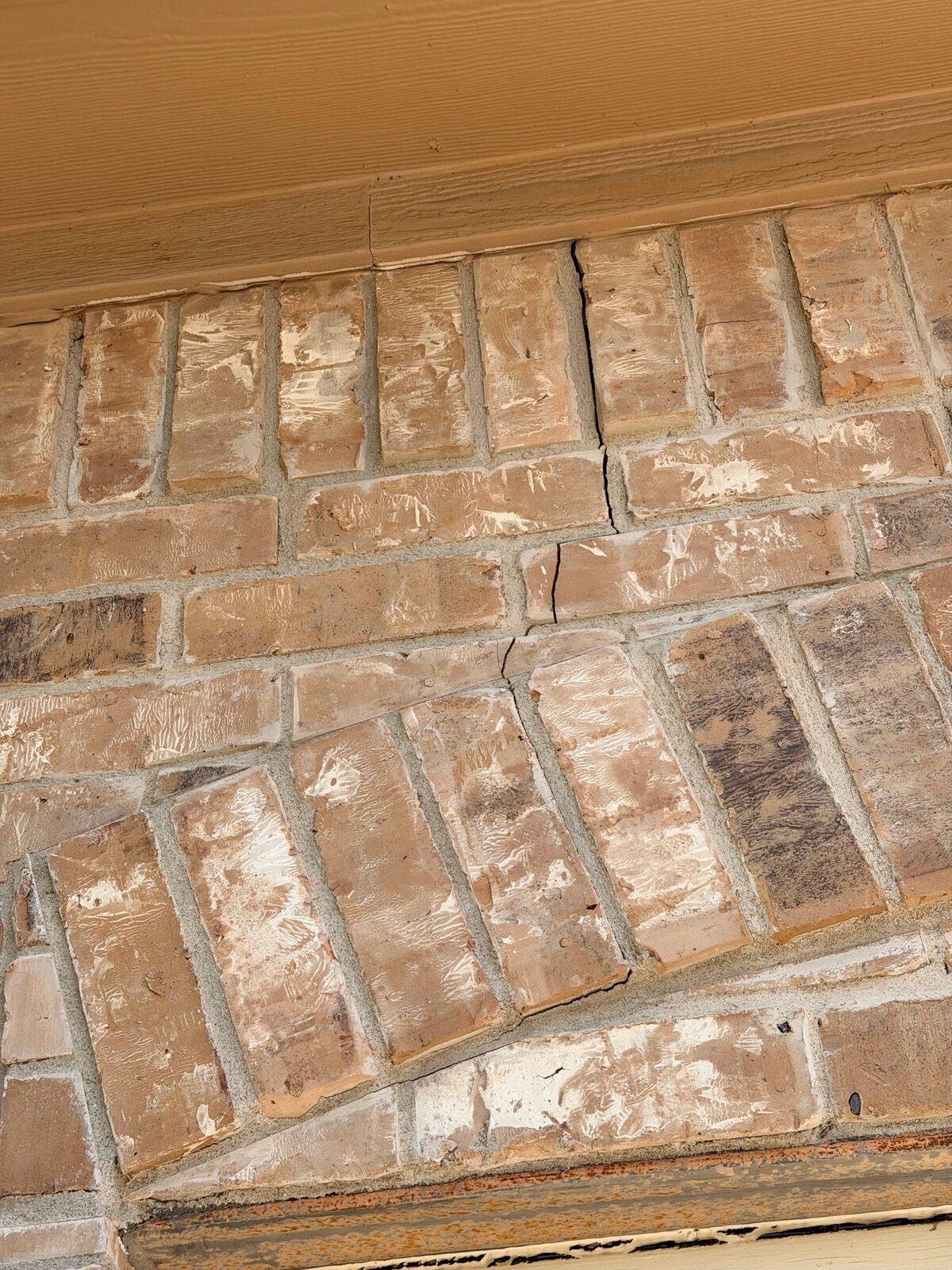

Undersized or deflecting lintels. Over a wide masonry opening, most often a garage door, a steel or concrete lintel carries the weight of the wall above it. If that lintel is undersized or simply deflects under load, cracking shows up at the middle or the ends of the opening. The Foundation Performance Association flags this specifically, and the fix is to reinforce or replace the lintel, not to pier the house.

Concrete shrinkage during curing. Concrete shrinks as it cures and gives off water, and that shrinkage produces fine cracks in slabs, flatwork, and stucco. This is why a driveway or patio develops hairlines in its first year, and why control joints exist. It is a property of the material, not a report on your foundation.

Wood and drywall movement. Framing lumber shrinks as it dries out over the first years of a house, and drywall responds to humidity swings. The result is hairline cracks that show up at the upper corners of doors and windows and along ceiling lines. Nail pops and taped-seam cracks belong in the same family. Central Texas humidity moving from a wet spring to a dry summer is enough to open and close these on its own.

Why cracks show up at doors and windows first

There is a reason so many cracks appear at openings even when the foundation is fine. A door or window is a hole in an otherwise continuous wall, and the material around a hole carries stress in a concentrated way at its corners. Whatever small movements the house makes, from thermal cycling to framing shrinkage to a lintel flexing, the corners of openings are where that movement finds its release. So a crack angling up from a window corner is a normal place for a wall to relieve stress, and on its own it does not tell you whether the cause is the foundation or the framing.

How engineers actually make the call

Since the crack alone is ambiguous, the profession does not rely on it. The Foundation Performance Association's guidelines for evaluating foundation movement are built around measuring the floor, not eyeballing the walls. The core tool is a relative floor-elevation survey: a set of height readings taken across the floor that show how the slab actually sits.

From that data, the guidelines separate two different things a foundation can do. Deflection is bending, where the structure curves because one part has moved relative to its neighbors. Tilt is rigid rotation, where a section leans as a whole without bending. They are distinct mechanisms and they matter differently, which is why a good evaluation names which one is happening rather than lumping all movement together. The guidelines even put numbers on it: one suggested limit for deflection is the span length divided by 360, and tilt has its own separate threshold. A crack does not carry any of that information. A measured floor does.

This is also why two inspectors can look at the same crack and only agree once they have readings. The crack is one input. The elevation survey, the pattern across the whole house, the drainage, and the history are the rest. On expansive clay, where the soil itself swings the slab up and down through the seasons, measuring is the only way to separate a real problem from ordinary seasonal motion.

The cracks that do earn a closer look

None of this is a reason to shrug off every crack. Some patterns genuinely warrant a measurement, and the move is to get them read rather than to worry or to dismiss them. Watch for a crack that keeps widening over months rather than holding steady, a stair-step crack in brick that grows toward a building corner, any crack wider than about a quarter inch, doors or windows that start sticking as a crack opens, and cracking that pairs with a floor you can feel sloping. Our guide to telling whether foundation cracks are serious walks the specifics, and stair-step brick cracks get their own page because they are among the more telling patterns.

How to get an objective reading on your crack

The whole point of this article is to take the fear out of a crack without talking you out of caution. A crack is a prompt to get objective data, and the data is cheap to get. Our elevation survey is free, it reads your slab in about an hour, and a real possible outcome is that your house is fine and the crack is cosmetic. One inspection in three ends with no repair needed, and we would rather tell you that than sell you a repair you do not need. If the readings do show movement, you will know exactly what kind and how much, which is the only basis for deciding what to do next.
