How a House Is Lifted During Foundation Repair
THE LIFT IS A LOOP OF FOUR MOVES
PRESS · PIERS TO REFUSAL
Steel or hybrid sections go down through hand-dug pits until the soil refuses another inch. Nothing has lifted yet.
LOAD · RAMS TAKE THE WEIGHT
A ram at each pier head extends until it carries the house. From here the pier holds the load, not the clay.
RAISE · TENTHS AT A TIME
The rams along the settled run come up together in small stages, so the section rises as a plane, not a point.
CHECK · RE-SHOOT THE MAP
Elevations get re-read between stages and the next move comes from the numbers. The loop repeats until the readings sit in tolerance.
A big recovery totals an inch or two, applied over a few hours of these loops.
A house is lifted during foundation repair by hydraulic rams pushing off piers that were first driven to load-bearing depth, and it rises in stages of fractions of an inch, not in one dramatic hoist. The phrase jacking up a house makes people picture a structure in the air on timber cribbing. The real thing is closer to surgery. The settled section comes up a tenth of an inch at a time, the crew re-measures the floor between stages, and a big recovery on the worst corner totals an inch or two over a few hours. This article walks the lift itself, the equipment, the staging, what it sounds like from the kitchen, and why the slowest crew is the one doing it right.
The jacks are rams, and they push off the piers

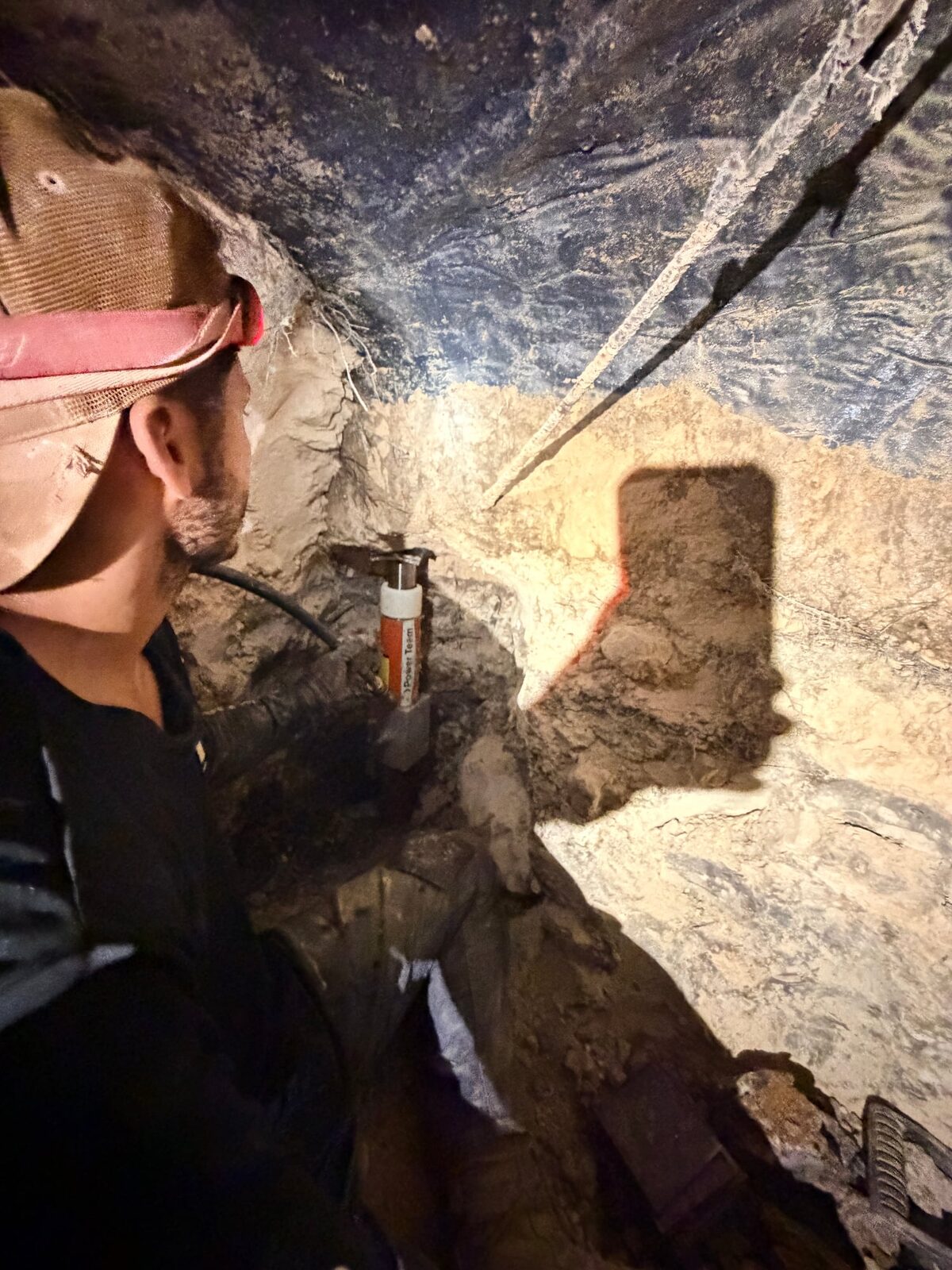

Nobody slides bottle jacks under a slab. The lifting tool on a foundation job is a hydraulic ram, a steel cylinder fed by a portable pump through high-pressure hoses, seated between the top of a pier and the underside of the grade beam. The pier is the launch pad. Before any lifting is possible, steel or hybrid pier sections get pressed down through hand-dug pits until they reach refusal, the depth where the soil will not let them advance another inch. The pressing itself is the proof test, because on the way down every pier has already carried more than its share of the house. We install steel and hybrid piers only, and the reasons we retired concrete-only piers are on the concrete pier explainer.
With the pier at depth, the ram extends against the foundation. The pier below it cannot go deeper, so the only thing free to move is the house above. That is the entire trick. The same pump that pressed the pier powers the lift, which is why there is no crane on a foundation job, no house movers, and usually nothing in the yard louder than the pump cycling.
The lift runs in stages measured in tenths
Rams get set at every pier along the settled run and raised together, so the section comes up as a plane instead of hinging at one point. Each stage is small, a fraction of an inch, and then everything stops. A technician re-shoots the floor elevations at reference points inside the house and compares them against the map from the inspection, the crew tries the doors nearest the run, and only then does the next stage begin. The plan is written in tenths of an inch, and the finish line is the house's own plane, readings back inside normal construction tolerance rather than a laser-flat floor.
The lift is one afternoon inside a longer job. Most of the schedule goes to digging the pits by hand and pressing the piers, and the rest of that job, the dig, the pressing, the backfill and cleanup, is walked step by step in the foundation repair process. The lift is the short, quiet payoff at the end of it. Once the readings land where the plan says, each pier gets locked off at the new elevation and the rams come out of the pits.
What you see and hear from inside the house
From the curb, nothing appears to happen. You will not watch your house go up, because a tenth of an inch is invisible from ten feet away. What you notice is sound. The frame creaks and pops as door openings un-rack, and that is the house un-bending, not the house breaking. Somewhere in the middle of the afternoon a door that has dragged for two years clicks shut on the first try. Hairline drywall cracks that opened while the section settled narrow, and some close entirely. The pump hums in the yard for a few seconds per stage, then quits while the measurements happen.
You can stay home through all of it. Water and power stay on, the crew works from the pits outside, and the most involvement you get is being invited to walk the floor and try the doors before the final lock-off. Homeowners expect lift day to be dramatic and find it dull. After many years of standing in yards while rams do their work, I can tell you dull is exactly what a good lift looks like.
Why slow beats fast
A slab is one connected piece of concrete with a house framed on top of it. Raise one point ahead of its neighbors and the slab has to bend to follow, and concrete that is strong in compression is weak in bending. Brick veneer, tile, and plaster are less forgiving still, since rigid finishes tolerate very little distortion before they crack. A staged lift keeps every part of the structure inside the distortion its finishes can absorb, and it lets the frame ease back into shape instead of being snapped there.
Speed also outruns knowledge. Between stages the readings tell the crew exactly what moved and by how much, and a fast lift is a blind one, steering by feel toward cracked tile. Slow is also what lets us stop on purpose. On an older house that spent decades settling into its shape, the readings sometimes say the last half inch would cost more in broken finishes than it returns, so the lift ends at stabilized and substantially recovered. Whether your readings justify a lift at all, and what the whole service costs, is the territory of the house leveling page. The short version is that piers run $600 to $1,000 each installed, pier count drives the bill, and the lift itself adds hours, not thousands.
When lifting is the wrong answer
Some houses should not be lifted, and a good inspection says so before a ram is ever set. A slab that is heaving, pushed up by swelling clay or a plumbing leak, is already higher than it should be, and lifting equipment pointed at it makes the distortion worse. Which direction your floor actually moved is what settlement vs heave sorts out. Movement that has already stopped on a house with brittle finishes is often better pinned where it sits, piers to refusal and no raise at all. Every repair path that skips the lift, stabilize-in-place piering, drainage correction, crawl-space adjustment, is covered in can you fix a foundation without lifting the house, the other half of this decision.
The choice comes from measurements, not from a sales script. Our ICC-certified inspectors shoot the elevation map for free, and about a third of those inspections end with no repair needed. When a lift does happen, the piers under it carry a lifetime transferable warranty, and a year later we come back for a performance follow-up inspection to re-shoot the map, so the after readings get checked against time instead of memory.
