Diagonal Drywall Cracks in Cibolo

Why a Cibolo crack can open in August and close by March

The mapped series for Cibolo is Tinn. It carries a very high shrink-swell rating and a linear extensibility around 9.8 percent. Tinn is creek bottom clay. Low ground takes water fast and parts with it slowly, so it carries its swell late and then gives it up hard. A slab edge riding a swing that wide leans rather than drops clean, and every door and window framed into the walls above it loses a little square at the corners. Drywall tears at those corners first because that is where the stress gathers. Houston Black is in the area as well and gives up volume the same way. That is why a Cibolo house gets a wide seasonal swing rather than a gentle one, and how Texas clay soil behaves is the longer version of the story.

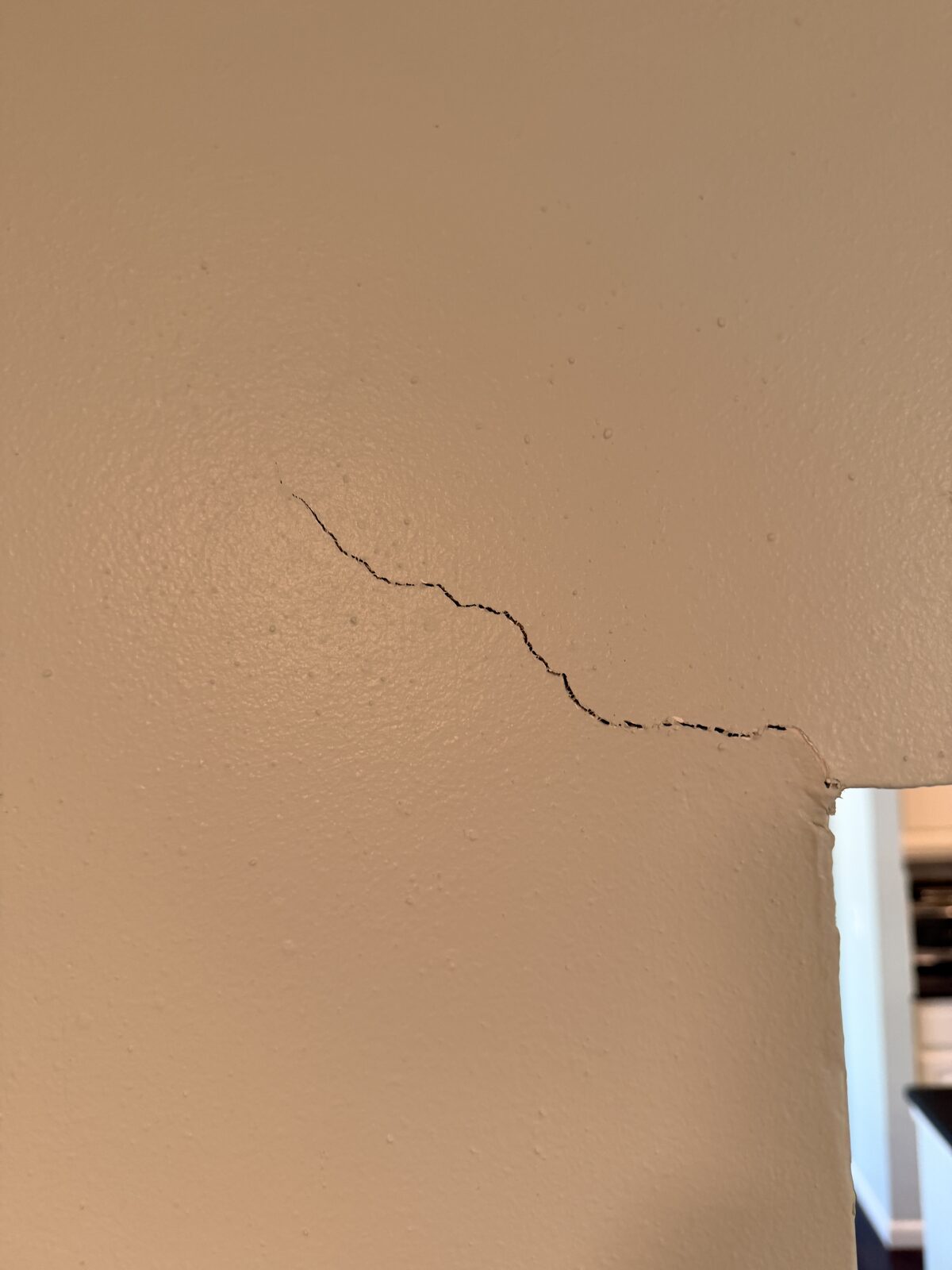

The practical consequence for your walls is that a slab edge in Cibolo is frequently not settling once and stopping. It is riding up and down. On the down stroke the opening above it goes slightly out of square, and the paper over the drywall corner tears at an angle because that is where the stress concentrates. On the up stroke the crack narrows again, sometimes enough that a fresh coat of paint hides it until the following summer. Paint that keeps splitting in the same spot year after year is a measurement you have been taking without meaning to. Why the corner tears and not the middle of the wall is pure geometry, and we covered it in the guide to drywall cracks above doors and windows. This page is about what Cibolo ground does to that geometry.

The year three to seven crack debut in newer subdivisions

Much of Cibolo is young, slab-on-grade, and built on pads cut into one side of a lot and filled on the other. Fill keeps consolidating for years after the concrete cures, and that movement is slow and one-sided. It does not breathe with the season the way native clay does, which is exactly what makes it easy to spot once you are logging the crack. Cracks traceable to pad consolidation tend to surface between the third and seventh year, and they widen a little each year rather than returning to a baseline.

That window lands at an awkward time, because builder structural coverage usually runs out around the same point. If yours is close to the end, get a dated elevation reading on paper while you still have leverage. A builder answers to numbers with a date on them, not to a description of what the hallway looked like two summers ago. The Cibolo service area page covers the rest of the local symptom list and the neighborhoods we work in most.

Which cracks in a Cibolo house earn a measurement

Three things move a crack from watch to measure. First, company. A single angled crack over one door is weak evidence; three or four of them clustered near the same part of the house is a pattern. Second, corroboration underfoot, because a frame that racks far enough to tear drywall usually binds at a top corner and leaves the floor reading low nearby. Third, direction over time, which is the one thing only the crack log can give you. What does not move a crack up the list is length. Long cracks look alarming and often turn out to be a tape seam failing along the joint between two sheets of wallboard, which is a finish problem with a finish fix.

Worth saying plainly. On roughly a third of the houses we measure, the answer is nothing to fix. That is not a sales posture, it is what the readings keep saying on ground that moves seasonally. Plenty of Cibolo homeowners get a dated baseline, a note that the floor is inside tolerance, and nothing at all to buy.

What the free inspection settles

An ICC-certified inspector reads the cracks you point out, then runs a floor elevation survey across the whole house so the drywall evidence has numbers behind it. You get a color-coded map of where the floor actually sits, a written verdict either way, and a dated baseline you can re-check against next season. The free inspection stays free whichever way the numbers land, and there is no obligation attached to it.

What the repair looks like when the slab is the cause

When the survey confirms the drywall is reporting real movement, the fix is piers under the low sections. We install steel piers and hybrid piers, at $600 to $1,000 each installed, and nothing else. Concrete pressed piers are not part of our lineup and never have been. Every pier we set carries a lifetime transferable warranty, and we re-check the numbers at a performance follow-up inspection each year. The cost guide has the full math, and steel pier installation walks through what a working day on site actually looks like. Patch the drywall last, after the lift and after a season on the new readings, so you tape it once instead of twice.
