Foundation repair · Manor, TX

Foundation repair in Manor, the eastern prairie's boom town.

Foundation repair in Manor, TX comes down to new slab homes meeting deep Blackland clay. Manor is where Austin's growth ran east onto the open prairie, thousands of new houses in a short span on ground that had only ever carried crops, and the geology here is the corridor's most uniform, no limestone seams and no hills, just expansive black soil all the way down.

1900s–60s1980s–90s2000s–nowSAME ANCIENT CLAY UNDER ALL THREESTABLE STRATA

Uniform ground makes Manor's foundation story predictable: engineered pads performing well at the center, edges cycling with the weather, and the year 3–7 symptom window arriving on schedule across each subdivision phase as builder warranties wind down.

AREAS WE SERVE IN MANOR: SHADOWGLEN, PRESIDENTIAL MEADOWS, WILDHORSE CREEK AND WILD HORSE RANCH, STONEWATER, AND WHISPER VALLEY OUT ALONG THE US 290 AND SH 130 CORRIDORS, MINUTES PAST AUSTIN ON OUR DAILY ROTATION.

What we see in Manor

The local patterns, specifically.

LOCAL PATTERN 01

Phase-by-phase symptom waves

Subdivision phases built in the same year hit their first-drought window together. When one street starts calling, its build-year cohort follows. We map it like weather.

LOCAL PATTERN 02

Downspout-corner settlement

The corner taking roof water all spring dries hardest in August. The radiating crack cluster that follows is Manor's most common repair scope, and its most preventable.

LOCAL PATTERN 03

Builder-warranty documentation runs

Most of Manor is inside structural warranty windows. A dated elevation map settles it either way, and it has to exist before the window shuts.

LOCAL PATTERN 04

Prairie-wind drying on exposed edges

Open-prairie lots without tree cover or fencing dry faster on their windward edges, a subtle factor that shows up consistently in our Manor elevation data.

The local soil: Deep, uniform Blackland prairie clay, the same gumbo as Hutto's, without even the relief of soil variation. Slab centers stay protected and stable; perimeters cycle with every wet-dry swing. Edge moisture management (gutters, grading, soaker schedules) is the entire preventive playbook.

Straight from the soil survey

The USDA maps the dominant soil under Manor as Houston Black, very high shrink–swell (linear extensibility ≈ 12%). Houston Black on open prairie dries from the edges inward. Nothing shades it, so a drought reaches the soil under a slab edge faster here than it would under a tree line.

See the Houston Black soil series at USDA

The ground on the open prairie

Foundation repair in Manor sits on deep Houston Black clay with no relief in the soil.

Manor lies about twelve miles northeast of Austin, where the metro's growth ran east onto the open Blackland Prairie. The USDA maps the dominant soil here as Houston Black clay, the same very-high shrink-swell series under Pflugerville, and one of the most expansive soils in Texas. Ground that had only ever carried crops now carries thousands of slab homes, and the geology under them is the corridor's most uniform: no limestone seams, no hills, just deep expansive clay all the way down. That uniformity means Manor movement is predictable. The wet-dry cycle drives nearly all of it.

Slab centers stay protected and stable; the perimeters do the cycling. Drought pulls the exposed edges down, and Manor's open, treeless prairie lots dry faster on their windward edges than shaded older suburbs do, a subtle factor that shows up consistently in our elevation data here. The first hard storm heaves the re-wetted clay back unevenly. Edge moisture management (gutters, grading, a soaker schedule in drought) is the entire preventive playbook, and the free elevation survey is what tells you whether the cycling has become real movement.

A boom town on old ground

A quiet railroad town that became one of Central Texas's fastest-growing suburbs.

Manor spent most of its history as a quiet railroad town before, in the span of about fifteen years, becoming one of the fastest-growing small cities in Central Texas, ranked among the fastest-growing suburbs in America in the late 2010s. That growth is almost entirely slab-on-grade subdivisions, which gives Manor a distinctive, cohort-driven foundation pattern: streets built in the same year hit their first-drought window together.

ShadowGlen, the master-planned community that came online with the SH 130 expansion in the 2000s, set the template; Presidential Meadows, Stonewater, and the Wildhorse Creek / Wild Horse Ranch communities followed, and Whisper Valley (a 2,000-acre geothermal-and-solar community whose first phase opened around 2019) represents the newest wave along US 290. Most of these engineered pads perform well; where cut-and-fill met native clay at a lot edge, the seam shows a few summers later. The tell is timing: same-year cohorts share a risk calendar, so when the first neighbor shows movement it's the cheap moment for the whole street to get a dated baseline, objective evidence while builder coverage is still open. Manor anchors the metro's eastern edge, so the same crews and the same free elevation survey run out to foundation repair in Elgin further east on US 290 and down to foundation repair in Del Valle toward the airport, all on the same Blackland clay.

Neighborhood by neighborhood

Manor foundation repair, street level.

ShadowGlen

Manor's defining master-planned community, built out with the SH 130 expansion in the 2000s around its golf course and amenity centers. A decade-plus into the cycle now; downspout-corner settlement on the open lots is the scope we see most.

Presidential Meadows

An affordable single-family community with a pool and parks. Same-year cohorts share a risk calendar here. When one street shows movement, a baseline survey is the cheap move for the build-year neighbors.

Wildhorse Creek & Wild Horse Ranch

Newer subdivisions on the eastern prairie. Young slabs on deep Houston Black clay hitting the year-3-to-7 first-drought window; hairlines are normal, widening diagonals worth measuring.

Stonewater

A 2000s–2010s subdivision on engineered pads. Mostly stable; the earliest cracks appear at construction-era joints and garage returns where placed pads met native clay.

Whisper Valley

Manor's newest wave: a 2,000-acre geothermal-and-solar master-planned community whose first phase opened around 2019 along US 290. Fresh slabs on the front of their first drought cycles; a dated baseline is smart while builder coverage is open.

Our work near Manor

Real foundation repair across Manor and the corridor.

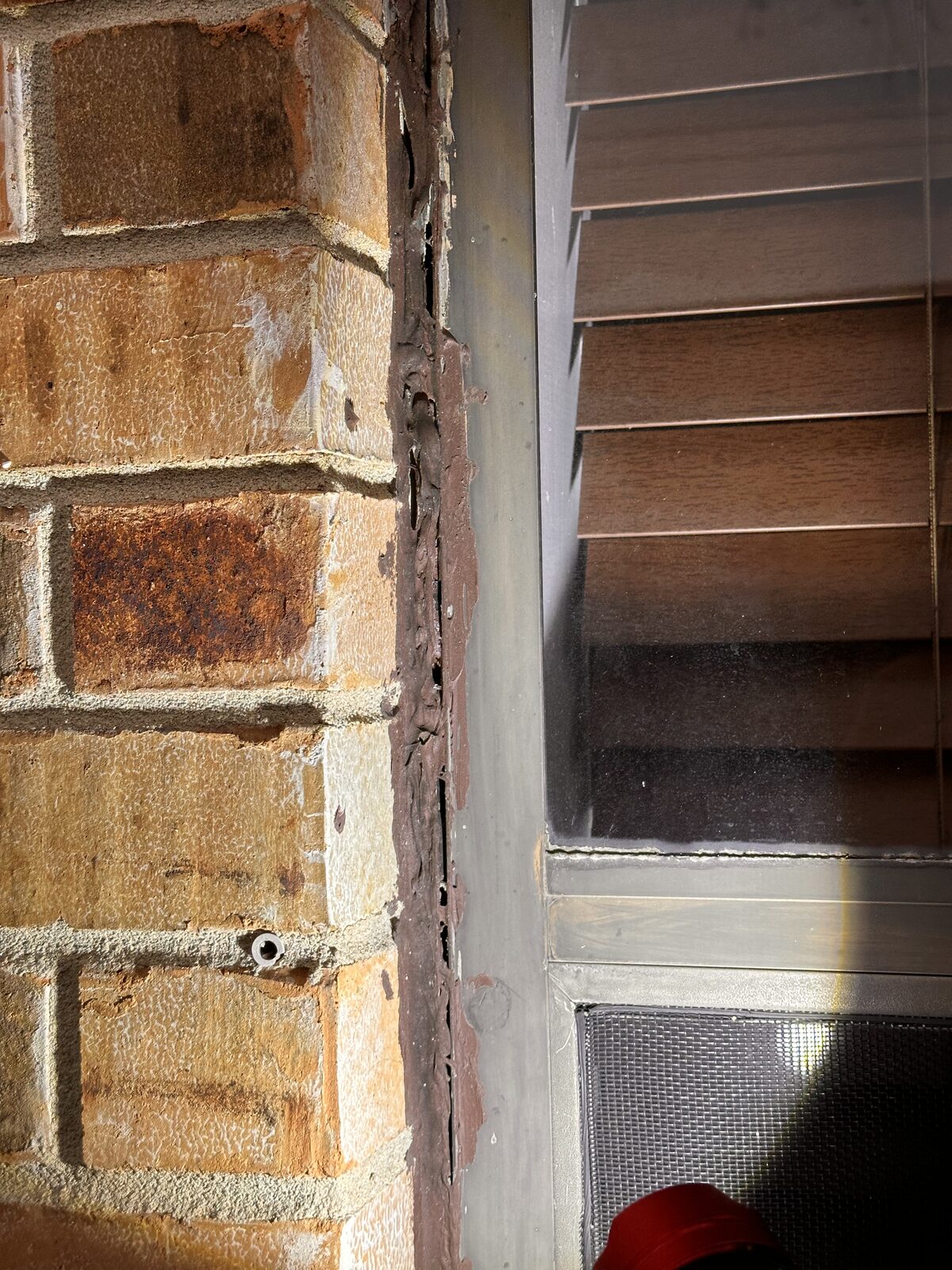

Crack in brick veneer beside window trim at a corner, a common sign of differential foundation settlement
Crack in brick veneer beside window trim at wall corner.

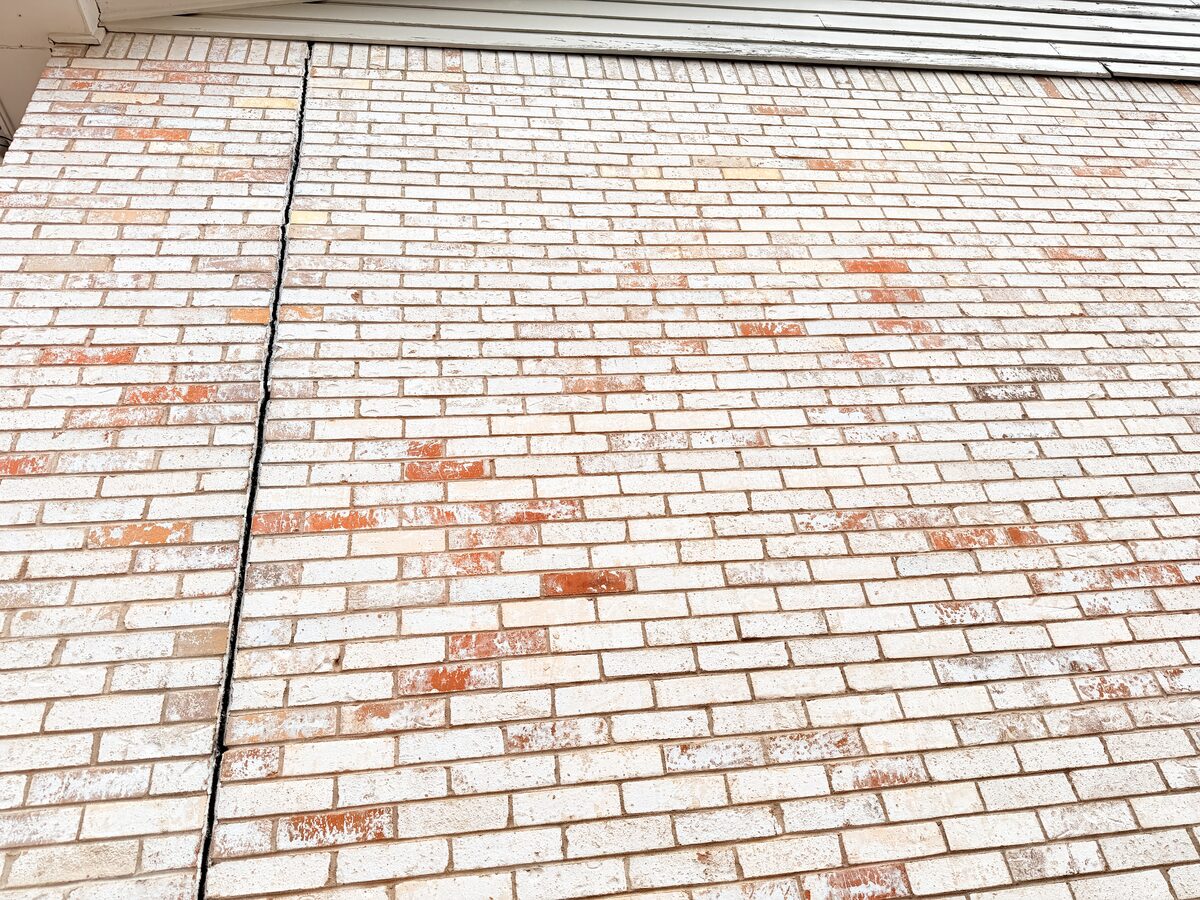

Diagonal repointed crack line descending a brick wall toward the walkway after foundation leveling
Wall and walkway with diagonal crack-repair line running down.

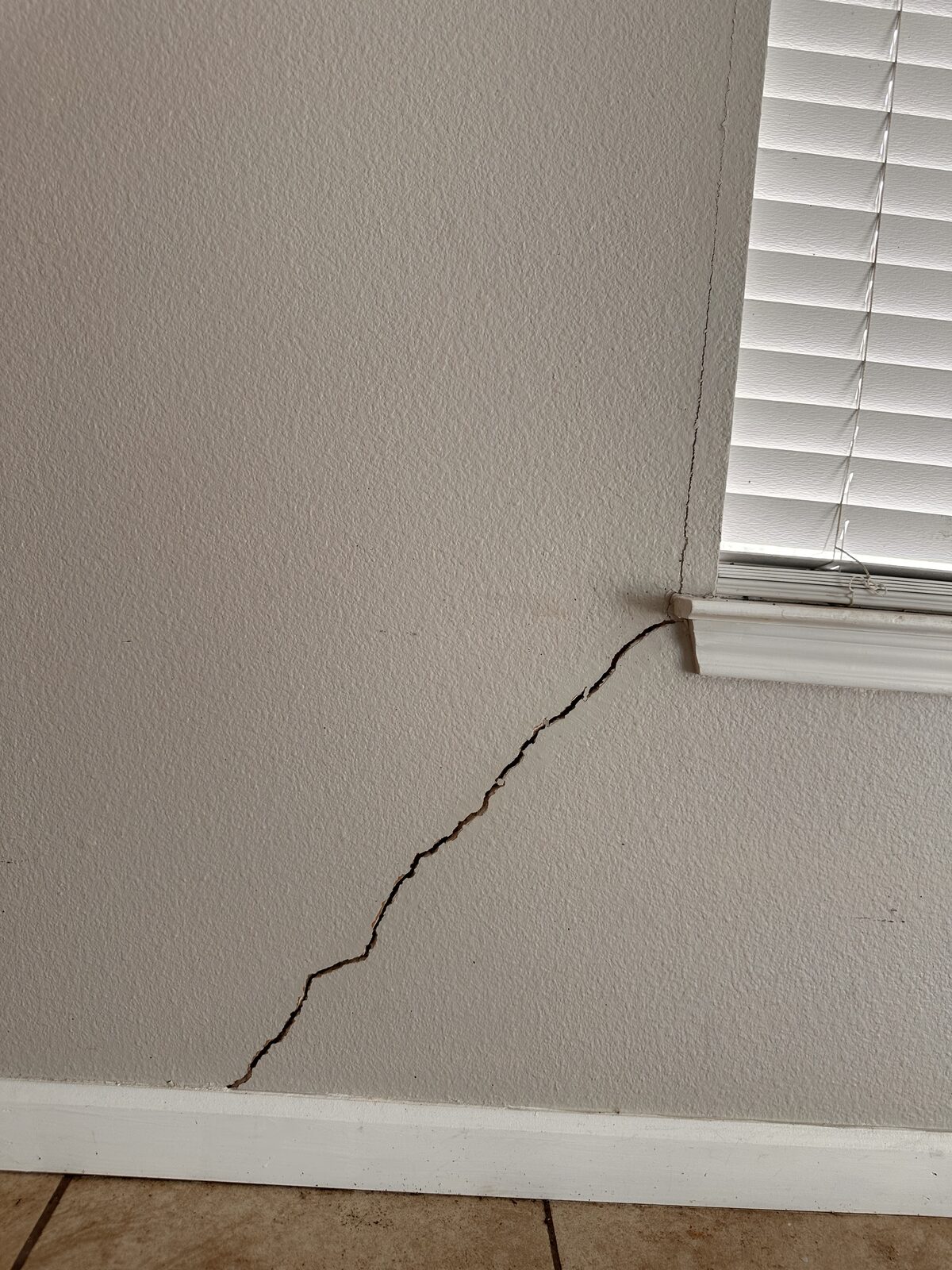

Diagonal settlement crack angling down the wall from a window corner with blinds
Diagonal crack angling down wall from window corner with blinds.

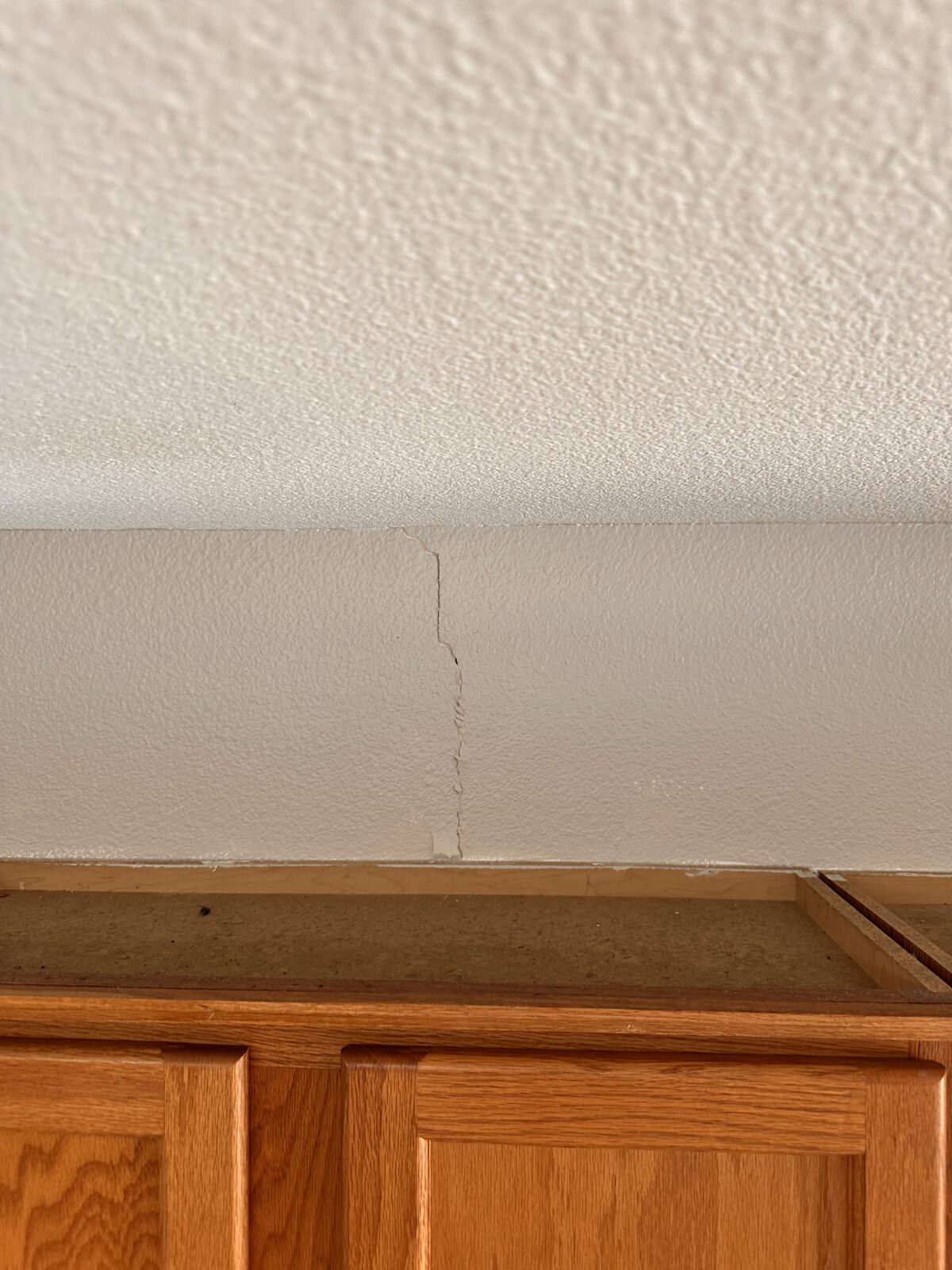

Wall-to-ceiling crack above kitchen cabinets caused by foundation settlement
Wall-to-ceiling crack above kitchen cabinets, opening where the ceiling plane pulls away from the wall.

Your nearest Motmot office

San Antonio (Main Office)

4402 Vance Jackson Rd Ste 206, San Antonio, TX 78230. Call or text (210) 816-0034.

Our main shop at Vance Jackson and Loop 410 runs the San Antonio metro daily and covers the I-35 corridor north to the Austin line.

Manor specifics

Asked by Manor homeowners.

Not worried, just coordinated. Same-year cohorts share the same risk calendar, which actually helps: when the first neighbor shows movement, it's the cheap moment for everyone else to get a baseline survey. Group timing is information, not contagion.
Same formation, similar depth. The difference is exposure. Manor's open prairie lots dry faster at the edges than tree-shaded older suburbs. The playbook is identical; the soaker hose just earns its keep a little sooner.
We provide the evidence layer: dated elevation maps, crack documentation, movement-pattern analysis. You take it to the builder; if they remedy it, ideal. We'd rather lose a job to a warranty than see you lose a warranty to a deadline.
